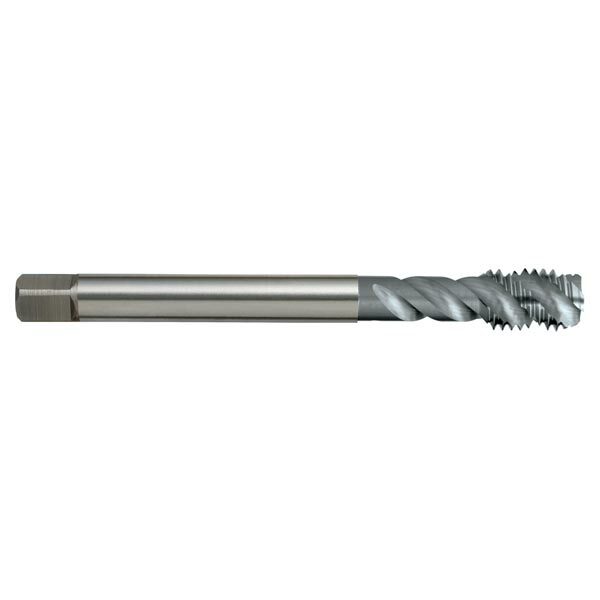

Sutton T6791200 M12 x 1.75 Spiral Flute | AIMS Industrial

Dimensions

• d1: M12
• d2 (mm): 9
• l1 (mm): 110
• l2 (mm): 17.5
• l4 (mm): 10
• Square Size (mm): 7
• z: 3
• Drill Size (mm): 10.2 (drill)
• Pitch (mm): 1.75 (pitch)

Features

• Universal high performance tapping
• PM-HSSE V3 offers superior tool life
• Use in stainless steels and high strength steels up to 850N/mm2
• Deep blind holes
• Depths up to 3 x d1

Specifications

• Designation: VA (for stainless and tough steels)
• Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish: Titanium Carbonitride (TiCN)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R50
• X: als
• Type: Spiral Flute
• Standard: DIN376
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: 6GX
• Lead: Form C / 3 x P/li>

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
• Stainless Steel - Austenitic: Age Hardened
• Stainless Steel – Duplex
• Stainless Steel - Precipitation Hardening
• High temperature alloys - Fe based: Annealed
• High temperature alloys - Ni / Co based: Annealed
