Description
Description

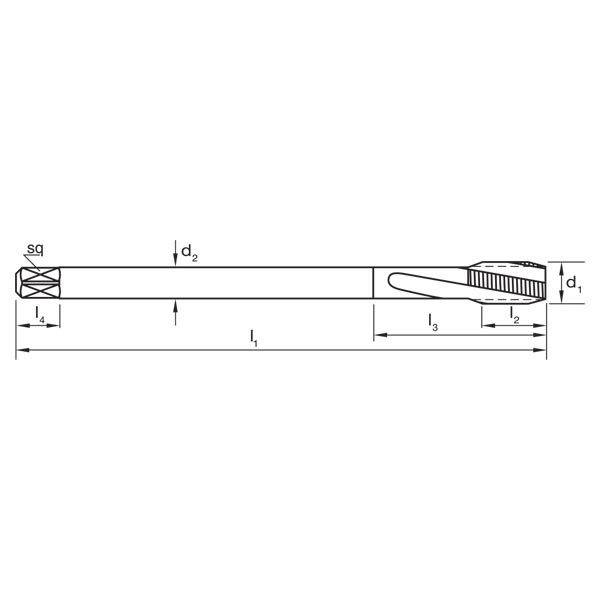

Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 3
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Specifications
Specifications
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 3
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

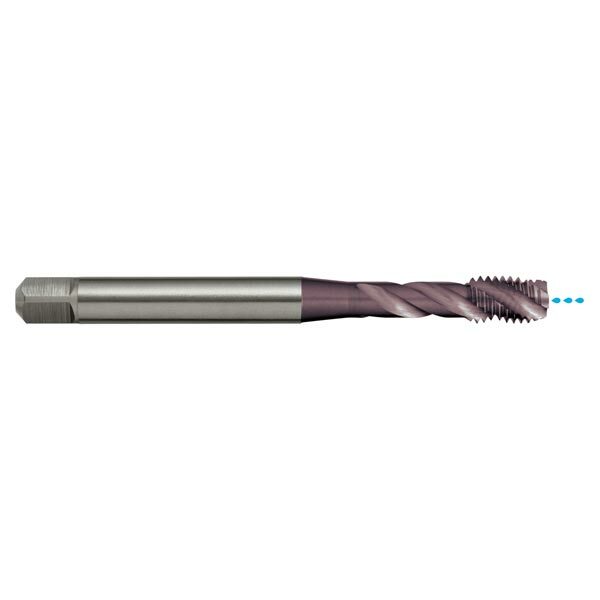

Sutton T230 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
Sutton T230 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
SKU: A0013716
- Wide Range
- Reliable Services
- Proven Trust
Out of stock
The Sutton T230 Metric Spiral Flute Tap by Sutton Tools is a 0 with TiAIN finish. It offers a Drill Size of 10.2 (drill) and is suitable for blind holes.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 3
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Specifications
Specifications
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 3
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T230 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T230 Metric Spiral Flute Tap by Sutton Tools is a 0 with TiAIN finish. It offers a Drill Size of 10.2 (drill) and is suitable for blind holes. |
Regular price
From $235.31
Sale price
From $235.31
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M12,M14,M16,M18,M20
|
Choose your option
Sutton T230 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
Sutton T230 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
SKU: A0013716
Out of stock
The Sutton T230 Metric Spiral Flute Tap by Sutton Tools is a 0 with TiAIN finish. It offers a Drill Size of 10.2 (drill) and is suitable for blind holes.
