Sutton T263 8UN Spiral Flute Tap - R40 VA - Premium HSS 1

Sutton T263 8UN Spiral Flute Tap - R40 VA - Premium HSS 2

Sutton T2632858 8UN 1 1/8 x 8 Spiral Flute Tap - R40 VA - HSSE V3

Sutton T2633175 8UN 1 1/4 x 8 Spiral Flute Tap - R40 VA - HSSE V3

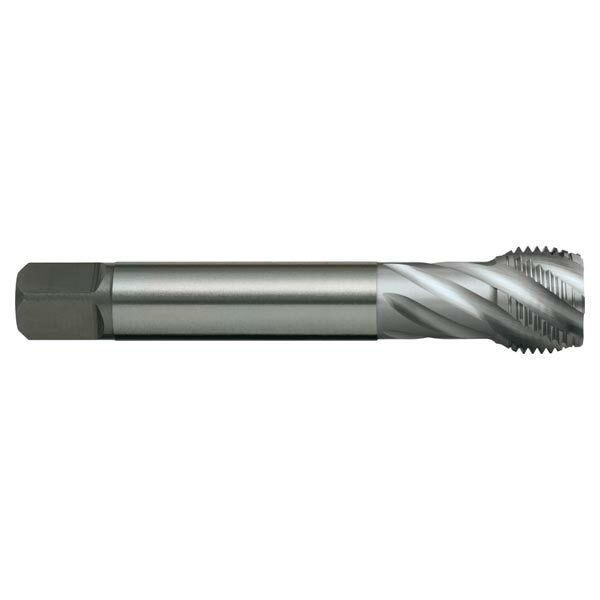

Sutton T2633493 8UN 1 3/8 x 8 Spiral Flute Tap - R40 VA - HSSE V3

Sutton T2633810 8UN 1 1/2 x 8 Spiral Flute Tap - R40 VA - HSSE V3

Sutton T2634128 8UN 1 5/8 x 8 Spiral Flute Tap - R40 VA - HSSE V3

Sutton T2634445 8UN 1 3/4 x 8 Spiral Flute Tap - R40 VA - HSSE V3

Sutton T2634763 8UN 1 7/8 x 8 Spiral Flute Tap - R40 VA - HSSE V3

Sutton T2635080 8UN 2 x 8 Spiral Flute Tap - R40 VA - HSSE V3

Description +

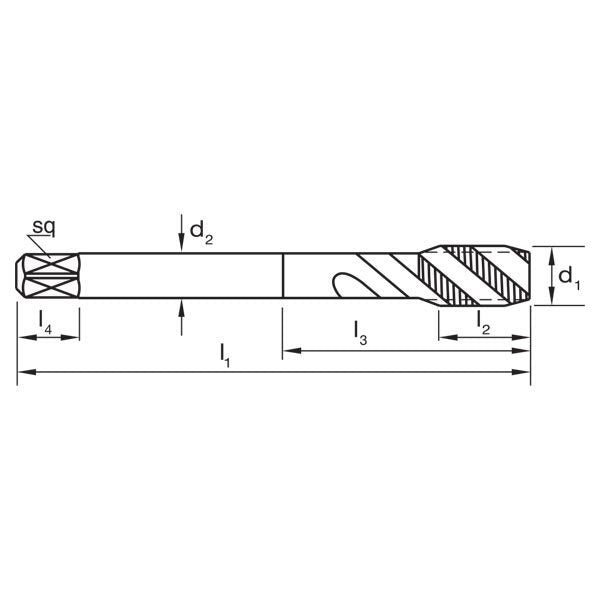

Dimensions

d1 (mm): 28.575
d2 (mm): 22
l1 (mm): 180
l2 (mm): 30
l4 (mm): 21
Square Size (mm): 18
z: 4
Drill Size (mm): 25.5 (drill)
TPI: 8 (TPI)

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 2.5 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: Unified National Form 60Â° (8UN)
Nut Tolerance: 2B
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening

Specifications +

Dimensions

d1 (mm): 28.575
d2 (mm): 22
l1 (mm): 180
l2 (mm): 30
l4 (mm): 21
Square Size (mm): 18
z: 4
Drill Size (mm): 25.5 (drill)
TPI: 8 (TPI)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN2184-1
Thread Form: Unified National Form 60Â° (8UN)
Nut Tolerance: 2B
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel – Duplex
Stainless Steel - Precipitation Hardening

Features & Benefits +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T263 8UN Spiral Flute Tap - R40 VA - Premium HSS

SKU: A0014033

$357.98

Inc. GST

Buy It Now

Available

The Sutton T263 8UN Spiral Flute Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It offers Drill Size 25.5 (drill) and is suitable for synchronous tapping in machine operations.
