Sutton T284 G-BSPF Spiral Flute Tap - R45 VA - Premium HSS Blue1

Sutton T284 G-BSPF Spiral Flute Tap - R45 VA - Premium HSS Blue2

Sutton T2840973 G-BSPF G 1/8 x 28 Spiral Flute Tap - R45 VA - HSSE V3 Blue

Sutton T2841316 G-BSPF G 1/4 x 19 Spiral Flute Tap - R45 VA - HSSE V3 Blue

Sutton T2841666 G-BSPF G 3/8 x 19 Spiral Flute Tap - R45 VA - HSSE V3 Blue

Sutton T2842096 G-BSPF G 1/2 x 14 Spiral Flute Tap - R45 VA - HSSE V3 Blue

Sutton T2842291 G-BSPF G 5/8 x 14 Spiral Flute Tap - R45 VA - HSSE V3 Blue

Sutton T2842644 G-BSPF G 3/4 x 14 Spiral Flute Tap - R45 VA - HSSE V3 Blue

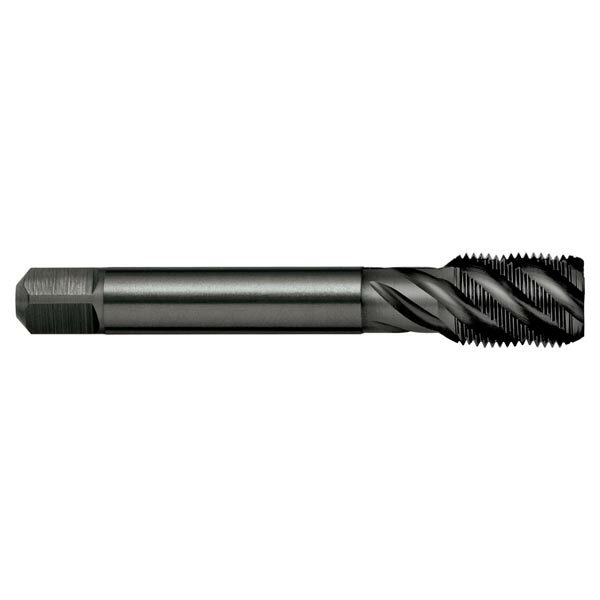

Sutton T2843020 G-BSPF G 7/8 x 14 Spiral Flute Tap - R45 VA - HSSE V3 Blue

Sutton T2843325 G-BSPF G 1 x 11 Spiral Flute Tap - R45 VA - HSSE V3 Blue

Specifications +

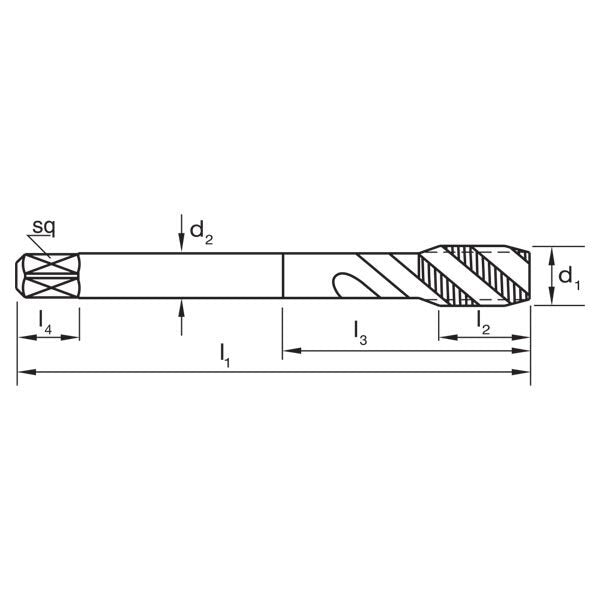

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 4
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Features & Benefits +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T284 G-BSPF Spiral Flute Tap - R45 VA - Premium HSS Blue

SKU: A0014175

Type: Spiral Flute Tap

$331.84

$331.84 ~~$474.06~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton G-BSPF Spiral Flute

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 4
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Features

Use in stainless steels and high strength steels up to 1000N/mm2
Blind holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R45
X: als
Type: Spiral Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex
