Sutton T279 BSPF Spiral Flute Tap - R15 N - Premium HSS Tinite1

Sutton T279 BSPF Spiral Flute Tap - R15 N - Premium HSS Tinite2

Sutton T2790973 BSPF G 1/8 x 28 Spiral Flute Tap - R15 N - HSSE V3 TiN

Sutton T2791316 BSPF G 1/4 x 19 Spiral Flute Tap - R15 N - HSSE V3 TiN

Sutton T2791666 BSPF G 3/8 x 19 Spiral Flute Tap - R15 N - HSSE V3 TiN

Sutton T2792096 BSPF G 1/2 x 14 Spiral Flute Tap - R15 N - HSSE V3 TiN

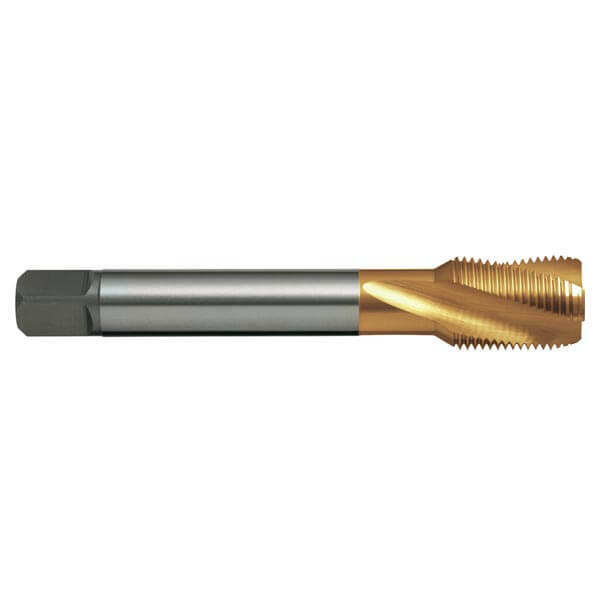

Sutton T2792291 BSPF G 5/8 x 14 Spiral Flute Tap - R15 N - HSSE V3 TiN

Sutton T2792644 BSPF G 3/4 x 14 Spiral Flute Tap - R15 N - HSSE V3 TiN

Sutton T2793020 BSPF G 7/8 x 14 Spiral Flute Tap - R15 N - HSSE V3 TiN

Sutton T2793325 BSPF G 1 x 11 Spiral Flute Tap - R15 N - HSSE V3 TiN

Description +

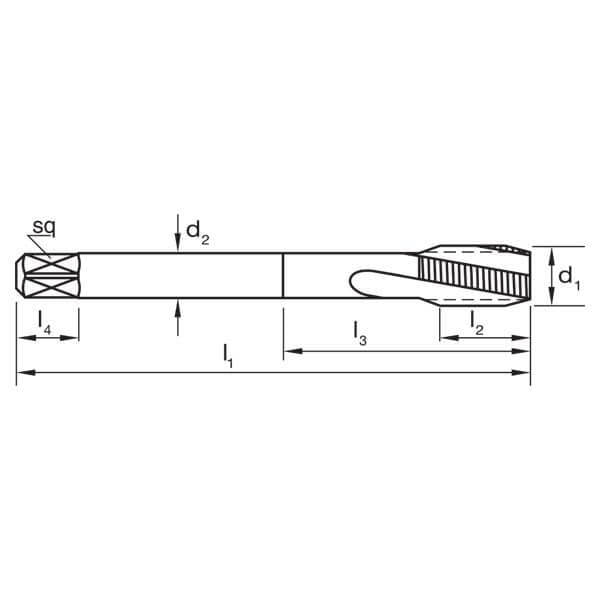

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to 1.5 x d1

Specifications

Designation: N (for normal and general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable

Specifications +

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 3
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Specifications

Designation: N (for normal and general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1.5xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R15
X: als
Type: Spiral Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
Steel - High alloy, cast & tool: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable

Features & Benefits +

Features

General purpose use, materials up to approx. 1000 N/mm2
Blind holes
Suitable for machine operations
Depths up to 1.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T279 BSPF Spiral Flute Tap - R15 N - Premium HSS Tinite

SKU: A0014141

$456.08

Inc. GST

Buy It Now

Available

The Sutton T279 BSPF Spiral Flute Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE-V3). It offers l1 (mm): 125 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
