Sutton T302 1 x 8 TPI Straight Flute Tap GG - HSSE - Plasma Nitride + Steam Oxide
Available

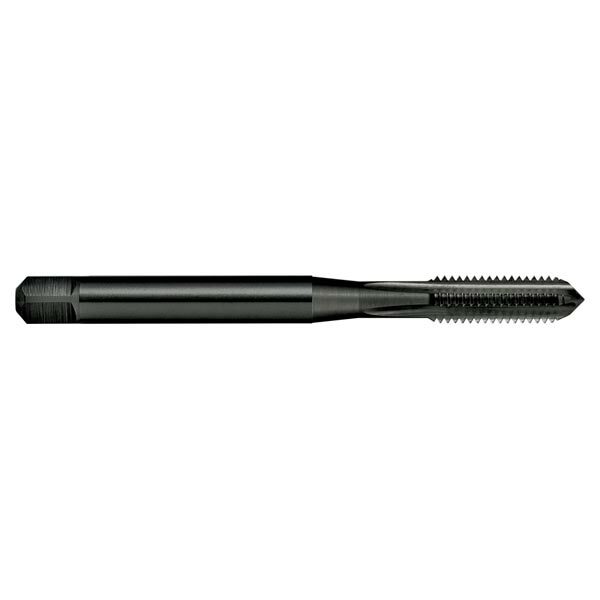

The Sutton T302 is a straight flute tap (GG designation) for UNC threads, made from premium grade high speed steel (HSSE) with a plasma nitride (Ni) and blue steam-oxide finish. This listing covers 7 sizes from 1/4 x 20 TPI to 1 x 8 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The GG designation is for cast iron, with straight flutes and a low rake angle. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is 2BX. The tap is built to DIN 2184-1.
Where this product is used
- Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2.
- Through or blind holes.
- Suitable for machine operations.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Plasma nitride (Ni) and blue steam-oxide finish to increase surface hardness and carry lubricant better.
- 4 flutes.
- Form C chamfer, 2.5 x P.
- Thread tolerance 2BX.
- The GG designation is for cast iron, with straight flutes and a low rake angle.
- DIN 2184-1 construction.
Sizes

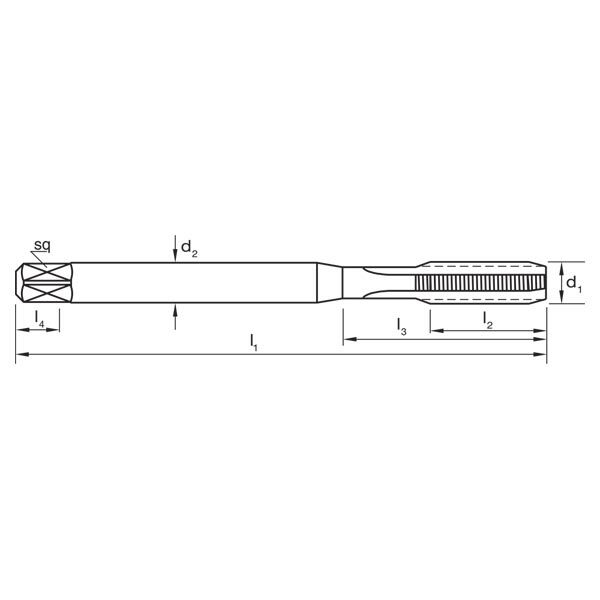

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T302 0635 | 1/4 x 20 TPI | 20 | 5.1 | 80 | 19 | 30 | 7 | 5.5 | 8 | 4 |
| T302 0794 | 5/16 x 18 TPI | 18 | 6.6 | 90 | 22 | 34 | 8 | 6.2 | 9 | 4 |
| T302 0953 | 3/8 x 16 TPI | 16 | 8 | 100 | 22 | 35 | 10 | 7 | 10 | 4 |
| T302 1270 | 1/2 x 13 TPI | 13 | 10.8 | 110 | 28 | - | 9 | 7 | 10 | 4 |
| T302 1588 | 5/8 x 11 TPI | 11 | 13.5 | 110 | 32 | - | 12 | 9 | 12 | 4 |
| T302 1905 | 3/4 x 10 TPI | 10 | 16.5 | 125 | 34 | - | 14 | 11 | 14 | 4 |
| T302 2540 | 1 x 8 TPI | 8 | 22.2 | 160 | 38 | - | 18 | 14.5 | 17 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T302 |
| Type | Straight flute tap |
| Thread series | UNC |
| Material | HSSE |
| Finish | Plasma Nitride + Steam Oxide |
| Designation | GG |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 2BX |
| Standard | DIN 2184-1 |
| Flutes | 4 |
| Sizes in this listing | 7 sizes, 1/4 x 20 TPI to 1 x 8 TPI |
