Sutton T365 M2 x 0.4 Spiral Flute Tap Synchro L20 - PM-HSSE V3 - TiCN
Available

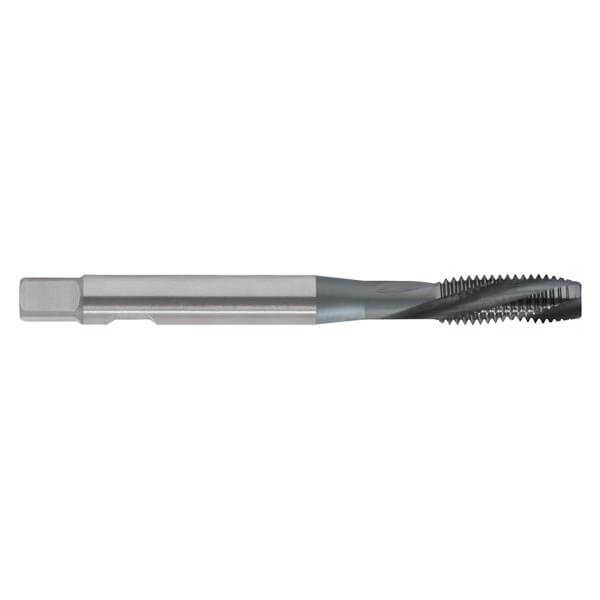

The Sutton T365 is a spiral flute tap (L20 spiral, HSC designation, synchro) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a TiCN coating. This listing covers 11 sizes from M2 x 0.4 to M20 x 2.5.
The 20° left-hand spiral with right-hand cutting curls and carries the chips forward of the tap, like a gun tap, and the helical flutes keep the thread pitch where another hole crosses the tapped hole. It suits through holes, including interrupted holes. The chamfer is Form D (4 x P), generally for through holes.
The thread tolerance is 6HX.
Where this product is used
- Suitable for materials up to 850 N/mm2.
- Ideal for through holes with angular exit or interrupted hole.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 to 4 flutes, depending on size.
- 20° left-hand spiral flute.
- Form D chamfer, 4 x P.
- Thread tolerance 6HX.
- Right hand cutting / Left hand helix.
- For high speed and precision tapping.
- For rigid tapping in CNC machines with synchronised feed.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T365 0200 | M2 x 0.4 | 0.4 | 1.6 | 70 | 8 | 13 | 6 | 4.9 | 8 | 3 |
| T365 0300 | M3 x 0.5 | 0.5 | 2.5 | 70 | 11 | 18 | 6 | 4.9 | 8 | 3 |
| T365 0400 | M4 x 0.7 | 0.7 | 3.3 | 70 | 13 | 21 | 6 | 4.9 | 8 | 3 |
| T365 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 16 | 25 | 6 | 4.9 | 8 | 3 |
| T365 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 3 |
| T365 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 35 | 8 | 6.2 | 9 | 3 |
| T365 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 39 | 10 | 8 | 11 | 3 |
| T365 1200 | M12 x 1.75 | 1.75 | 10.3 | 110 | 29 | 42 | 12 | 9 | 12 | 3 |
| T365 1400 | M14 x 2 | 2 | 12 | 110 | 30 | 49 | 14 | 11 | 14 | 4 |
| T365 1800 | M18 x 2.5 | 2.5 | 15.5 | 125 | 34 | - | 16 | 12 | 15 | 4 |
| T365 2000 | M20 x 2.5 | 2.5 | 17.5 | 140 | 34 | - | 16 | 12 | 15 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T365 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | TiCN |
| Designation | HSC |
| Spiral | L20 (20° left-hand) |
| Chamfer | Form D / 4 x P |
| Thread tolerance | 6HX |
| Flutes | 3 to 4 |
| Sizes in this listing | 11 sizes, M2 x 0.4 to M20 x 2.5 |
