Description
Description

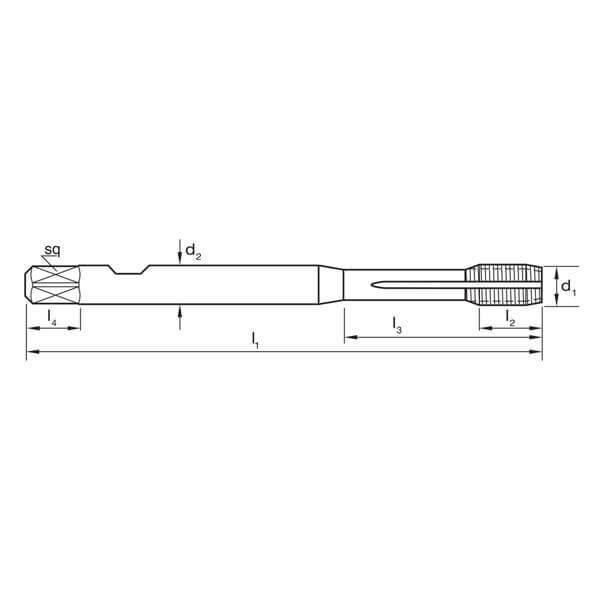

Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- Drill Size (mm): 4.6 (drill)
- Pitch (mm): 0.8 (pitch)
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- X: ru
- Type: Fluteless - Multi Coolant Groove
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- Drill Size (mm): 4.6 (drill)
- Pitch (mm): 0.8 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- X: ru
- Type: Fluteless - Multi Coolant Groove
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

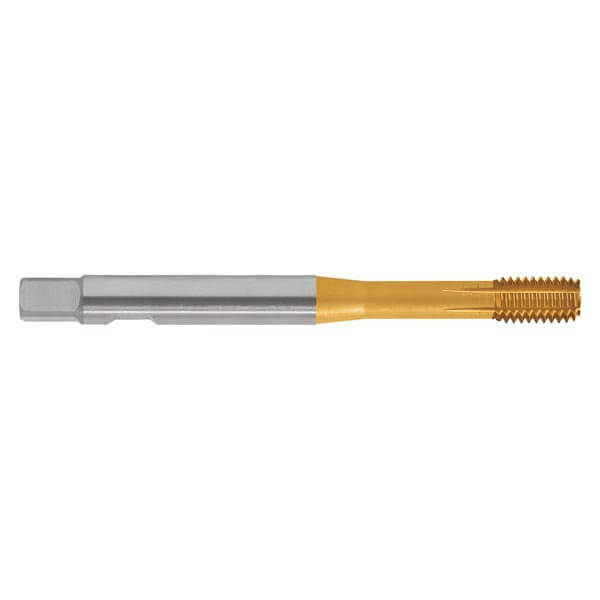

Sutton T383 Metric Thread Forming Tap - Synchro - Vanadium HSS Tinite
Sutton T383 Metric Thread Forming Tap - Synchro - Vanadium HSS Tinite
SKU: A0014735
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T383 Metric Thread Forming Tap by Sutton Tools is a 0 made from Powdered Metallurgy Vanadium Grade High Speed Steel (PM-HSSE V3). It offers M10 thread and is for aluminium & magnesium, wrought alloy - Non Heat Treatable.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- Drill Size (mm): 4.6 (drill)
- Pitch (mm): 0.8 (pitch)
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- X: ru
- Type: Fluteless - Multi Coolant Groove
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Specifications
Specifications
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- Drill Size (mm): 4.6 (drill)
- Pitch (mm): 0.8 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Nitride (TiN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- X: ru
- Type: Fluteless - Multi Coolant Groove
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
Features & Benefits
Features & Benefits
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T383 Metric Thread Forming Tap - Synchro - Vanadium HSS Tinite
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T383 Metric Thread Forming Tap by Sutton Tools is a 0 made from Powdered Metallurgy Vanadium Grade High Speed Steel (PM-HSSE V3). It offers M10 thread and is for aluminium & magnesium, wrought alloy - Non Heat Treatable. |
Regular price
From $187.55
Sale price
From $187.55
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M5,M6,M8,M10,M12,M14,M16,M18,M20
|
Choose your option
Sutton T383 Metric Thread Forming Tap - Synchro - Vanadium HSS Tinite
Sutton T383 Metric Thread Forming Tap - Synchro - Vanadium HSS Tinite
SKU: A0014735
Hurry up, only 7 items left in stock.
The Sutton T383 Metric Thread Forming Tap by Sutton Tools is a 0 made from Powdered Metallurgy Vanadium Grade High Speed Steel (PM-HSSE V3). It offers M10 thread and is for aluminium & magnesium, wrought alloy - Non Heat Treatable.
