Sutton T451 BSW Straight Flute Tap - Taper - HSS

Sutton T451 BSW Straight Flute Tap - Taper - HSS

SKU: A0015505

$708.91
$708.91
Inc. GST
Buy It Now

Available

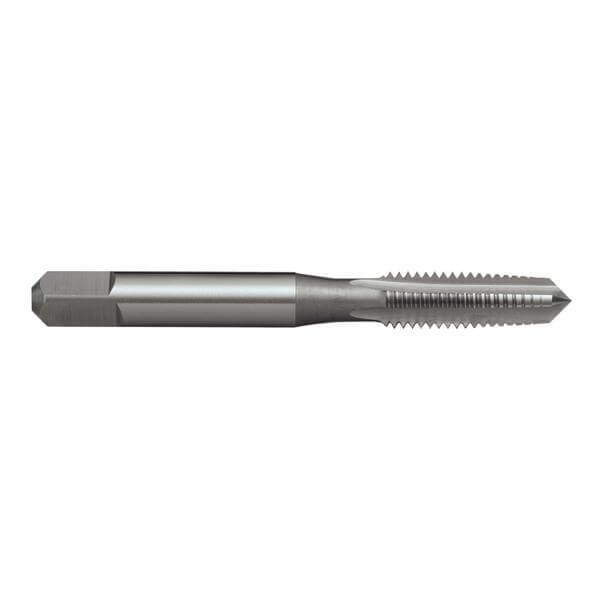

The Sutton T451 BSW Straight Flute Tap by Sutton Tools is a Straight Flute tap in High Speed Steel (HSS). It provides d1 11.1125 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.

Resources

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Taper

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Taper
  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
