Sutton T452 1-3/4 x 5 TPI Straight Flute Tap Intermediate - HSS - Bright - ISO 529
Available

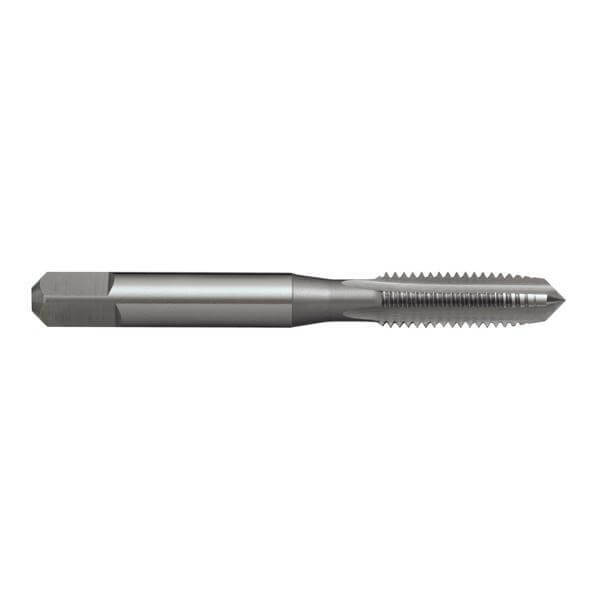

The Sutton T452 is a straight flute tap (intermediate chamfer) for BSW threads, made from high speed steel (HSS) with a bright finish. This listing covers 20 sizes from 3/32 x 48 TPI to 2 x 4.5 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is Z3 Medium. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance Z3 Medium.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T452 0238 | 3/32 x 48 TPI | 48 | 1.85 | 45 | 10 | - | 2.8 | 2.24 | 5 | 3 |
| T452 0318 | 1/8 x 40 TPI | 40 | 2.55 | 48 | 15 | 15 | 3.15 | 2.5 | 5 | 3 |
| T452 0397 | 5/32 x 32 TPI | 32 | 3.2 | 53 | 17 | 17 | 4 | 3.15 | 6 | 3 |
| T452 0476 | 3/16 x 24 TPI | 24 | 3.7 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T452 0556 | 7/32 x 24 TPI | 24 | 4.5 | 62 | 17 | 23 | 5.6 | 4.5 | 7 | 3 |
| T452 0635 | 1/4 x 20 TPI | 20 | 5.1 | 66 | 19 | 25 | 6.3 | 5 | 8 | 3 |
| T452 0794 | 5/16 x 18 TPI | 18 | 6.5 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T452 0953 | 3/8 x 16 TPI | 16 | 7.9 | 80 | 24 | 33 | 10 | 8 | 11 | 4 |
| T452 1111 | 7/16 x 14 TPI | 14 | 9.3 | 85 | 25 | - | 8 | 6.3 | 9 | 4 |
| T452 1270 | 1/2 x 12 TPI | 12 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T452 1429 | 9/16 x 12 TPI | 12 | 12.1 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T452 1588 | 5/8 x 11 TPI | 11 | 13.5 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T452 1905 | 3/4 x 10 TPI | 10 | 16.25 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T452 2223 | 7/8 x 9 TPI | 9 | 19.25 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T452 2540 | 1 x 8 TPI | 8 | 22 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T452 2858 | 1-1/8 x 7 TPI | 7 | 24.75 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T452 3175 | 1-1/4 x 7 TPI | 7 | 28 | 151 | 51 | - | 22.4 | 18 | 22 | 4 |
| T452 3810 | 1-1/2 x 6 TPI | 6 | 33.5 | 170 | 60 | - | 28 | 22.4 | 26 | 4 |
| T452 4445 | 1-3/4 x 5 TPI | 5 | 39 | 187 | 67 | - | 31.5 | 25 | 28 | 4 |
| T452 5080 | 2 x 4.5 TPI | 4.5 | 44.5 | 200 | 70 | - | 35.5 | 28 | 31 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T452 |
| Type | Straight flute tap |
| Thread series | BSW |
| Material | HSS |
| Finish | Bright |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | Z3 Medium |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 20 sizes, 3/32 x 48 TPI to 2 x 4.5 TPI |
Related products
Related Sutton taps: T451 BSW Straight Flute Tap Taper - HSS - Bright - ISO 529, T453 BSW Straight Flute Tap Bottoming - HSS - Bright - ISO 529, T456 BSW Straight Flute Tap Left Hand Bottoming - HSS - Bright - ISO 529.
