Sutton T475 1 x 11 TPI Straight Flute Tap Pipe Bottoming - HSS - Bright - ISO 2284
Available

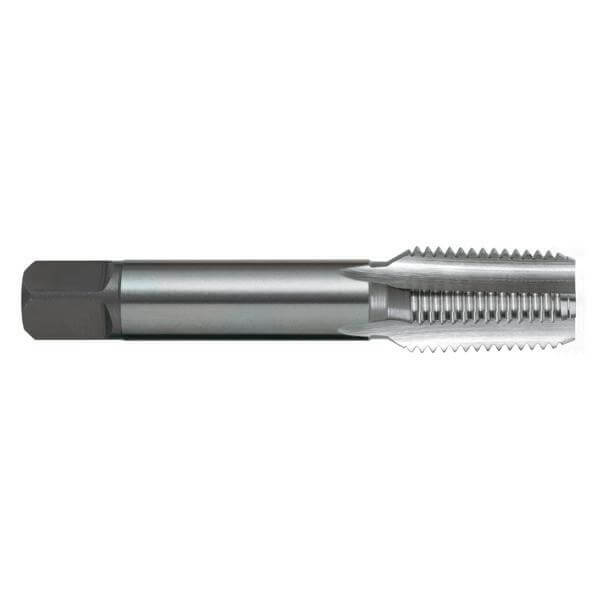

The Sutton T475 is a straight flute tap (bottoming chamfer) for BSPT (Rc) threads, made from high speed steel (HSS) with a bright finish. This listing covers 9 sizes from 1/8 x 28 TPI to 2 x 11 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ISO 2284.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 to 7 flutes, depending on size.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- ISO 2284 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T475 0973 | 1/8 x 28 TPI | 28 | 8.4 | 59 | 15 | 8 | 6.3 | 9 | 4 |
| T475 1316 | 1/4 x 19 TPI | 19 | 10.8 | 67 | 19 | 10 | 8 | 11 | 4 |
| T475 1666 | 3/8 x 19 TPI | 19 | 14.5 | 75 | 21 | 12.5 | 10 | 13 | 4 |
| T475 2096 | 1/2 x 14 TPI | 14 | 18 | 87 | 26 | 16 | 12.5 | 16 | 4 |
| T475 2644 | 3/4 x 14 TPI | 14 | 23 | 96 | 28 | 20 | 16 | 20 | 4 |
| T475 3325 | 1 x 11 TPI | 11 | 29 | 109 | 33 | 25 | 20 | 24 | 5 |
| T475 4191 | 1-1/4 x 11 TPI | 11 | 38 | 119 | 36 | 31.5 | 25 | 28 | 5 |
| T475 4780 | 1-1/2 x 11 TPI | 11 | 44 | 125 | 37 | 35.5 | 28 | 31 | 7 |
| T475 5961 | 2 x 11 TPI | 11 | 55 | 140 | 41 | 40 | 31.5 | 34 | 7 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T475 |
| Type | Straight flute tap |
| Thread series | BSPT (Rc) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Bottoming (Form E) |
| Standard | ISO 2284 |
| Flutes | 4 to 7 |
| Sizes in this listing | 9 sizes, 1/8 x 28 TPI to 2 x 11 TPI |
