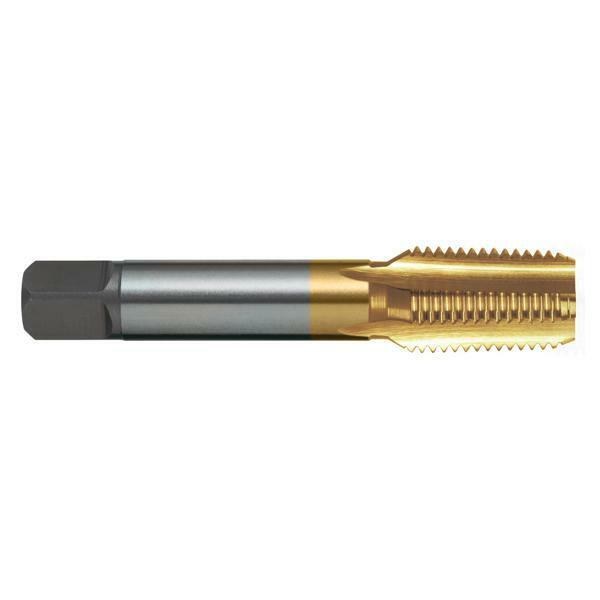

Sutton T476 1/2 x 14 TPI Straight Flute Tap Pipe Bottoming - HSS - TiN - ISO 2284
Available
The Sutton T476 is a straight flute tap (bottoming chamfer) for BSPT (Rc) threads, made from high speed steel (HSS) with a gold titanium nitride (TiN) coating. This listing covers 4 sizes from 1/8 x 28 TPI to 1/2 x 14 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ISO 2284.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Gold titanium nitride (TiN) coating for 3 to 8 times longer tool life than uncoated tools, with higher speeds and feeds.
- 4 flutes.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- ISO 2284 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T476 0973 | 1/8 x 28 TPI | 28 | 8.4 | 59 | 15 | 8 | 6.3 | 9 | 4 |
| T476 1316 | 1/4 x 19 TPI | 19 | 10.8 | 67 | 19 | 10 | 8 | 11 | 4 |
| T476 1666 | 3/8 x 19 TPI | 19 | 14.5 | 75 | 21 | 12.5 | 10 | 13 | 4 |
| T476 2096 | 1/2 x 14 TPI | 14 | 18 | 87 | 26 | 16 | 12.5 | 16 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T476 |
| Type | Straight flute tap |
| Thread series | BSPT (Rc) |
| Material | HSS |
| Finish | TiN |
| Chamfer | Bottoming (Form E) |
| Standard | ISO 2284 |
| Flutes | 4 |
| Sizes in this listing | 4 sizes, 1/8 x 28 TPI to 1/2 x 14 TPI |
Related products
Related Sutton taps: T475 BSPT (Rc) Straight Flute Tap Pipe Bottoming - HSS - Bright - ISO 2284, T808 BSPT (Rc) Straight Flute Tap UNI - HSSE - TiCN - DIN 2184-1.
