Sutton T606 M7 x 1 Spiral Flute Tap R40 Point Removed - HSSE - Bright - JIS
Available
The Sutton T606 is a spiral flute tap (R40 spiral, N designation) for metric (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 11 sizes from M7 x 1 to M24 x 3.
The 40° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
The tap is built to JIS (Japanese Industrial Standards).
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Blind holes.
- Depths up to 2.5 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- 40° right-hand spiral flute.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- JIS (Japanese Industrial Standards) construction.
Sizes

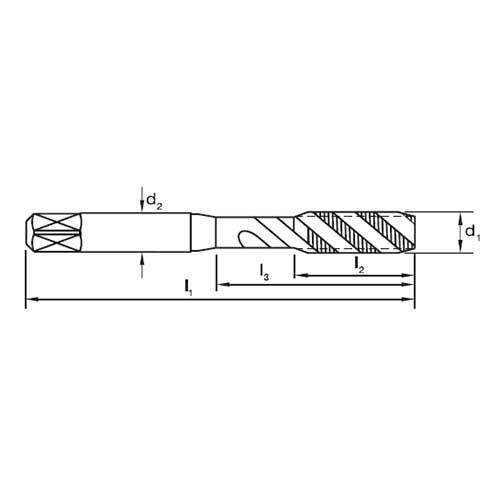

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | Flutes | Limit |
|---|---|---|---|---|---|---|---|---|---|
| T606 0700 | M7 x 1 | 1 | 6 | 65 | 22 | 6.2 | 5 | 3 | P2 |
| T606 0800 | M8 x 1.25 | 1.25 | 6.8 | 70 | 22 | 6.2 | 5 | 3 | P2 |
| T606 1000 | M10 x 1.5 | 1.5 | 8.5 | 75 | 24 | 7 | 5.5 | 3 | P2 |
| T606 1006 | M10 x 1.25 | 1.25 | 8.8 | 75 | 24 | 7 | 5.5 | 3 | P2 |
| T606 1200 | M12 x 1.75 | 1.75 | 10.2 | 82 | 29 | 8.5 | 6.5 | 3 | P2 |
| T606 1400 | M14 x 2 | 2 | 12 | 88 | 30 | 10.5 | 8 | 3 | P2 |
| T606 1600 | M16 x 2 | 2 | 14 | 95 | 32 | 12.5 | 10 | 4 | P2 |
| T606 1800 | M18 x 2.5 | 2.5 | 15.5 | 100 | 37 | 14 | 11 | 4 | P3 |
| T606 2000 | M20 x 2.5 | 2.5 | 17.5 | 105 | 37 | 15 | 12 | 4 | P3 |
| T606 2200 | M22 x 2.5 | 2.5 | 19.5 | 115 | 38 | 17 | 13 | 4 | P3 |
| T606 2400 | M24 x 3 | 3 | 21 | 120 | 45 | 19 | 15 | 4 | P3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T606 |
| Type | Spiral flute tap |
| Thread series | Metric (M) |
| Material | HSSE |
| Finish | Bright |
| Designation | N |
| Spiral | R40 (40° right-hand) |
| Standard | JIS |
| Flutes | 3 to 4 |
| Sizes in this listing | 11 sizes, M7 x 1 to M24 x 3 |
Related products
Related Sutton taps: T607 Metric Spiral Flute Tap R40 Point Removed - HSSE - Steam Oxide - JIS.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

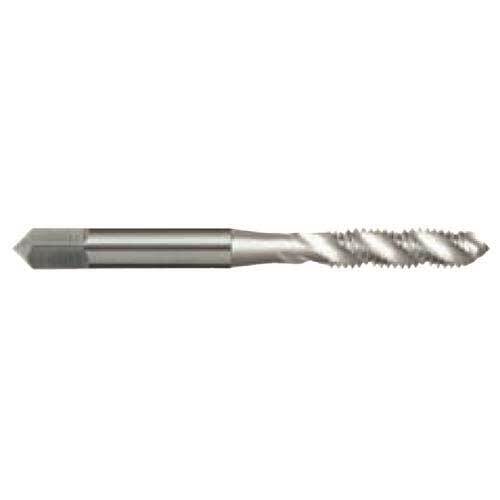

Sutton T606 Metric Spiral Flute Tap R40 Point Removed - HSSE - Bright - JIS: M7
