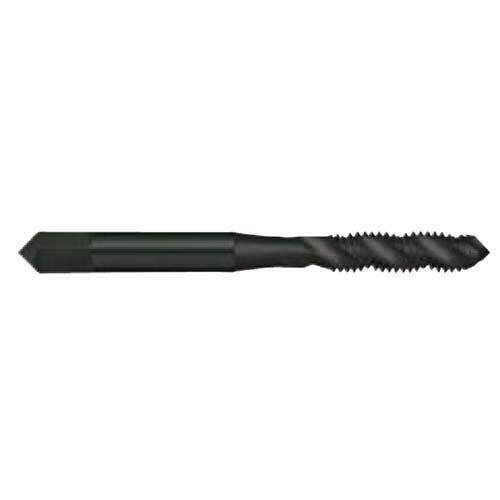

Sutton T607 M7 x 1 Spiral Flute Tap R40 Point Removed - HSSE - Steam Oxide - JIS
Available
The Sutton T607 is a spiral flute tap (R40 spiral, N designation) for metric (M) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 11 sizes from M7 x 1 to M24 x 3.
The 40° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
The tap is built to JIS (Japanese Industrial Standards).
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Blind holes.
- Depths up to 2.5 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- 40° right-hand spiral flute.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- JIS (Japanese Industrial Standards) construction.
Sizes

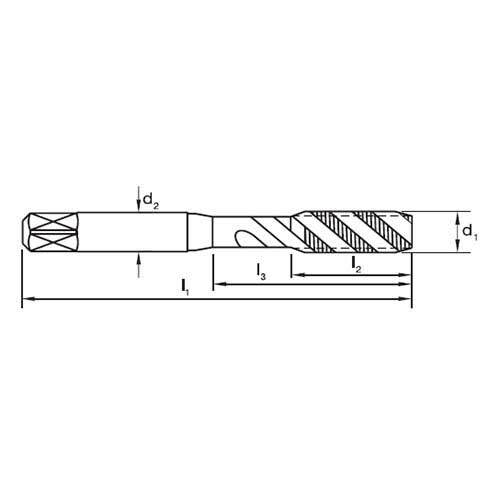

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | Flutes | Limit |
|---|---|---|---|---|---|---|---|---|---|
| T607 0700 | M7 x 1 | 1 | 6 | 65 | 22 | 6.2 | 5 | 3 | P2 |
| T607 0800 | M8 x 1.25 | 1.25 | 6.8 | 70 | 22 | 6.2 | 5 | 3 | P2 |
| T607 1000 | M10 x 1.5 | 1.5 | 8.5 | 75 | 24 | 7 | 5.5 | 3 | P2 |
| T607 1006 | M10 x 1.25 | 1.25 | 8.8 | 75 | 24 | 7 | 5.5 | 3 | P2 |
| T607 1200 | M12 x 1.75 | 1.75 | 10.2 | 82 | 29 | 8.5 | 6.5 | 3 | P2 |
| T607 1400 | M14 x 2 | 2 | 12 | 88 | 30 | 10.5 | 8 | 3 | P2 |
| T607 1600 | M16 x 2 | 2 | 14 | 95 | 32 | 12.5 | 10 | 4 | P2 |
| T607 1800 | M18 x 2.5 | 2.5 | 15.5 | 100 | 37 | 14 | 11 | 4 | P3 |
| T607 2000 | M20 x 2.5 | 2.5 | 17.5 | 105 | 37 | 15 | 12 | 4 | P3 |
| T607 2200 | M22 x 2.5 | 2.5 | 19.5 | 115 | 38 | 17 | 13 | 4 | P3 |
| T607 2400 | M24 x 3 | 3 | 21 | 120 | 45 | 19 | 15 | 4 | P3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T607 |
| Type | Spiral flute tap |
| Thread series | Metric (M) |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | N |
| Spiral | R40 (40° right-hand) |
| Standard | JIS |
| Flutes | 3 to 4 |
| Sizes in this listing | 11 sizes, M7 x 1 to M24 x 3 |
Related products
Related Sutton taps: T606 Metric Spiral Flute Tap R40 Point Removed - HSSE - Bright - JIS.
