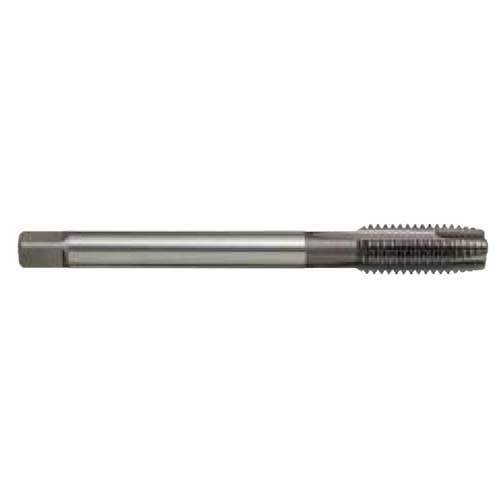

Sutton T688 Spiral Point (Gun) Tap - UNI - Black Magic

Sutton T688 Spiral Point (Gun) Tap - UNI - Black Magic

• Universal high-performance tapping.
• PM-HSSE V3 offers superior tool life.
• Use in stainless steel and high strength steels up to 850N/mm2.
• Through holes up to 3 x d1.
• Suitable for synchronous tapping in machine operations.

Specifications

• Designation: UNI
• Material: PM-HSSE V3
• Finish: Hardlube
• Max Cut Depth: 3xD
• Shank Form: A
• x: als
• Type: Spiral Point (Gun)
• Standard: DIN371
• Thread Form: M
• Nut Tolerance: 6HX
• Lead: Form B / 4.5 x P

Applications

• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
• Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
• Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
• Optimal for Steel - High alloy, cast & tool-200HB
• Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic-200HB
• Optimal for Stainless Steel - Austenitic-180HB
• Optimal for Stainless Steel - Duplex-250HB
• Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
• Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
• Optimal for Aluminum & Magnesium, cast alloy ‰12% Si - Non Heat Treatabl-75HB
