Sutton T680 M2.5 x 0.45 Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 371
Available

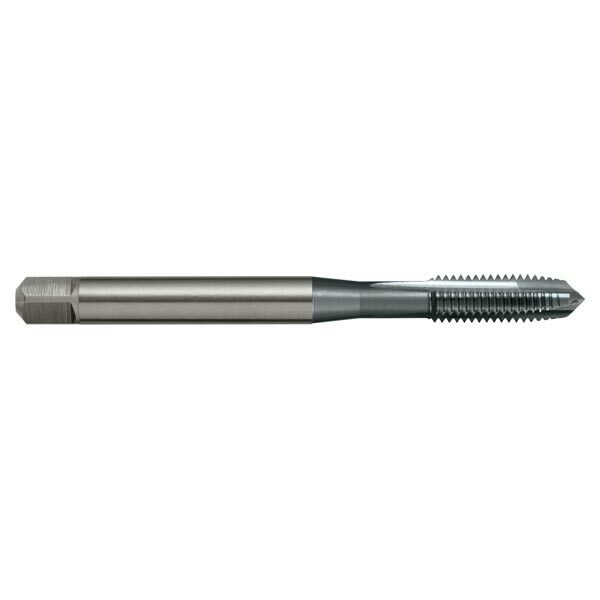

The Sutton T680 is a spiral point (gun) tap (VA PM designation) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a TiCN coating. This listing covers 9 sizes from M2 x 0.4 to M10 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is 6GX. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- Use in stainless steels and high strength steels up to 1000 N/mm2.
- Through holes.
- Suitable for synchronous tapping in machine operations.
- Depths up to approx. 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 flutes.
- Form B chamfer, 4.5 x P.
- Thread tolerance 6GX.
- The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel.
- PM-HSSE V3 offers higher edge hardness than standard VA series.
- DIN 371 construction, reinforced shank with square drive.
Sizes

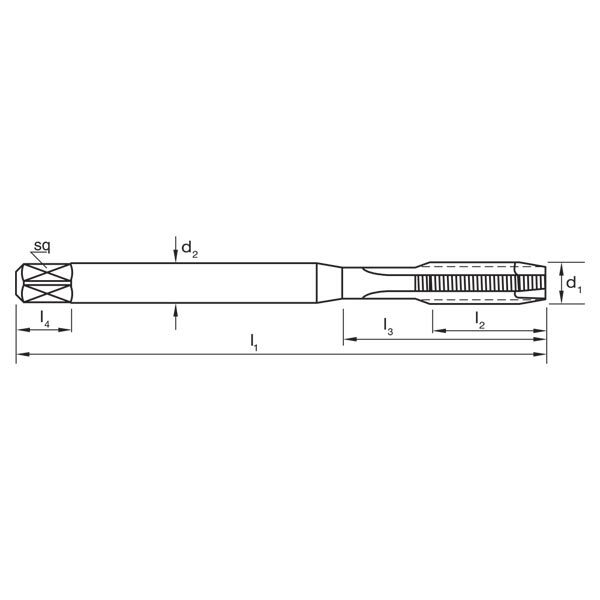

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T680 0200 | M2 x 0.4 | 0.4 | 1.6 | 45 | 8 | - | 2.8 | 2.1 | 5 | 3 |
| T680 0250 | M2.5 x 0.45 | 0.45 | 2.05 | 50 | 9 | - | 2.8 | 2.1 | 5 | 3 |
| T680 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 3 |
| T680 0350 | M3.5 x 0.6 | 0.6 | 2.9 | 56 | 13 | 20 | 4 | 3 | 6 | 3 |
| T680 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 13 | 21 | 4.5 | 3.4 | 6 | 3 |
| T680 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 16 | 25 | 6 | 4.9 | 8 | 3 |
| T680 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 3 |
| T680 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 35 | 8 | 6.2 | 9 | 3 |
| T680 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 39 | 10 | 8 | 11 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T680 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | TiCN |
| Designation | VA PM |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | 6GX |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | 9 sizes, M2 x 0.4 to M10 x 1.5 |
