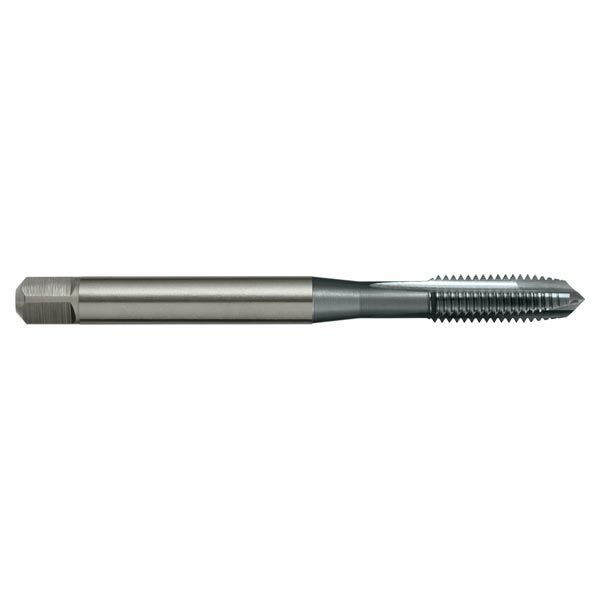

Sutton T1160500 Metric M5 x 0.8 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160600 Metric M6 x 1 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3 TiCN
Sutton T1161000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3 TiCN
Sutton T116 Metric Spiral Point Tap - Vanadium HSS TiCN1
Sutton T116 Metric Spiral Point Tap - Vanadium HSS TiCN2
Sutton T1160160 Metric M1.6 x 0.35 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160200 Metric M2 x 0.4 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160250 Metric M2.5 x 0.45 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160300 Metric M3 x 0.5 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160350 Metric M3.5 x 0.6 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160400 Metric M4 x 0.7 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160500 Metric M5 x 0.8 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160600 Metric M6 x 1 Spiral Point Tap - HSSE V3 TiCN
Sutton T1160800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3 TiCN
Sutton T1161000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3 TiCN

Sutton T116 Metric Spiral Point Tap - Vanadium HSS TiCN

Sutton T116 Metric Spiral Point Tap - Vanadium HSS TiCN

SKU: A0012937

$109.29
$109.29
Inc. GST
Buy It Now

Available

The Sutton T116 Metric Spiral Point Tap by Sutton Tools is a 0 with Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3) material. It provides M1.6 thread form and is suitable for High temperature alloys - Ni / Co based: Annealed.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M1.6
  • d2 (mm): 2.5
  • l1 (mm): 40
  • l2 (mm): 8
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • z: 3
  • Drill Size (mm): 1.25 (drill)
  • Pitch (mm): 0.35 (pitch)

Features

  • PM-HSSE V3 offers superior performance
  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel – Duplex
  • Stainless Steel - Precipitation Hardening
  • High temperature alloys - Fe based: Annealed
  • High temperature alloys - Fe based: Age Hardened
  • High temperature alloys - Ni / Co based: Annealed

Dimensions

  • d1: M1.6
  • d2 (mm): 2.5
  • l1 (mm): 40
  • l2 (mm): 8
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • z: 3
  • Drill Size (mm): 1.25 (drill)
  • Pitch (mm): 0.35 (pitch)

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel – Duplex
  • Stainless Steel - Precipitation Hardening
  • High temperature alloys - Fe based: Annealed
  • High temperature alloys - Fe based: Age Hardened
  • High temperature alloys - Ni / Co based: Annealed

Features

  • PM-HSSE V3 offers superior performance
  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1
