Sutton T114 M3 x 0.5 Spiral Point Tap VA PM - PM-HSSE V3 - Steam Oxide - DIN 371
Available
The Sutton T114 is a spiral point (gun) tap (VA PM designation) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a blue steam-oxide finish. This listing covers 6 sizes from M3 x 0.5 to M10 x 1.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is 6HX. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- Use in stainless steels and high strength steels up to 1000 N/mm2.
- Through holes.
- Suitable for synchronous tapping in machine operations.
- Depths up to approx. 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 flutes.
- Form B chamfer, 4.5 x P.
- Thread tolerance 6HX.
- The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel.
- PM-HSSE V3 offers higher edge hardness than standard VA series.
- DIN 371 construction, reinforced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

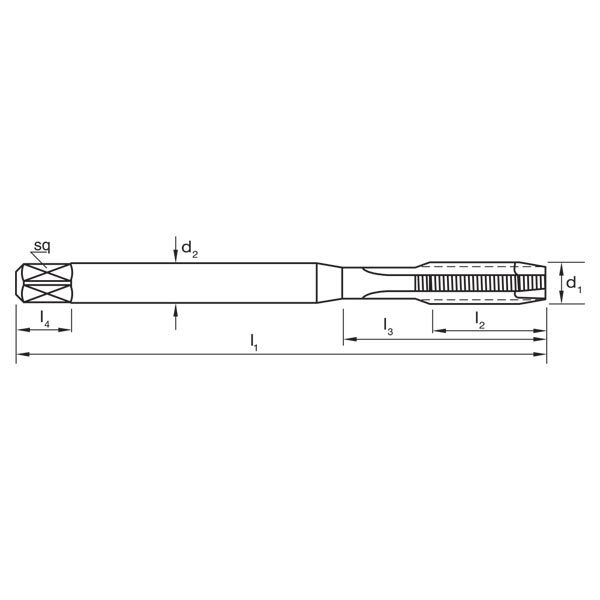

| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T114 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 3 |
| T114 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 13 | 21 | 4.5 | 3.4 | 6 | 3 |
| T114 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 16 | 25 | 6 | 4.9 | 8 | 3 |
| T114 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 3 |
| T114 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 35 | 8 | 6.2 | 9 | 3 |
| T114 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 39 | 10 | 8 | 11 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T114 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | Steam Oxide |
| Designation | VA PM |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | 6 sizes, M3 x 0.5 to M10 x 1.5 |
Related products
Related Sutton taps: T115 Metric Coarse Spiral Point Tap VA PM - PM-HSSE V3 - Steam Oxide - DIN 376, T113 Metric Coarse Spiral Point Tap VA - HSSE - TiCN - DIN 376, T112 Metric Coarse Spiral Point Tap VA - HSSE - TiCN - DIN 371, T116 Metric Coarse Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 371, T111 Metric Coarse Spiral Point Tap VA - HSSE - Steam Oxide - DIN 376.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

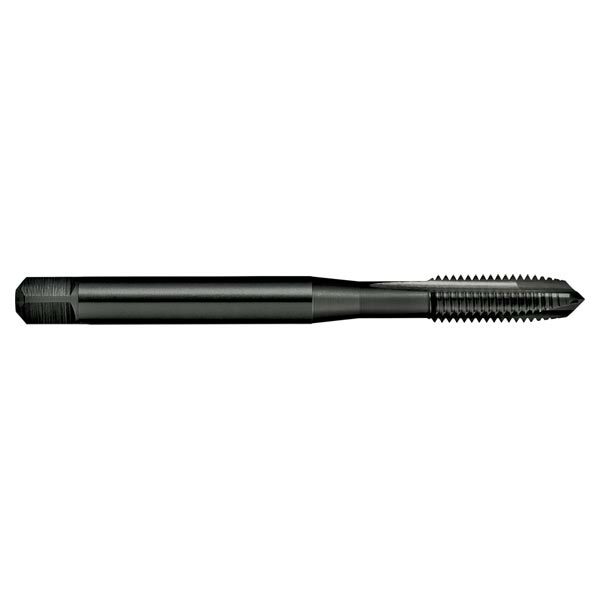

Sutton T114 Metric Coarse Spiral Point Tap VA PM - PM-HSSE V3 - Steam Oxide - DIN 371: M3
