Sutton T111 M6 x 1 Spiral Point Tap VA - HSSE - Steam Oxide - DIN 376
Available

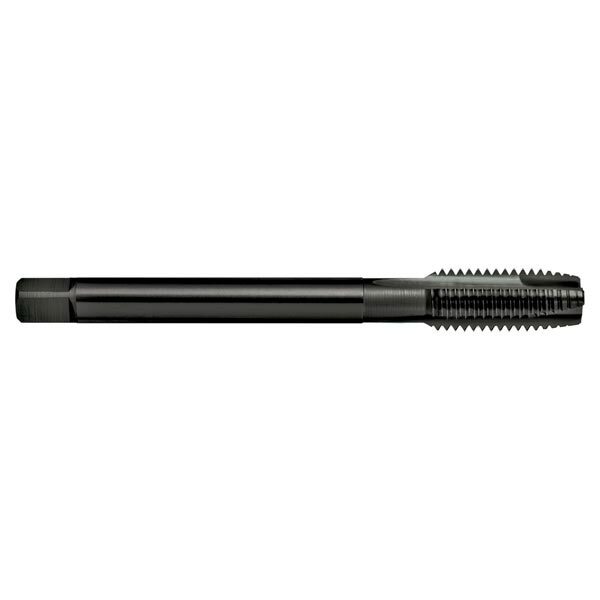

The Sutton T111 is a spiral point (gun) tap (VA designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 12 sizes from M6 x 1 to M30 x 3.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The VA designation is for stainless and tough steels, with a high rake angle and thread relief, so the chip flows continuously in an axial direction. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 376: reduced shank with square drive.
Where this product is used
- Use in stainless steels and high strength steels.
- Suitable for materials up to 850 N/mm2.
- Through holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- The VA designation is for stainless and tough steels, with a high rake angle and thread relief, so the chip flows continuously in an axial direction.
- DIN 376 construction, reduced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T111 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 4.5 | 3.4 | 6 | 3 |
| T111 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 6 | 4.9 | 8 | 3 |
| T111 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 7 | 5.5 | 8 | 3 |
| T111 1200 | M12 x 1.75 | 1.75 | 10.2 | 110 | 28 | 9 | 7 | 10 | 3 |
| T111 1400 | M14 x 2 | 2 | 12 | 110 | 30 | 11 | 9 | 12 | 3 |
| T111 1600 | M16 x 2 | 2 | 14 | 110 | 32 | 12 | 9 | 12 | 4 |
| T111 1800 | M18 x 2.5 | 2.5 | 15.5 | 125 | 34 | 14 | 11 | 14 | 4 |
| T111 2000 | M20 x 2.5 | 2.5 | 17.5 | 140 | 34 | 16 | 12 | 15 | 4 |
| T111 2200 | M22 x 2.5 | 2.5 | 19.5 | 140 | 34 | 18 | 14.5 | 17 | 4 |
| T111 2400 | M24 x 3 | 3 | 21 | 160 | 38 | 18 | 14.5 | 17 | 4 |
| T111 2700 | M27 x 3 | 3 | 24 | 160 | 38 | 20 | 16 | 19 | 4 |
| T111 3000 | M30 x 3.5 | 3.5 | 26.5 | 180 | 45 | 22 | 18 | 21 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T111 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | VA |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 376 |
| Flutes | 3 to 4 |
| Sizes in this listing | 12 sizes, M6 x 1 to M30 x 3.5 |
