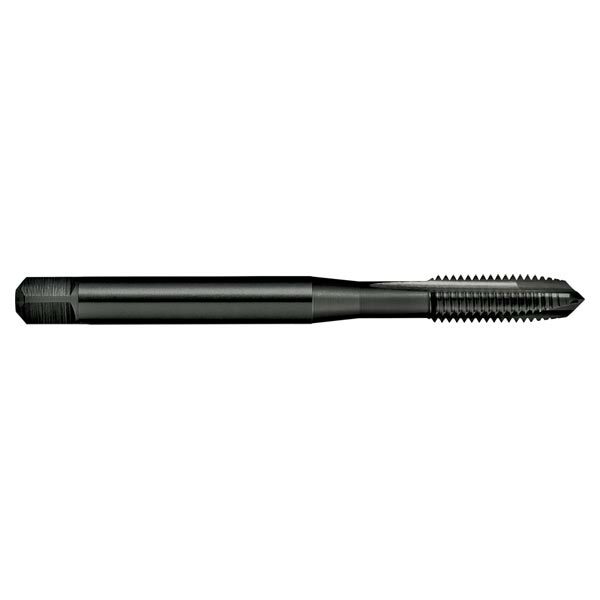

Sutton T1100350 Metric M3.5 x 0.6 Spiral Point Tap - HSSE V3 Blue
Sutton T1100400 Metric M4 x 0.7 Spiral Point Tap - HSSE V3 Blue
Sutton T1100500 Metric M5 x 0.8 Spiral Point Tap - HSSE V3 Blue
Sutton T1100600 Metric M6 x 1 Spiral Point Tap - HSSE V3 Blue
Sutton T1100800 Metric M8 x 1.25 Spiral Point Tap - HSSE V3 Blue
Sutton T1101000 Metric M10 x 1.5 Spiral Point Tap - HSSE V3 Blue

Sutton T110 Metric Spiral Point Tap - Premium HSS Blue

Sutton T110 Metric Spiral Point Tap - Premium HSS Blue

SKU: A0012888

$32.89
$32.89
Inc. GST
Buy It Now

Available

The Sutton T110 Metric Spiral Point Tap by Sutton Tools is a Spiral Point (Gun) tap with Steam Oxide finish. It offers depths up to 3 x d1 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

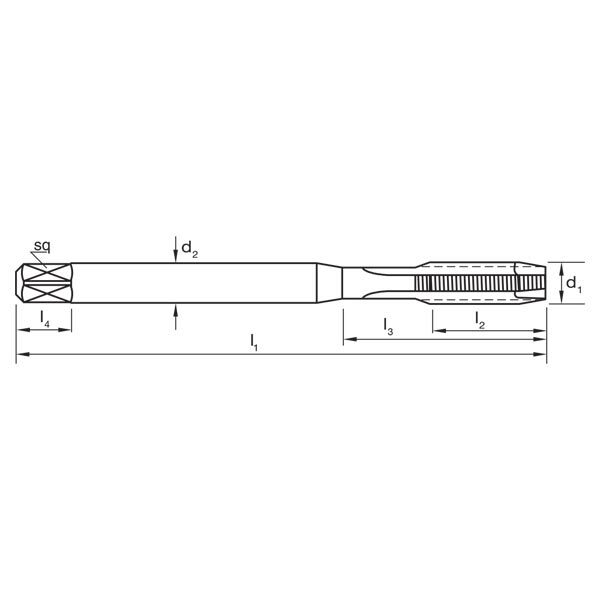

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Features

  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Dimensions

  • d1: M3
  • d2 (mm): 3.5
  • l1 (mm): 56
  • l2 (mm): 11
  • l3 (mm): 18
  • l4 (mm): 6
  • Square Size (mm): 2.7
  • z: 3
  • Drill Size (mm): 2.5 (drill)
  • Pitch (mm): 0.5 (pitch)

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Features

  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1
