Sutton T7911270 UNJF 1/2'' x 13 Spiral | AIMS Industrial

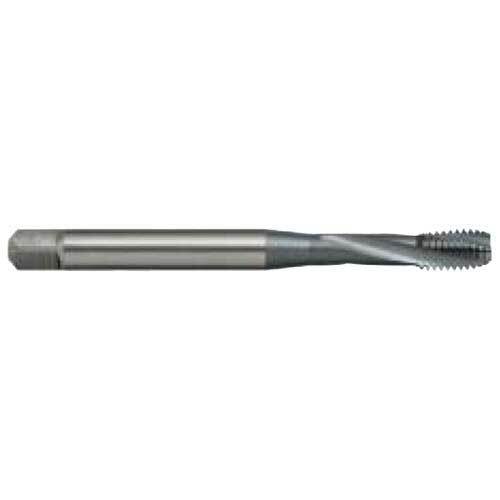

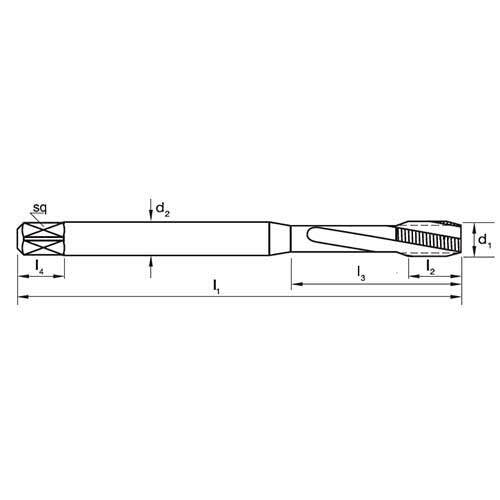

Sutton T791 Spiral Flute Tap - R15 Ti

• For Titanium-based alloys.
• For duplex and super duplex stainless steels.
• For Nickel based alloys >850N/mm2 <1150N/mm2.
• Tight tolerances and optimized micro-finish for optimal process reliability and excellent thread quality.
• Blind holes up to approximately 1.5 x d1.

Specifications

• Designation: Ti
• Material: PM-HSS Co
• Finish: TiCN
• Max Cut Depth: 1.5xD
• Shank Form: A
• Helix Angle: R15
• x: als
• Type: Spiral Flute
• Standard: DIN2184-1
• Thread Form: UNJ
• Nut Tolerance: 3BX
• Lead: Form C / 3 x P

Applications

• Optimal for Titanium & Titanium alloys - Alpha alloys
• Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
• Optimal for Titanium & Titanium alloys - Beta alloys
