Sutton T795 5/16 x 24 TPI Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 2184-1
Out of stock

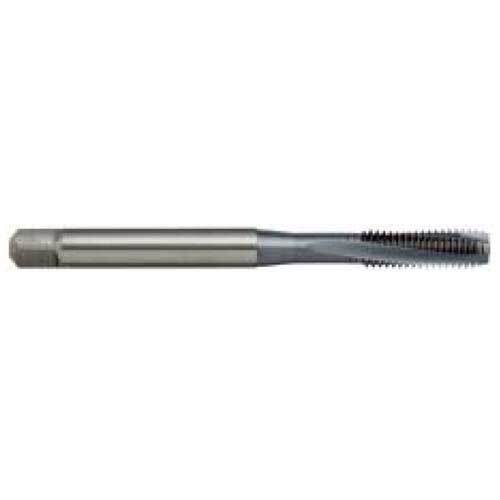

The Sutton T795 is a spiral flute tap (R10 spiral, Ni designation) for UNJF threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 3 sizes from 1/4 x 28 TPI to 3/8 x 24 TPI.
The 10° right-hand spiral flute suits blind holes in tough, short chipping materials, up to 1.5 x D in depth. The slow helix does not transport chips well, so it has no advantage in soft or long chipping materials, especially deeper than 1.5 x d1.
The tap is built to DIN 2184-1.
Where this product is used
- Blind holes.
Design features
- Powder metallurgy, 8% cobalt high speed steel (PM-HSS Co). The cobalt keeps strength and hardness at very high cutting temperatures, which suits heavy duty tapping of materials up to 45 HRC.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 flutes.
- 10° right-hand spiral flute.
- DIN 2184-1 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

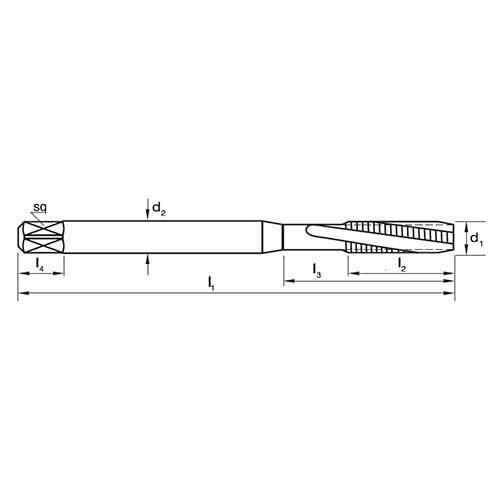

| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T795 0635 | 1/4 x 28 TPI | 28 | 5.6 | 80 | 19 | 7 | 5.5 | 8 | 3 |
| T795 0794 | 5/16 x 24 TPI | 24 | 7 | 90 | 22 | 8 | 6.2 | 9 | 3 |
| T795 0953 | 3/8 x 24 TPI | 24 | 8.6 | 100 | 22 | 10 | 7 | 10 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T795 |
| Type | Spiral flute tap |
| Thread series | UNJF |
| Material | PM-HSS Co |
| Finish | TiCN |
| Designation | Ni |
| Spiral | R10 (10° right-hand) |
| Standard | DIN 2184-1 |
| Flutes | 3 |
| Sizes in this listing | 3 sizes, 1/4 x 28 TPI to 3/8 x 24 TPI |
Related products
Related Sutton taps: T791 UNJF Spiral Flute Tap R15 Ti - PM-HSS Co - TiCN - DIN 2184-1, T787 UNJF Spiral Flute Tap L12 Ti - PM-HSS Co - TiCN - DIN 2184-1.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T795 UNJF Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 2184-1: 5/16 x 24 UNJF
SKU: A0131512 | Model: T7950794
Tap Size 5/16 x 24 UNJF. Sutton T795 Spiral Flute Tap R10 Ni - UNJF
The Sutton T795 is a spiral flute tap (R10 spiral, Ni designation) for UNJF threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 3 sizes from 1/4 x 28 TPI to 3/8 x 24 TPI.
The 10° right-hand spiral flute suits blind holes in tough, short chipping materials, up to 1.5 x D in depth. The slow helix does not transport chips well, so it has no advantage in soft or long chipping materials, especially deeper than 1.5 x d1.
The tap is built to DIN 2184-1.
