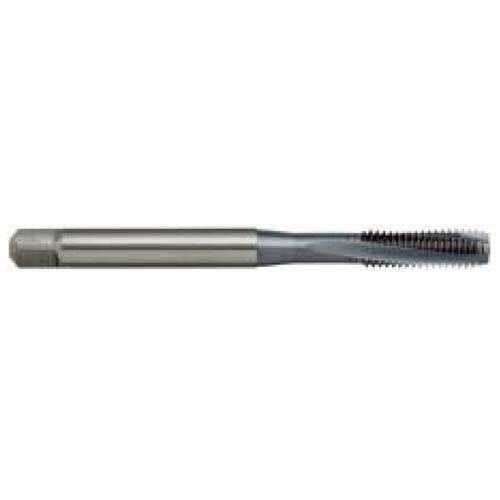

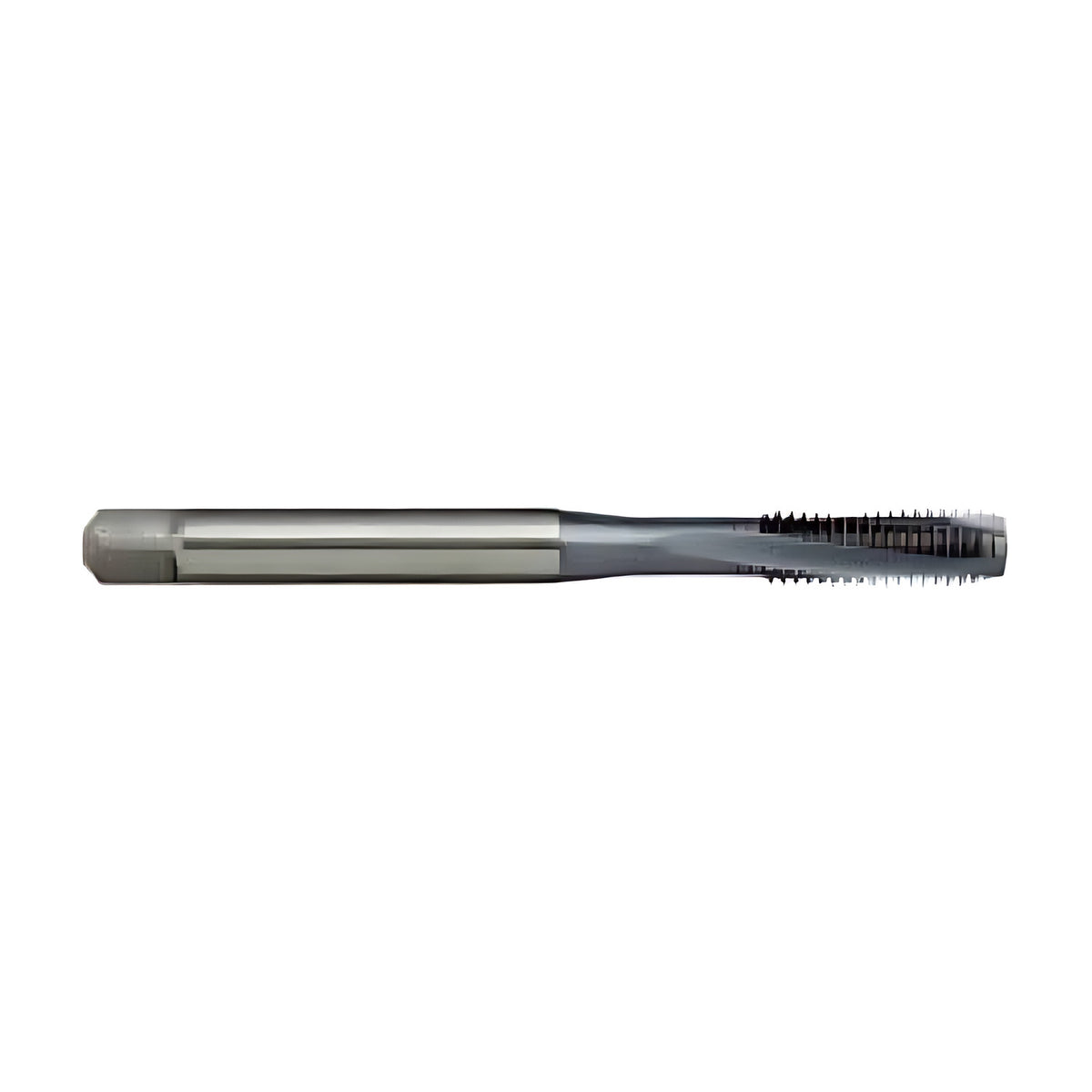

Sutton T794 3/8 x 16 TPI Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 2184-1

The Sutton T794 is a spiral flute tap (R10 spiral, Ni designation) for UNJC threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 3 sizes from 1/4 x 20 TPI to 3/8 x 16 TPI.

The 10° right-hand spiral flute suits blind holes in tough, short chipping materials, up to 1.5 x D in depth. The slow helix does not transport chips well, so it has no advantage in soft or long chipping materials, especially deeper than 1.5 x d1. The chamfer is Form C (3 x P), generally for blind holes.

The thread tolerance is 3BX. The tap is built to DIN 2184-1.

Where this product is used

• For Nickel alloys / age-hardened super alloys >1150 N/mm2.
• Blind or through holes.
• Depths up to approx. 1.5 x d1.

Design features

• Powder metallurgy, 8% cobalt high speed steel (PM-HSS Co). The cobalt keeps strength and hardness at very high cutting temperatures, which suits heavy duty tapping of materials up to 45 HRC.
• TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
• 3 flutes.
• 10° right-hand spiral flute.
• Form C chamfer, 3 x P.
• Thread tolerance 3BX.
• Reinforced cutting geometry.
• DIN 2184-1 construction.

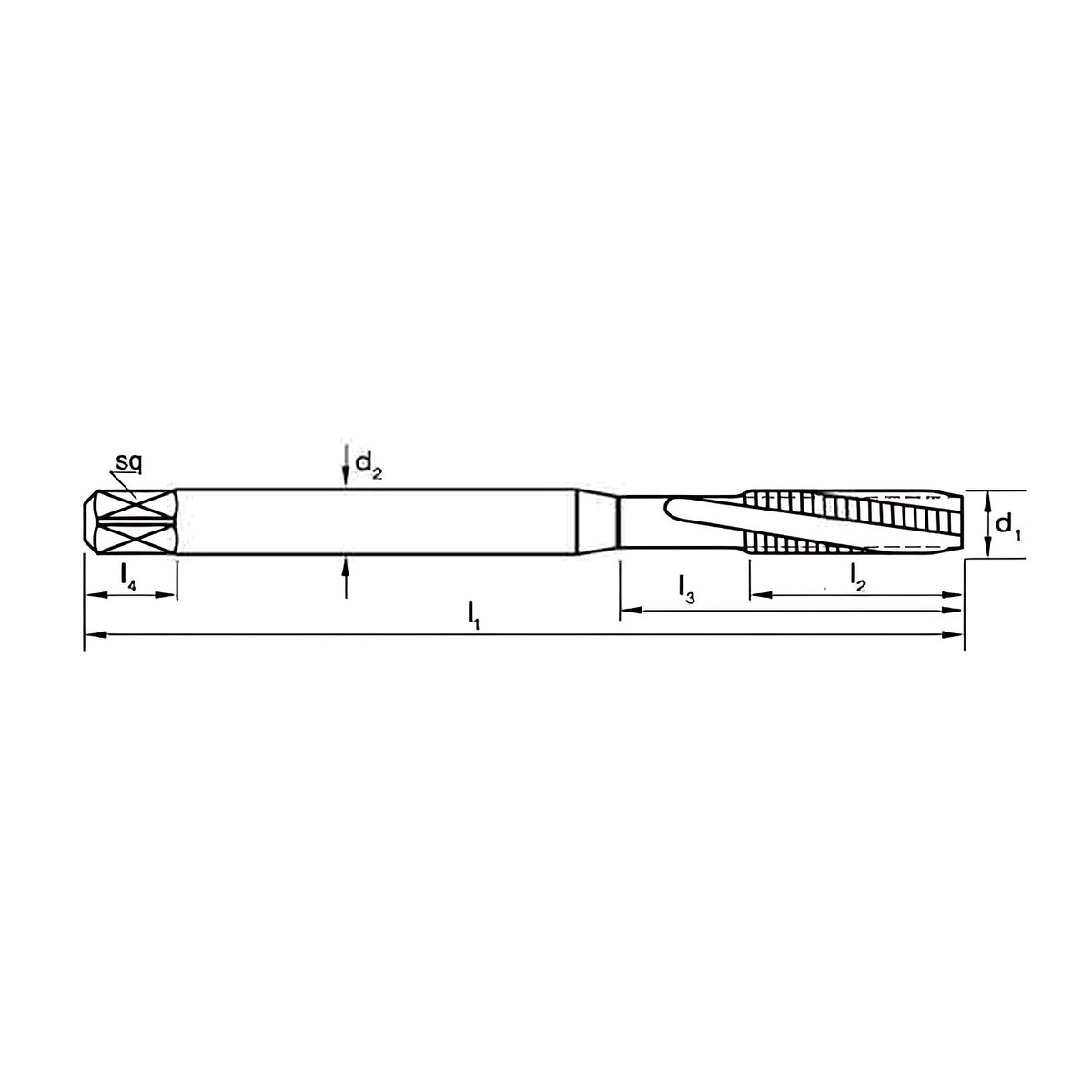

Sizes

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

Key specifications
