Sutton Tools C100 Counterbore - DIN373 Cobalt Steel HSS-E1

Sutton Tools C100 Counterbore - DIN373 Cobalt Steel HSS-E2

Sutton Tools C100 Counterbore - DIN373 Cobalt Steel HSS-E3

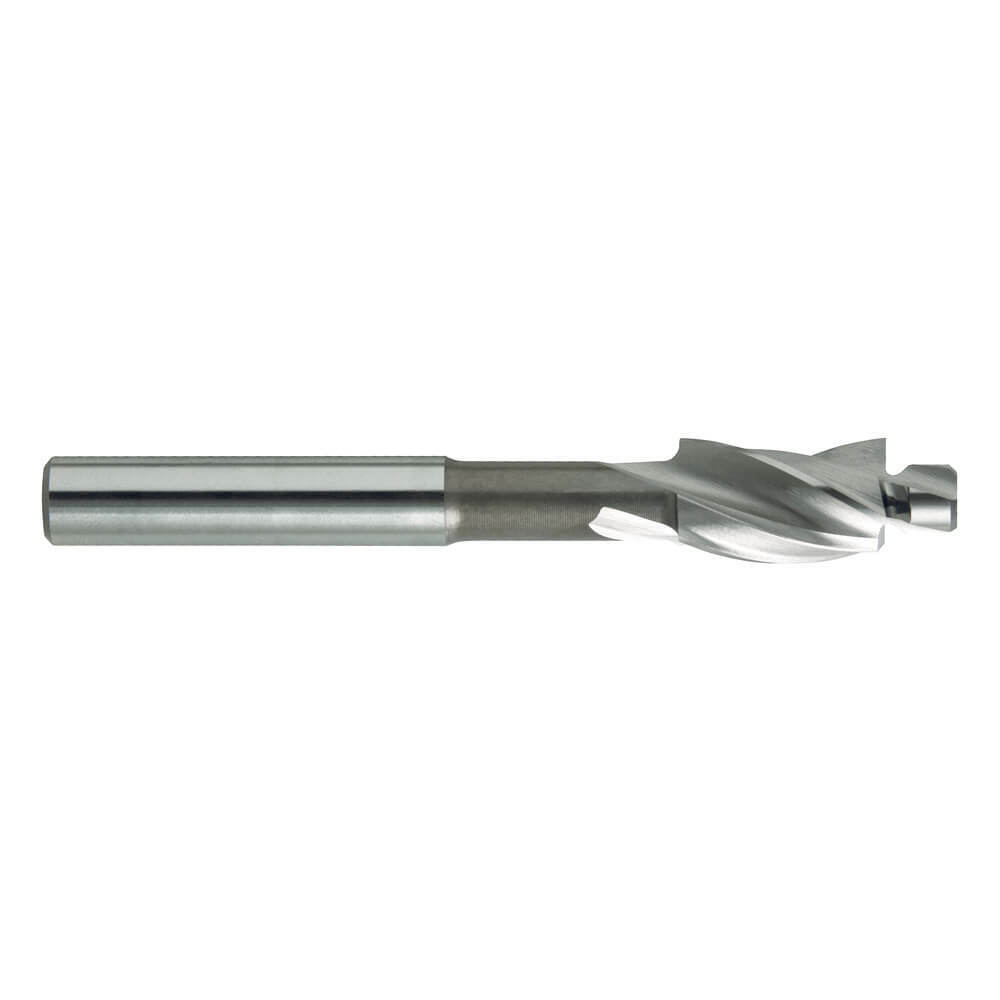

Sutton C1000300 3mm Counterbore DIN373 Cobalt Steel HSS-E

Sutton C1000400 4mm Counterbore DIN373 Cobalt Steel HSS-E

Sutton C1000500 5mm Counterbore DIN373 Cobalt Steel HSS-E

Sutton C1000600 6mm Counterbore DIN373 Cobalt Steel HSS-E

Sutton C1000800 8mm Counterbore DIN373 Cobalt Steel HSS-E

Sutton C1001000 10mm Counterbore DIN373 Cobalt Steel HSS-E

Sutton C1001200 12mm Counterbore DIN373 Cobalt Steel HSS-E

Description +

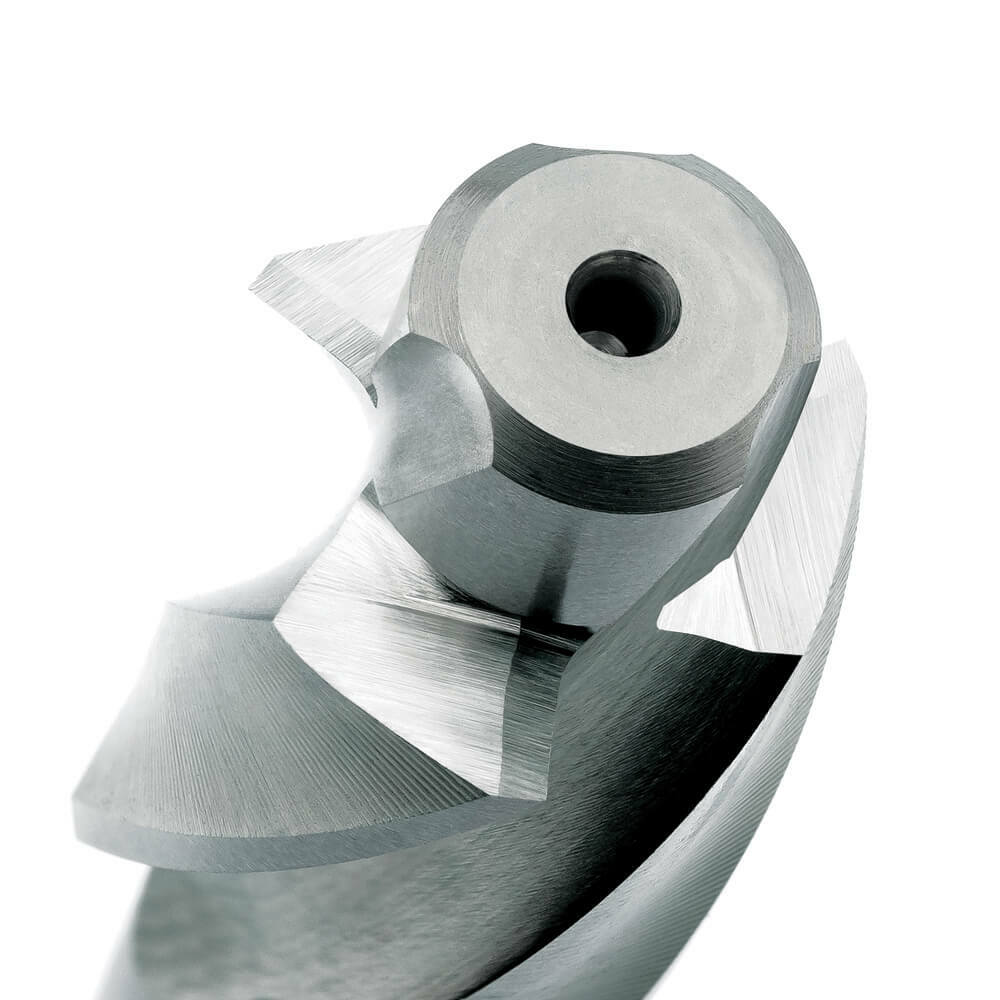

Solid pilot style

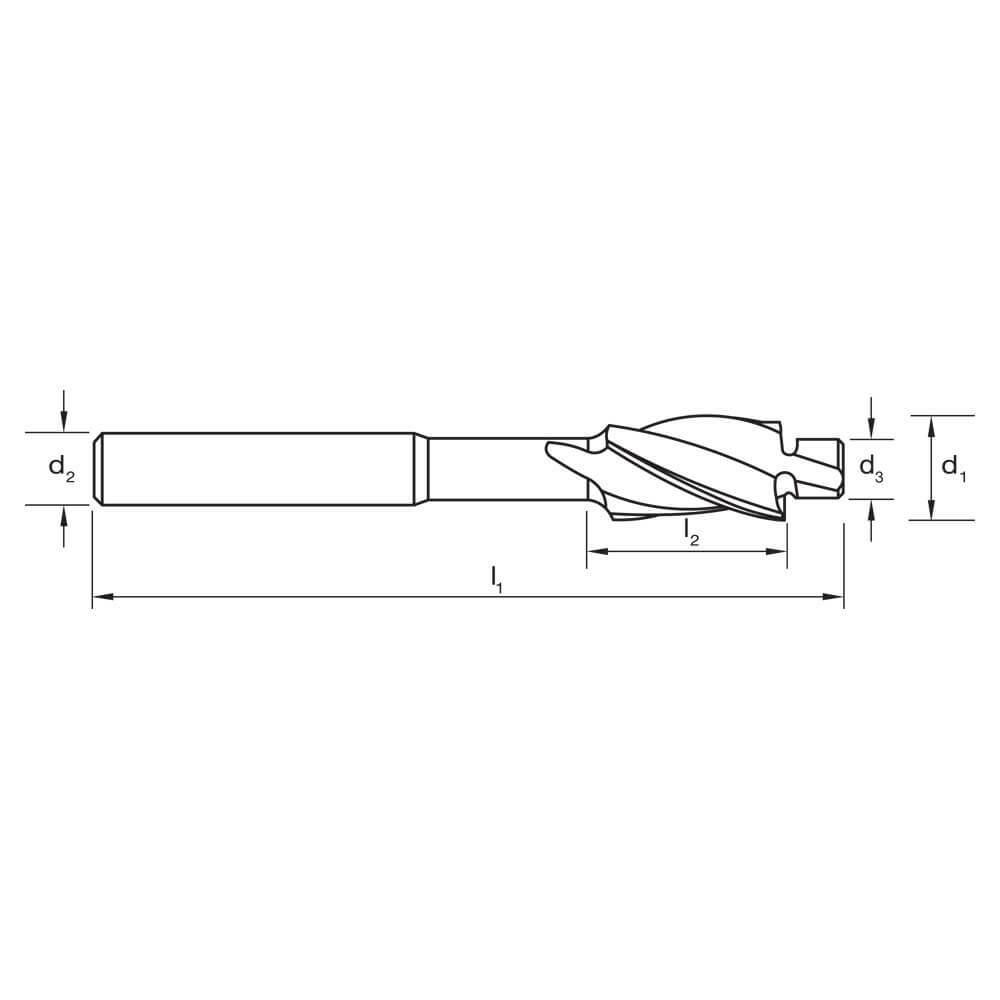

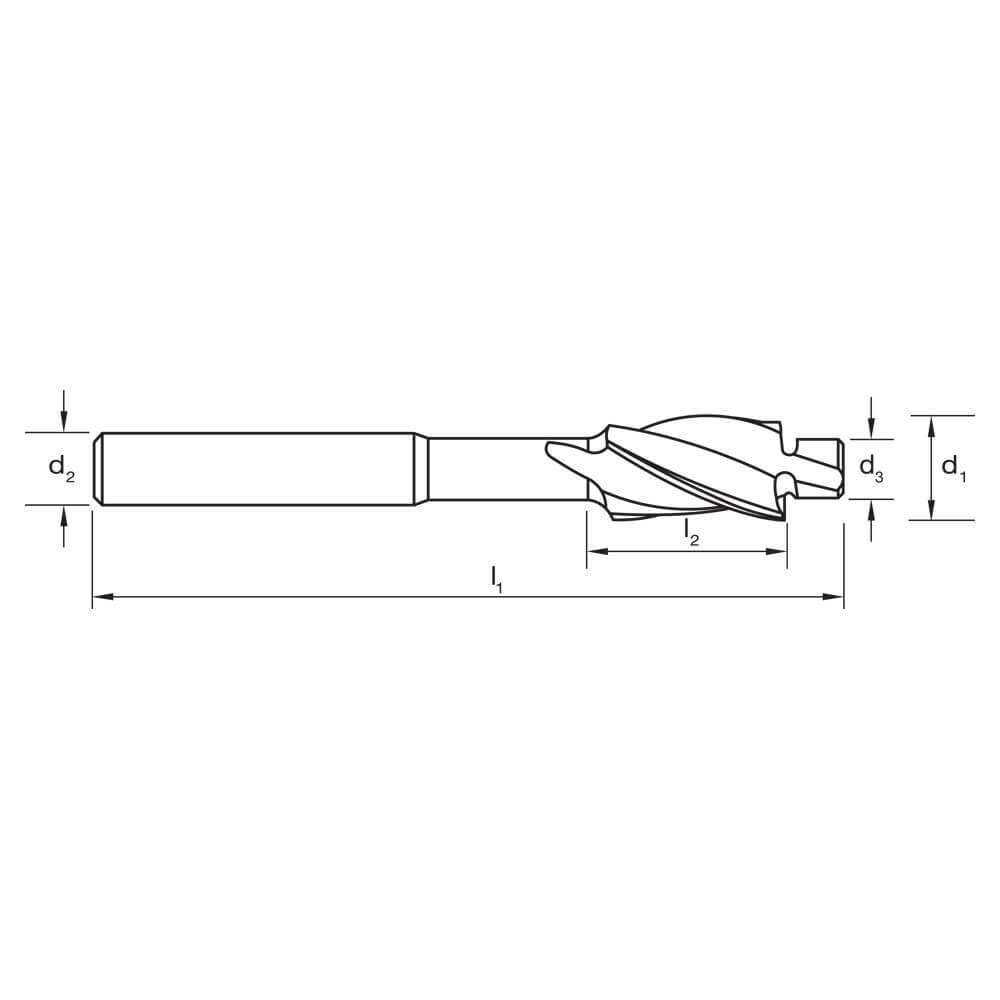

Specifications +

d1 (mm): 6
d2 (mm): 5
d3 (mm): 3.2
l1 (mm): 71
l2 (mm): 14
Size (mm): 3
Pack Quantity: 1
Designation: N
Material: High Speed Steel-Cobalt
Finish: Bright
Shank Tolerance: h6
Standard: DIN 373
Point Type: 180°

Applications

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic – 180 HB

Features & Benefits +

3 flute design
Right-hand cutting
Nominal size to suit metric socket head cap screws
Cobalt High Speed Steel enables counterboring in high alloy steels

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton Tools C100 Counterbore - DIN373 Cobalt Steel HSS-E

SKU: A0002629

Type: Counterbore

$160.12

Inc. GST

Buy It Now

Available

The Sutton Tools C100 Counterbore by Sutton Tools is a Counterbore made of Cobalt High Speed Steel used for Drilling. It provides d1 (mm) 10 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB.
