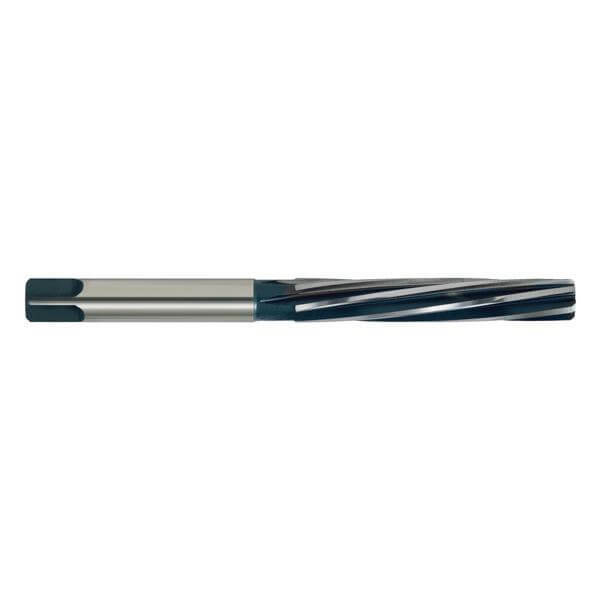

Sutton 3mm Hand Reamer DIN206 - High Speed Steel HSS
Available
Sutton Tools is an Australian-owned manufacturer of precision cutting tools and threading accessories, supplying tradespeople, engineers, and manufacturing operations across Australia and internationally. Their product range spans taps, dies, drills, endmills, holesaws, and related tooling — all engineered to perform consistently under real industrial conditions. AIMS Industrial supplies the Sutton Tools range to Australian businesses as part of our commitment to stocking quality, trusted brands.
Sutton R100 hand reamers are fixed, single-diameter finishing reamers — each size is ground to that exact diameter, not an adjustable range. They are turned by hand with a tap wrench to bring a drilled or bored hole to its final precise diameter and surface finish, where a machine reamer or drill press isn’t being used.
Where this product is used
Used in engineering workshops, toolrooms, and on-site maintenance work for hand-finishing holes to a precise diameter and H7 tolerance, without needing a machine reamer or drill press.
- Hand-finishing drilled or bored holes to H7 tolerance in bearing housings, pin holes, and precision assembly locations.
- Bench and toolroom work calling for an exact, fixed hole diameter.
- Field and maintenance work where a drill press or machine reamer isn’t available or practical.
Key specifications
| Specification | Detail |
|---|---|
| Material | High Speed Steel (HSS) |
| Standard | DIN 206 |
| Finish | Bright |
| Flute form | 10° left-hand spiral |
| Hole tolerance | H7 |
| Size range | 3.0mm – 25.0mm (0.5mm increments to 15mm, 1mm increments above) |
| Recommended materials | Steel, stainless steel, cast iron, non-ferrous metals, hard materials |
Selecting the right option
Select the reamer matching the exact finished hole diameter required — this is a fixed-size reamer, so choose the size precisely rather than assuming an adjustment range. Drill or bore the hole undersize first (typically 0.1–0.25mm undersize, depending on diameter), then hand-ream using cutting fluid and a steady, non-reversing turn with a tap wrench. Working to imperial drawings? See our matching R100 Hand Reamer ISO236 range.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
3
Model Number: R1000300
-
3.5
Model Number: R1000350
-
4
Model Number: R1000400
-
4.5
Model Number: R1000450
-
5
Model Number: R1000500
-
5.5
Model Number: R1000550
-
6
Model Number: R1000600
-
6.5
Model Number: R1000650
-
7
Model Number: R1000700
-
7.5
Model Number: R1000750
-
8
Model Number: R1000800
-
8.5
Model Number: R1000850
-
9
Model Number: R1000900
-
9.5
Model Number: R1000950
-
10
Model Number: R1001000
-
10.5
Model Number: R1001050
-
11
Model Number: R1001100
-
11.5
Model Number: R1001150
-
12
Model Number: R1001200
-
12.5
Model Number: R1001250
-
13
Model Number: R1001300
-
13.5
Model Number: R1001350
-
14
Model Number: R1001400
-
14.5
Model Number: R1001450
-
15
Model Number: R1001500
-
16
Model Number: R1001600
-
17
Model Number: R1001700
-
18
Model Number: R1001800
-
19
Model Number: R1001900
-
20
Model Number: R1002000
-
21
Model Number: R1002100
-
22
Model Number: R1002200
-
23
Model Number: R1002300
-
24
Model Number: R1002400
-
25
Model Number: R1002500
