Description
Description
Sutton Tools Machine Reamers
- The R101 is a machine reamer and would be used with a taper shank arbor.
- Used mainly in machine shops/Engineering shops.
Specifications
Specifications
Specifications
- Designation: N
- Material: High-Speed Steel
- Finish: Bright
- Helix Angle: L10
- Type: Machine
- Standard: DIN 208
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
Features & Benefits
Features & Benefits
Features
- Machine use
- Suitable for toolroom & workshop use
- Produces clean, accurate holes, to an H7 tolerance
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

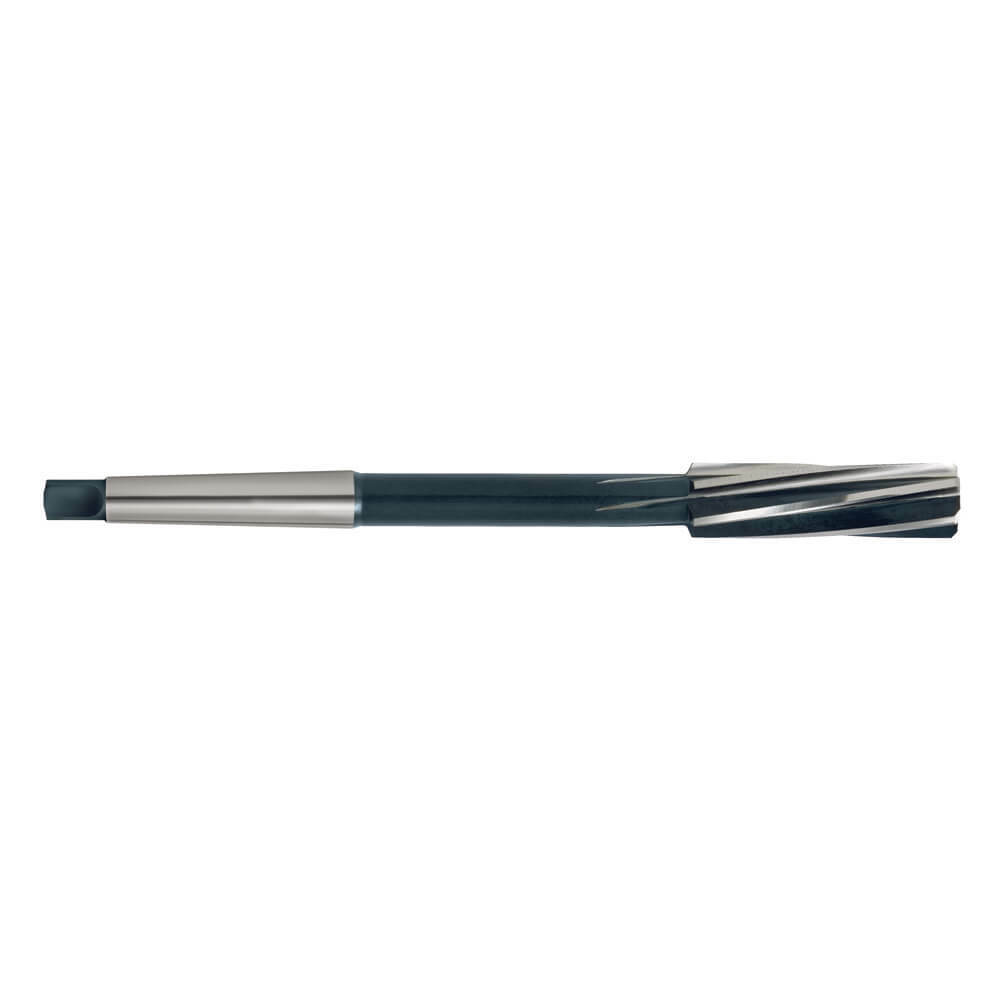

Sutton Tools R101 Morse Taper Reamer (Machine) DIN208 HSS
Sutton Tools R101 Morse Taper Reamer (Machine) DIN208 HSS
SKU: A0012168
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton Tools R101 Morse Taper Reamer (Machine) DIN208 HSS by Sutton Tools is a Morse Taper Shank Machine Reamer made of High-Speed Steel. It offers an H7 tolerance for clean, accurate holes and is suitable for toolroom and workshop use.
