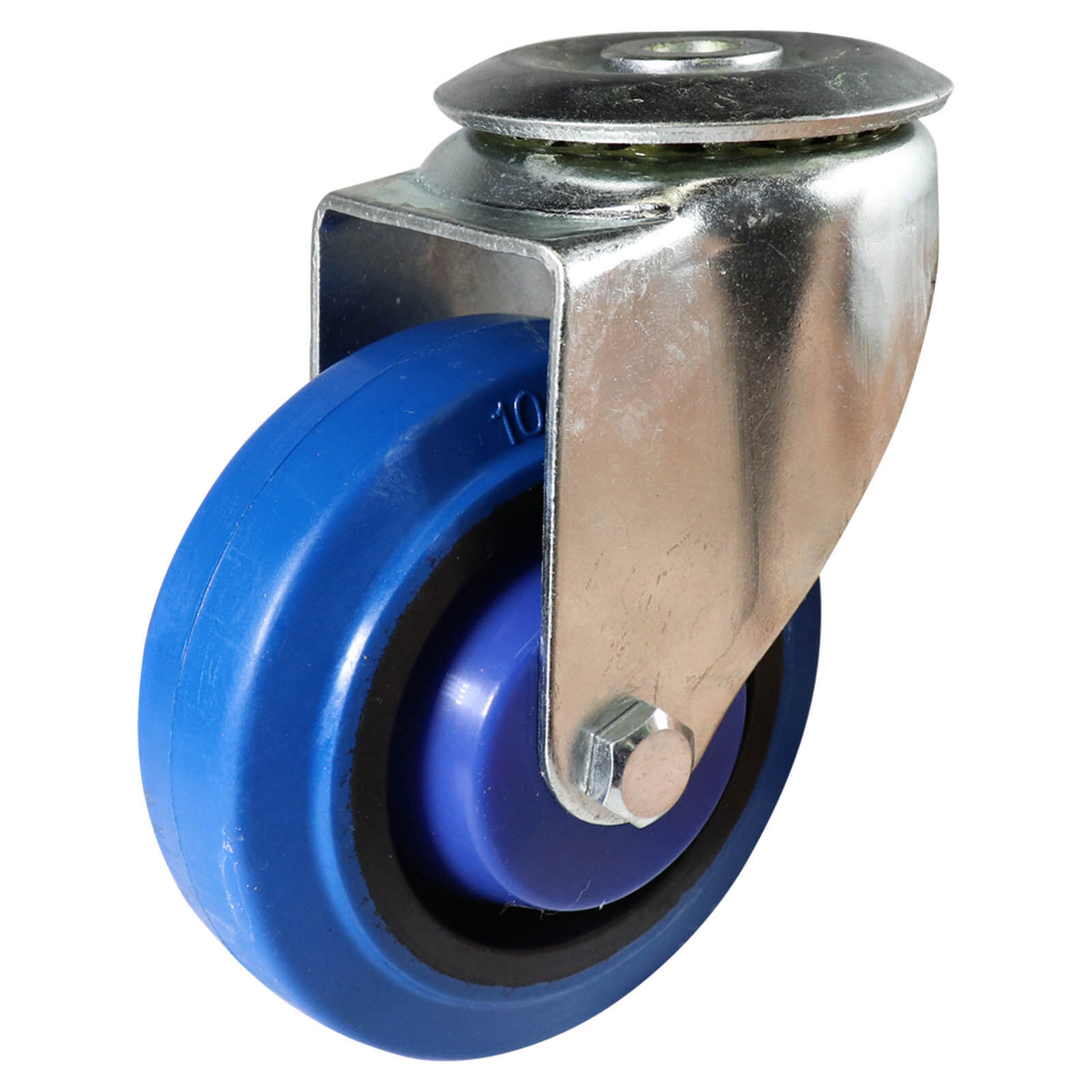

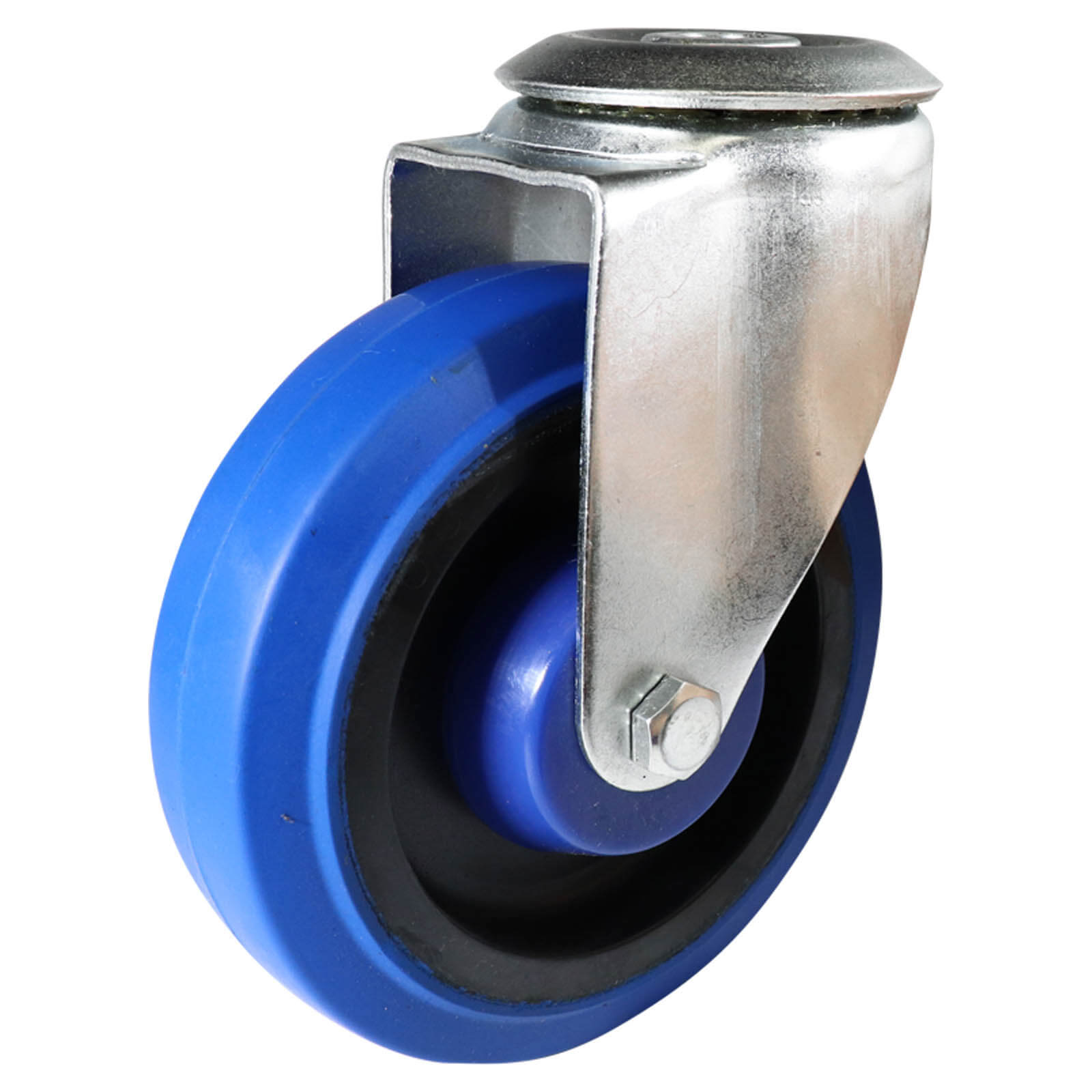

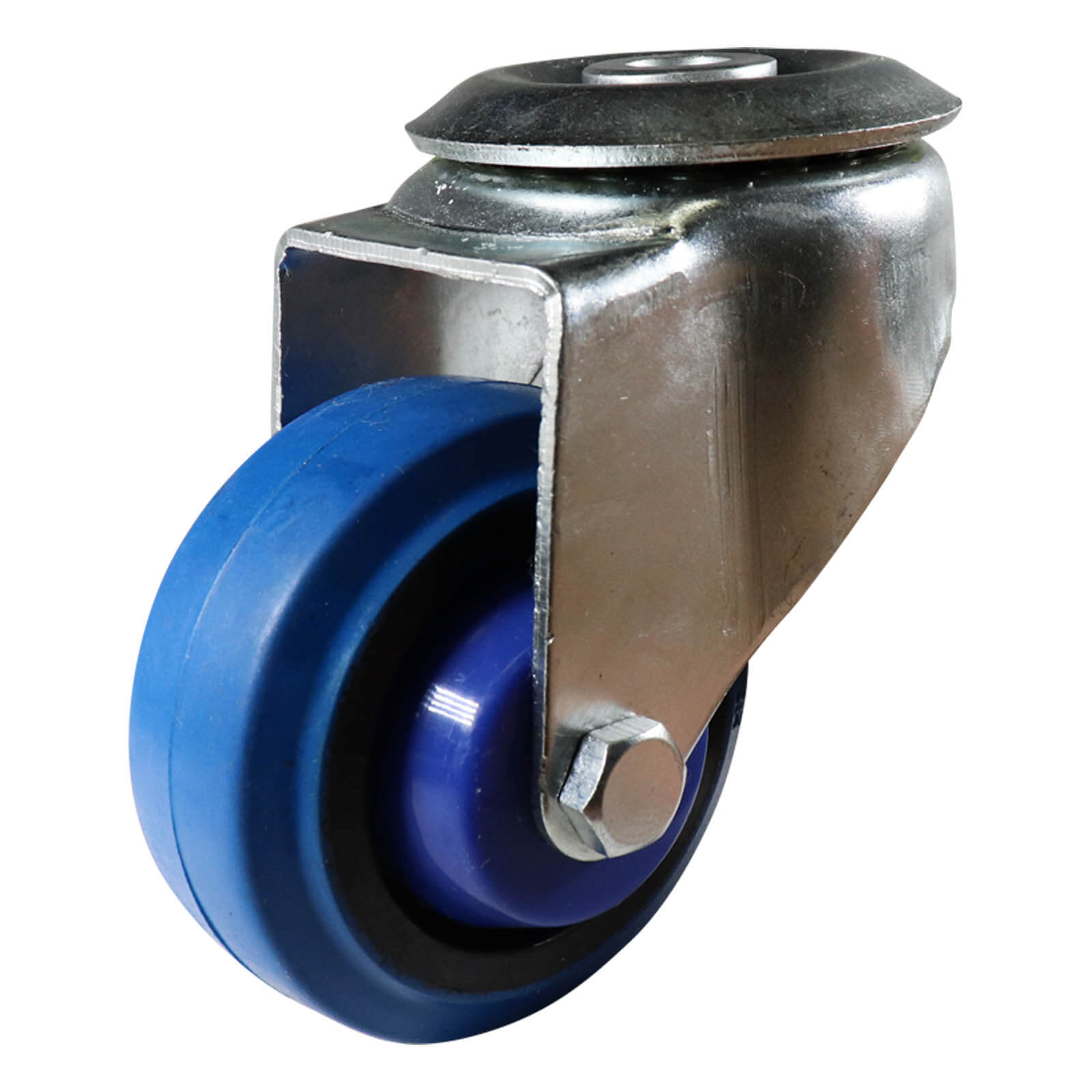

EasyRoll i6 series swivel bolt hole castor I61A15R75

The EasyRoll I6 series swivel bolt hole castor is fitted with a blue elastic rubber wheel and is available in 75, 100 and 125mm wheel diameters. Load capacity is 90kg to 140kg per castor depending on the wheel size. It fits with a single bolt through the top hole.

The I6 series is suited to general trolleys, heavy capacity shopfittings and medical equipment. It has double headset bearings and a bright zinc finish.

Where this product is used

• General trolleys
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Pharmaceutical equipment
• Materials handling equipment

Features

• Blue elastic rubber wheel in 75, 100 and 125mm
• Load capacity 90kg to 140kg per castor
• Double headset bearings for strength and improved manoeuvrability
• Headset seals and wheel caps protect and extend the life of the bearings
• Thick steel construction withstands high shock loads
• Non-marking elastic rubber tyres absorb shock loads while reducing friction and operating noise
• Resilient rubber wheels resist flat-spotting
• Bright zinc finish

Key specifications

Choosing the right option

Check the bolt size and the mounting hole or tube in your equipment before you order. Blue rubber wheels: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It is the highest shock absorbency and suited to quality flooring and rougher surfaces. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
