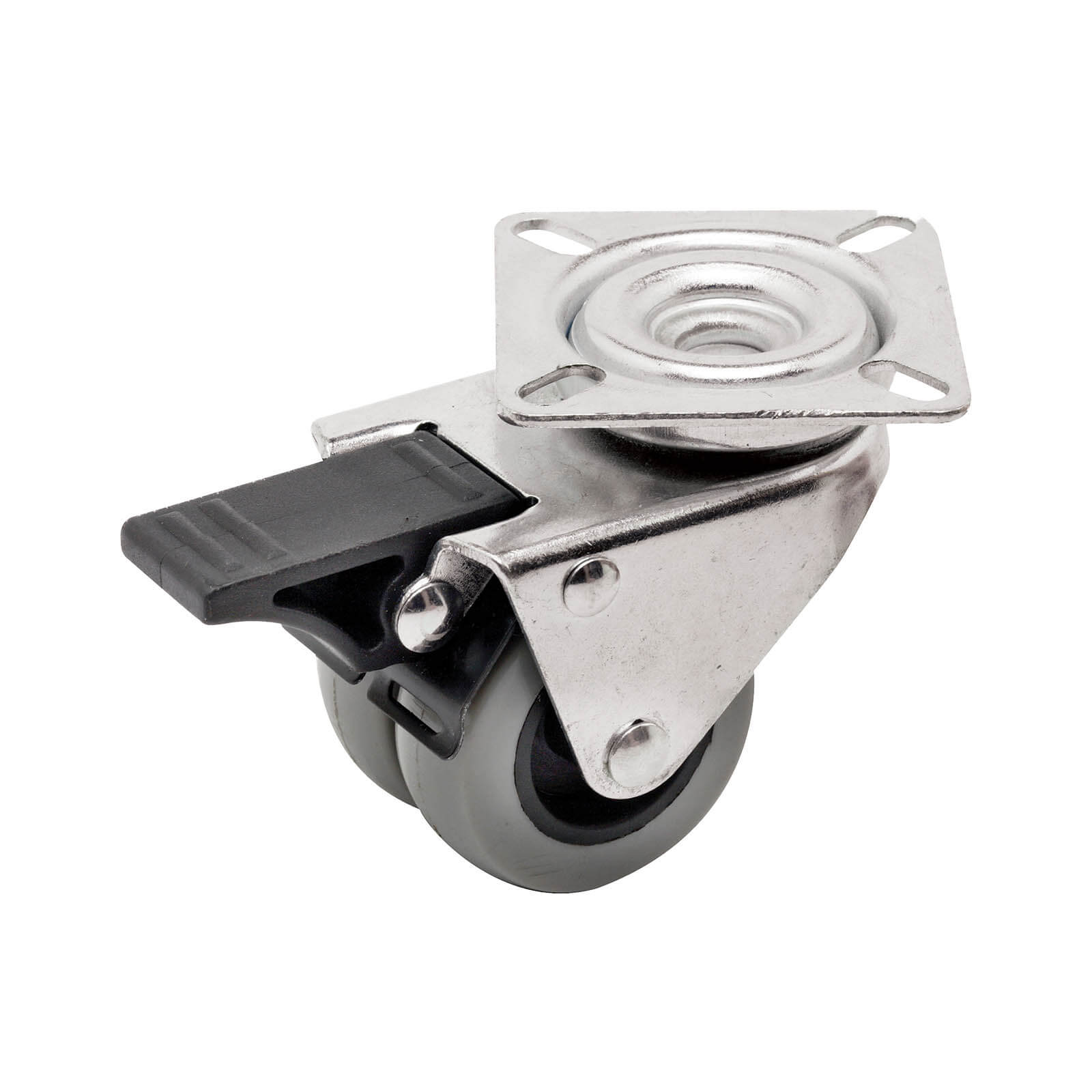

EasyRoll g2 series swivel plate castor with or without brake
Available
The EasyRoll G2 series swivel plate castor with or without brake is fitted with a grey rubber twin wheel and is available in a 50mm wheel diameter. Load capacity is 70kg per castor. The top plate is 60 x 60mm with hole centres of 43 x 43mm.
The G2 series is suited to racks and display cabinets, sales counters and chairs and beds. It has double headset bearing and a bright zinc finish.
Where this product is used
- Racks and display cabinets
- Sales counters
- Chairs and beds
- Kitchen island benches
- Medical and office furniture
- Patient lifters
Features
- Grey rubber twin wheel in 50mm
- Load capacity 70kg per castor
- Wheel brake stops the wheel rotating, and the castor can still swivel
- Twin wheel design for good manoeuvrability over most surfaces
- Double headset bearing for a smooth swivelling action
- Bright zinc finish
- High load capacity with a low overall height (plate mount)
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | G2 |
| Mounting | Swivel plate |
| Brake | No brake / Wheel brake |
| Wheel | Grey Rubber twin wheel |
| Wheel diameter | 50mm |
| Load capacity per castor | 70kg |
| Overall height | 72mm |
| Plate size | 60 x 60mm |
| Hole centres | 43 x 43mm |
| Bearings | Double headset bearing |
| Finish | Bright zinc |
Choosing the right option
A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A wheel brake only stops the wheel from rotating, and the castor can still swivel freely. Grey rubber wheels: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It suits quality flooring and quiet or clean areas. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll G2 Series Swivel Stem Castor - Rubber Twin Wheel, Grey, EasyRoll G2 Series Swivel Stem Castor with Brake - Rubber Twin Wheel, Grey, EasyRoll G2 Series Swivel Bolt Hole Castor - Rubber Twin Wheel, Grey, EasyRoll G2 Series Swivel Bolt Hole Castor with Brake - Rubber Twin Wheel, Grey.
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) |
|---|---|---|---|---|---|
| Wheel brake, 50mm | G22W33G50 | 50 | 2 x 18 | 70 | 72 |
| No brake, 50mm | G22A33G50 | 50 | 2 x 18 | 70 | 72 |
