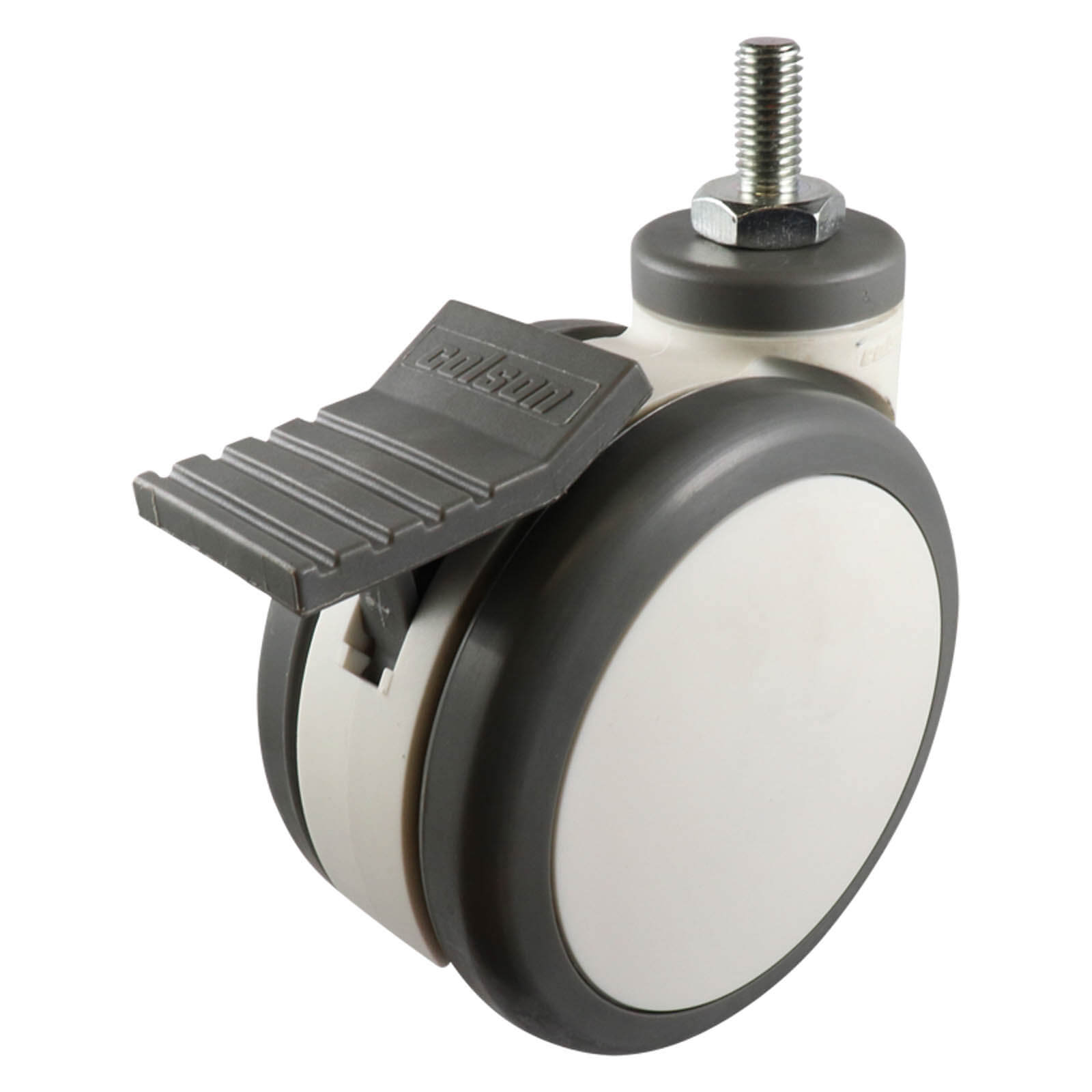

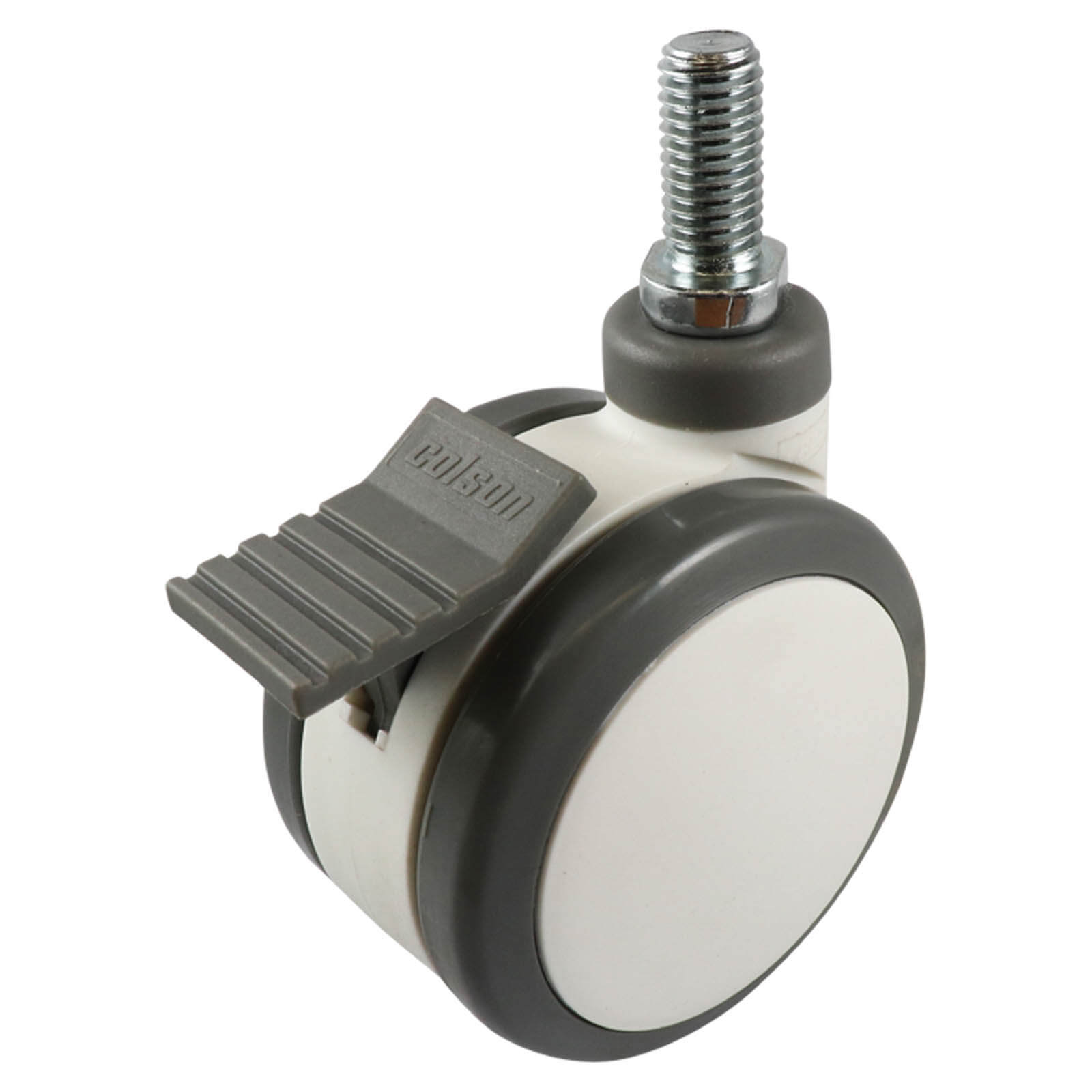

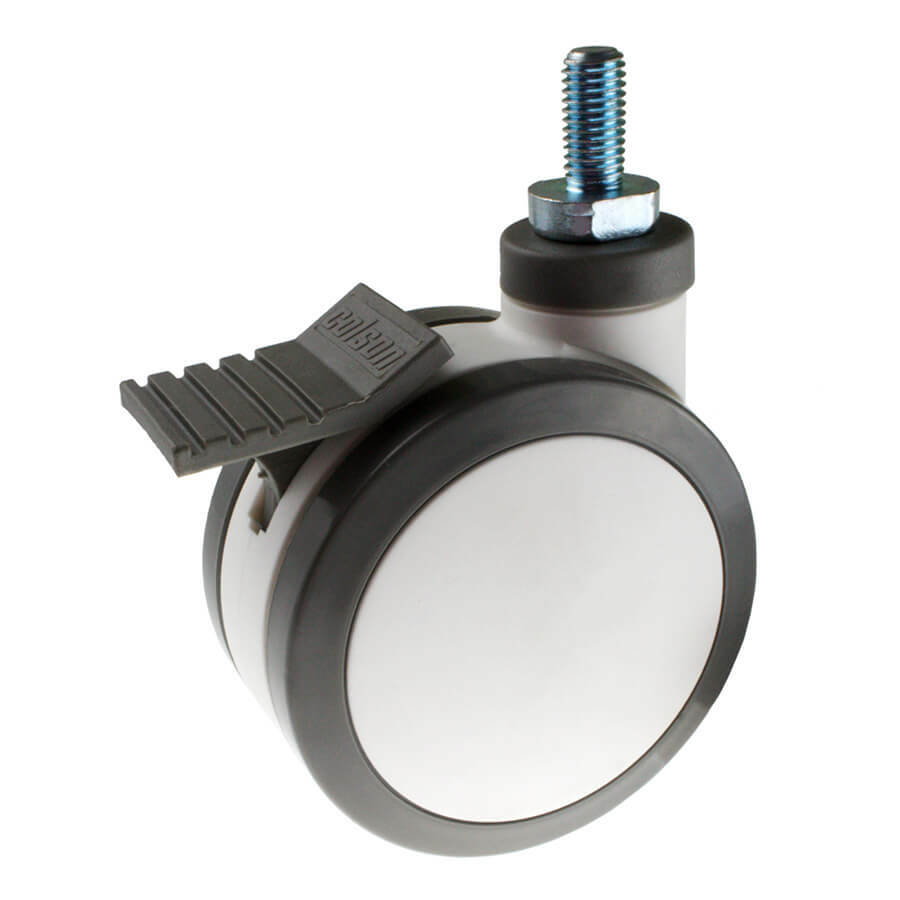

EasyRoll h6 series swivel threaded stem castor with brake
Available
The EasyRoll H6 series swivel threaded stem castor with brake is fitted with a white polyurethane twin wheel and is available in 75, 100 and 125mm wheel diameters. Load capacity is 75kg to 110kg per castor depending on the wheel size. It has a threaded stem (M12 x 25) fitted at the top.
The H6 series is suited to medical trolleys and equipment, hospital beds and medicine trolleys. It has precision bearings.
Where this product is used
- Medical trolleys and equipment
- Hospital beds
- Medicine trolleys
- Food delivery trolleys
- Electronic equipment
- Patient lifters
Features
- White polyurethane twin wheel in 75, 100 and 125mm
- Load capacity 75kg to 110kg per castor
- Total lock brake stops both swivel and wheel rotation
- Threaded stem castor developed for medical and institutional applications
- Precision bearings to minimise the push effort required
- Designed to protect the axle and bearings from hair and water
- Durable urethane tread
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | H6 |
| Mounting | Swivel threaded stem |
| Brake | Total lock |
| Wheel | White Polyurethane twin wheel |
| Wheel diameter | 75, 100 and 125mm |
| Tread width | 59mm |
| Load capacity per castor | 75kg to 110kg |
| Overall height | 95mm to 152mm |
| Bolt size | M12 x 25 |
| Bearings | Precision bearings |
Choosing the right option
Check the bolt size and the mounting hole or tube in your equipment before you order. A total lock brake stops both the swivel action and the wheel rotation, which is the safest of all brake types. Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll H6 Series Swivel Stem Castor - Polyurethane Twin Wheel, White, EasyRoll G6 Series Swivel Stem Castor - Urethane Wheel, Grey, 150mm, EasyRoll G6 Series Swivel Stem Castor with Brake - Urethane Wheel, Grey, 150mm.
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) |
|---|---|---|---|---|---|
| 75mm | H64T38K75 | 75 | 59 | 75 | 95 |
| 100mm | H64T38K100 | 100 | - | - | 127 |
| 125mm | H64T38K125 | 125 | - | 110 | 152 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
EasyRoll H6 Series Swivel Stem Castor with Brake - Polyurethane Twin Wheel, White: 75
SKU: A0049280 | Model: H64T38K75
EasyRoll H64T38K75: h6 series swivel threaded stem castor with brake, wheel diameter (mm) 75. Load Capacity (kg): 75. Tyre/Wheel Material: Urethane.
