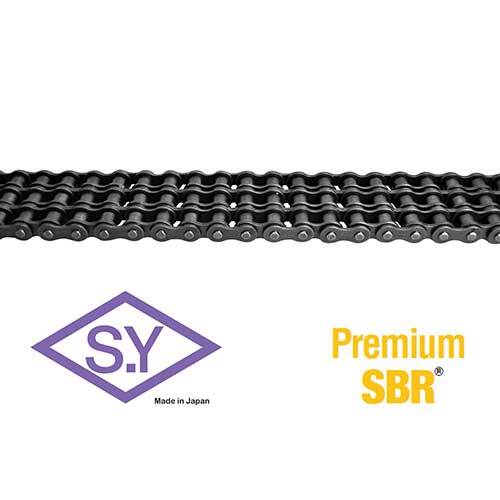

SY ASA Roller Chain Triplex 40-160, 40

SY ASA (ANSI) triplex roller chain from Sugiyama Chain Co., Ltd. SBR (Solid Bushing & Roller) is the premium standard roller chain from Sugiyama. Its SBR ANSI chain meets or exceeds ANSI roller chain standard B29.1.

Made in Japan by Sugiyama Chain Co., Ltd.

Where this product is used

• Motor and gearbox chain drives
• Conveyors and material handling
• Agricultural and farm machinery
• Packaging and production-line machinery
• Replacing worn or broken chain on existing drives

Features

• Solid bushings and solid rollers
• Specially treated pins and bushings
• Stringently controlled heat treatment process
• Meets or exceeds ANSI B29.1, per Sugiyama
• Made in Japan by Sugiyama Chain Co., Ltd

Key specifications

Choosing the right option

For ASA (ANSI) chain the number is the pitch in eighths of an inch: 40 is 4/8" (1/2"), 60 is 6/8" (3/4"), 100 is 10/8" (1-1/4"). The figure after the dash is the number of strands.

SBR is the standard choice for most drives and conveyors. Step up to H, HE or SUP H where loads are heavy or shocked, or to Aqua-Proof, stainless steel or self-lube chain where the environment calls for it.

ASA and BS chain of the same pitch are not the same: for example 12.7mm pitch ASA 40 has a 7.95mm roller width and 7.92mm roller, while 12.7mm pitch BS 08B has a 7.75mm roller width and 8.51mm roller (Sugiyama SBR tables). Match the chain to the sprocket standard.

Tensile strength is the load at which the chain breaks in a single pull and is not a working load. As a rule of thumb, never load roller chain above 50% of its ultimate tensile strength, even for one cycle, and to apply the multiple-strand factor to multiple-strand chain.

Lubrication guide: manual lubrication below 15 m/min chain speed, drip lubrication from 15 to 30 m/min, and oil bath from 30 m/min.

Where a single-pitch offset link is used, the load figures allow for a 35% reduction in fatigue strength.

Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.

Matching connecting links: SY ASA Roller Chain Connecting Link Triplex 40-160.

Matching offset links: SY ASA Roller Chain Offset Link (Half Link) Triplex 40-160.
