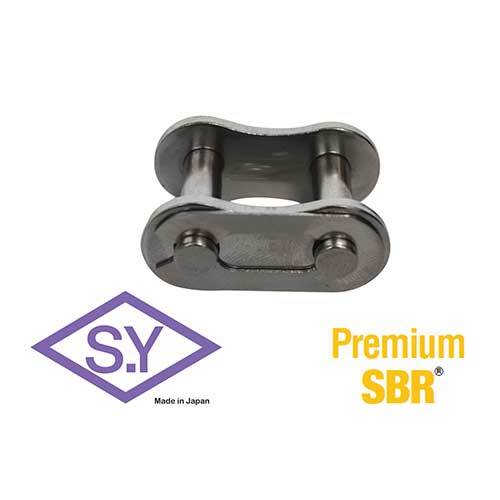

SY Stainless Steel BS Roller Chain Connecting Link Simplex
Available
SY connecting links join the ends of a length of stainless steel BS simplex roller chain into a continuous loop. Each size here is matched to the SY chain of the same number, so select the link with the same chain number, strand count and series as your chain.
Made in Japan by Sugiyama Chain Co., Ltd. SS series chain has every component made from 304 stainless steel for corrosion and temperature resistance.
Where this product is used
- Highly corrosive environments
- Extreme-temperature environments
- Wet and washdown areas where carbon steel would corrode
Features
- Matched to the SY chain of the same number and series
- Joins the chain ends into a continuous loop
- Made from 304 stainless steel, as the SS chain
- Made in Japan by Sugiyama Chain Co., Ltd
Key specifications
| Specification | Detail |
|---|---|
| Brand | SY (Sugiyama Chain Co., Ltd) |
| Series | SS stainless steel |
| Standard | BS (ISO 606) |
| Strands | Simplex |
| Component | Connecting link |
| Chain sizes | 06B to 16B (5) |
| Pitch | 3/8 in to 1" (9.525 to 25.4mm) |
| Material | 304 stainless steel (all components) |
| Country of origin | Japan |
Choosing the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
Choose stainless steel where corrosion or temperature rules out carbon steel. Sugiyama can supply 316 and 600 stainless on request.
Use the clip or pin supplied with the link.
Stainless steel chain is supplied unlubricated. Lubricating it before use, except where it is exposed to water, because it can show articulation problems early on if run dry.
The elastic limit of stainless steel chain is 30% of its tensile strength, so never load it beyond the maximum allowable load.
Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.
Matching chain: SY Stainless Steel BS Roller Chain Simplex 06B-16B, 10 ft Box.
Matching offset links: SY Stainless Steel BS Roller Chain Offset Link (Half Link) Simplex 06B-16B.
| Option | Part number | SKU |
|---|---|---|
| 06BSS | A0158194 | |
| 08BSS | A0158195 | |
| 10BSS | A0158196 | |
| 12BSS | A0158197 | |
| 16BSS | A0158198 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
SY Stainless Steel BS Roller Chain Connecting Link Simplex 06B-16B: 06BSS
SKU: A0158194 | Model: 06B-1SS-CL/SY
SY 06B-1 SS stainless steel BS simplex roller chain connecting link, 3/8 in pitch.
