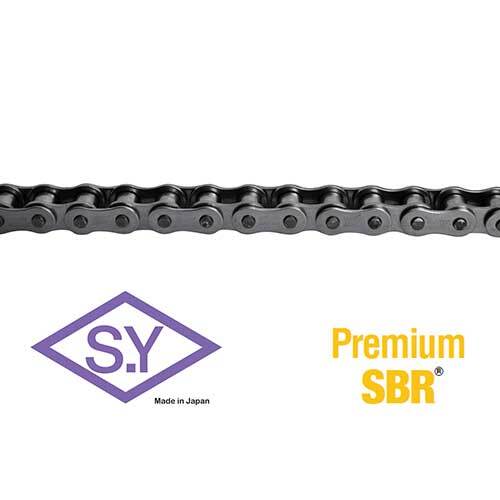

SY Stainless Steel BS Roller Chain Simplex 06B-16B, 06BSS
Available
SY BS (ISO 606) simplex roller chain from Sugiyama Chain Co., Ltd. SS series chain has every component made from 304 stainless steel for corrosion and temperature resistance.
Made in Japan by Sugiyama Chain Co., Ltd.
Where this product is used
- Highly corrosive environments
- Extreme-temperature environments
- Wet and washdown areas where carbon steel would corrode
Features
- All components in 304 stainless steel
- Used in highly corrosive or extreme-temperature environments
- Supplied unlubricated
- Made in Japan by Sugiyama Chain Co., Ltd
- Supplied in boxed lengths of 10 ft (3.05 m)
Key specifications
| Specification | Detail |
|---|---|
| Brand | SY (Sugiyama Chain Co., Ltd) |
| Series | SS stainless steel |
| Standard | BS (ISO 606) |
| Strands | Simplex |
| Component | Chain |
| Chain sizes | 06B to 16B (5) |
| Pitch | 3/8 in to 1" (9.525 to 25.4mm) |
| Material | 304 stainless steel (all components) |
| Supplied as | Boxed lengths of 10 ft (3.05 m) |
| Country of origin | Japan |
Choosing the right option
For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
Choose stainless steel where corrosion or temperature rules out carbon steel. Sugiyama can supply 316 and 600 stainless on request.
ASA and BS chain of the same pitch are not the same: for example 12.7mm pitch ASA 40 has a 7.95mm roller width and 7.92mm roller, while 12.7mm pitch BS 08B has a 7.75mm roller width and 8.51mm roller (Sugiyama SBR tables). Match the chain to the sprocket standard.
Lubrication guide: manual lubrication below 15 m/min chain speed, drip lubrication from 15 to 30 m/min, and oil bath from 30 m/min.
Stainless steel chain is supplied unlubricated. Lubricating it before use, except where it is exposed to water, because it can show articulation problems early on if run dry.
The elastic limit of stainless steel chain is 30% of its tensile strength, so never load it beyond the maximum allowable load.
Where a single-pitch offset link is used, the load figures allow for a 35% reduction in fatigue strength.
Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.
Matching connecting links: SY Stainless Steel BS Roller Chain Connecting Link Simplex 06B-16B.
Matching offset links: SY Stainless Steel BS Roller Chain Offset Link (Half Link) Simplex 06B-16B.
| Option | Part number | SKU |
|---|---|---|
| 06BSS | A0158189 | |
| 08BSS | A0158190 | |
| 10BSS | A0158191 | |
| 12BSS | A0158192 | |
| 16BSS | A0158193 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
SY Stainless Steel BS Roller Chain Simplex 06B-16B, 10 ft Box: 06BSS
SKU: A0158189 | Model: 06B-1SS/SY
SY 06B-1 SS stainless steel BS simplex roller chain, 3/8 in pitch, 10 ft box.
