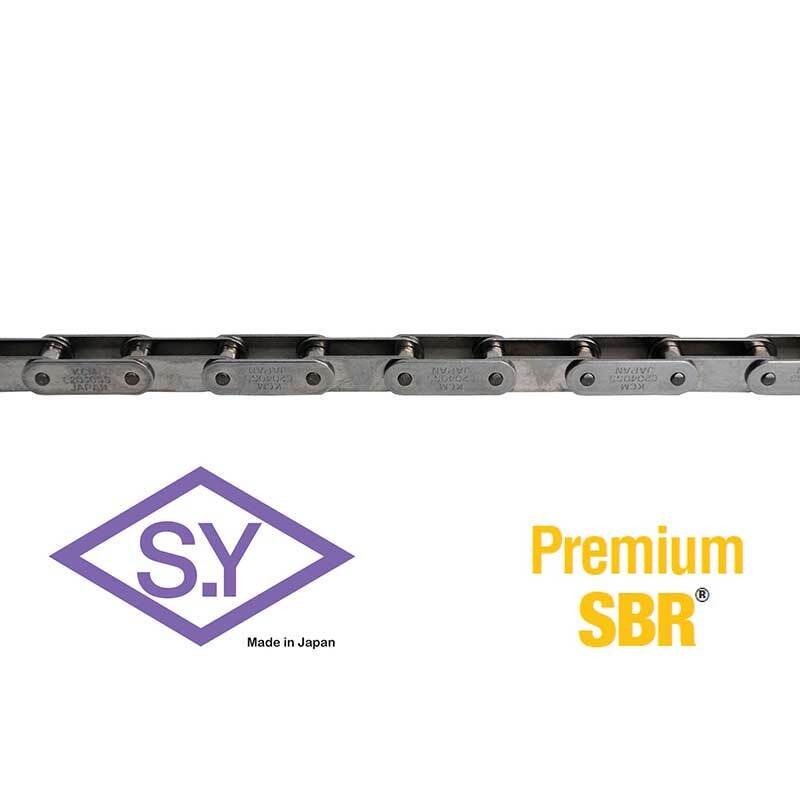

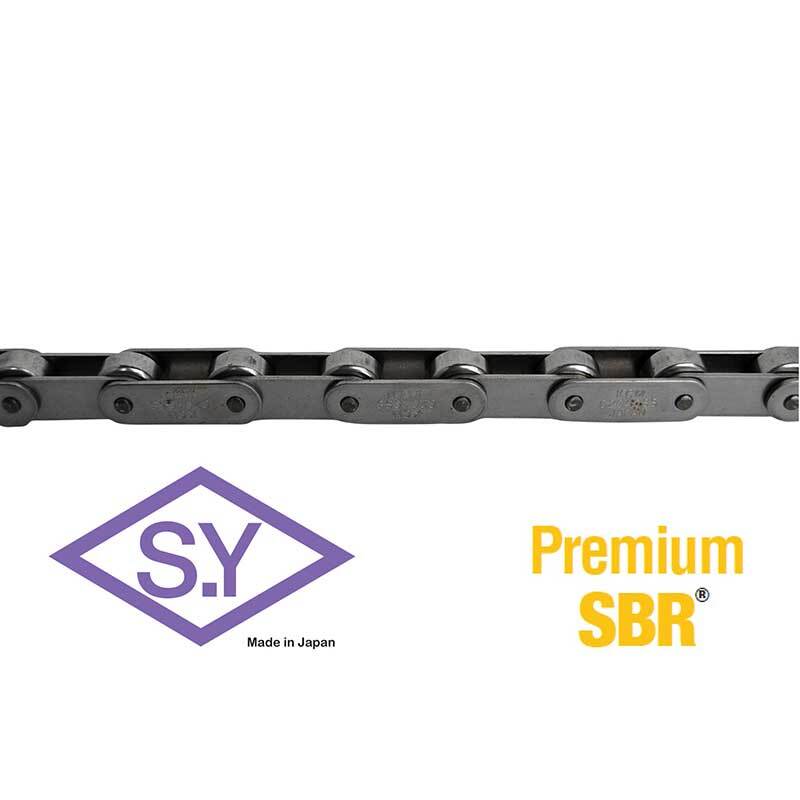

SY C2060H SS Stainless Steel ASA Double Pitch Roller Chain, 1-1/2 in Pitch, 10 ft Box

SY ASA double pitch roller chain from Sugiyama Chain Co., Ltd. SS series chain has every component made from 304 stainless steel for corrosion and temperature resistance.

Made in Japan by Sugiyama Chain Co., Ltd. AIMS Industrial supplies it in boxed lengths of 10 ft (3.05 m). This listing covers 3 sizes (C2060H to C2080H), and the table below carries Sugiyama's published dimensions and strength figures for every size.

Where this product is used

• Highly corrosive environments
• Extreme-temperature environments
• Wet and washdown areas where carbon steel would corrode

Features

• All components in 304 stainless steel
• Used in highly corrosive or extreme-temperature environments
• Supplied unlubricated
• Made in Japan by Sugiyama Chain Co., Ltd
• Dimensions and strength figures taken from Sugiyama's published tables

Key specifications

Available sizes

Selecting the right option

Double pitch chain has twice the pitch of the matching standard chain. S roller types are standard rollers and R types are oversize carrier rollers.

Choose stainless steel where corrosion or temperature rules out carbon steel. The table lists maximum allowable load only, so size the chain on that figure rather than on a carbon steel tensile strength. Sugiyama can supply 316 and 600 stainless on request.

Fitting and use

Sugiyama's guide: manual lubrication below 15 m/min chain speed, drip lubrication from 15 to 30 m/min, and oil bath from 30 m/min.

Stainless steel chain is supplied unlubricated. Sugiyama recommends lubricating it before use, except where it is exposed to water, because it can show articulation problems early on if run dry.

Sugiyama states the elastic limit of stainless steel chain is 30% of its tensile strength, so never load it beyond the maximum allowable load.

Where a single-pitch offset link is used, Sugiyama's published load figures allow for a 35% reduction in fatigue strength.

Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.

Related products

Matching connecting links: SY Stainless Steel ASA Double Pitch Roller Chain Connecting Link C2060H-C2080H. Matching offset links: SY Stainless Steel ASA Double Pitch Roller Chain Offset Link (Half Link) C2060H-C2080H.
