SY Stainless Steel ASA Double Pitch Chain Offset Link
Available

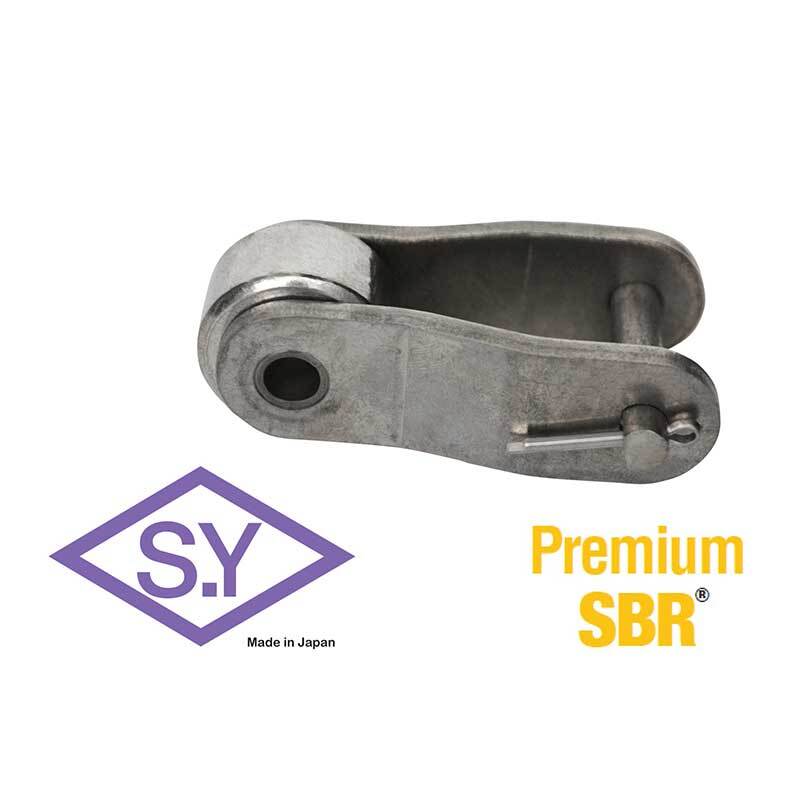

This is the SY Stainless Steel ASA Double Pitch Roller Chain Offset Link (Half Link) C2040-C2052.
SY offset links (half links) let a length of stainless steel ASA Double Pitch roller chain be made up with an odd number of pitches. Each size here matches the SY chain of the same number, so select the link with the same chain number, strand count and series as your chain, A0158833.
Made in Japan by Sugiyama Chain Co., Ltd. Where possible, choose a chain length with an even number of pitches so that no offset link is needed.
Where this product is used
- Highly corrosive environments
- Extreme-temperature environments
- Wet and washdown areas where carbon steel would corrode
Features
- Matched to the SY chain of the same number and series
- Makes up an odd number of pitches
- Made from 304 stainless steel, as the SS chain
- Made in Japan by Sugiyama Chain Co., Ltd
Key specifications
| Specification | Detail |
|---|---|
| Brand | SY (Sugiyama Chain Co., Ltd) |
| Series | SS stainless steel |
| Standard | ASA double pitch |
| Component | Offset link (half link) |
| Chain sizes | C2040 to C2052 (3) |
| Pitch | 1 in to 1-1/4" (25.4 to 31.75mm) |
| Material | 304 stainless steel (all components) |
| Country of origin | Japan |
Choosing the right option
Double pitch chain has twice the pitch of the matching standard chain. S roller types are standard rollers and R types are oversize carrier rollers.
Choose stainless steel where corrosion or temperature rules out carbon steel. Sugiyama can supply 316 and 600 stainless on request.
A two-pitch offset link is available for that duty.
Stainless steel chain is supplied unlubricated. Lubricating it before use, except where it is exposed to water, because it can show articulation problems early on if run dry.
The elastic limit of stainless steel chain is 30% of its tensile strength, so never load it beyond the maximum allowable load.
Chain drives should be guarded. Lock out machine power before removing, installing or servicing chain, wear eye protection when driving or grinding pins, avoid welding or plating assembled chain, and never repair damaged chain by replacing only some of its parts.
Matching chain: SY Stainless Steel ASA Double Pitch Roller Chain C2040-C2052, 10 ft Box.
Matching connecting links: SY Stainless Steel ASA Double Pitch Roller Chain Connecting Link C2040-C2050.
| Option | Part number | SKU |
|---|---|---|
| C2040SS | A0158833 | |
| C2050SS | A0158834 | |
| C2052SS | A0158835 |
Product details
| Model | C2040SS-OL/SY |
|---|---|
| Chain Number | C2040SS |
| Series | SS stainless steel |
| Standard | ASA double pitch |
| Component | Offset link (half link) |
| Chain Pitch | 1" |
| Suits Chain | SY C2040 SS |
| Pitch P (mm) | 25.4 |
| Roller Width W (mm) | 7.95 |
| Roller Diameter R (mm) | 7.92 |
| Pin Diameter (mm) | 3.96 |
| Pin Length LR (mm) | 16.9 |
| Pin Length LC (mm) | 18.3 |
| Pin Length L1 (mm) | 8.3 |
| Pin Length L2 (mm) | 10 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

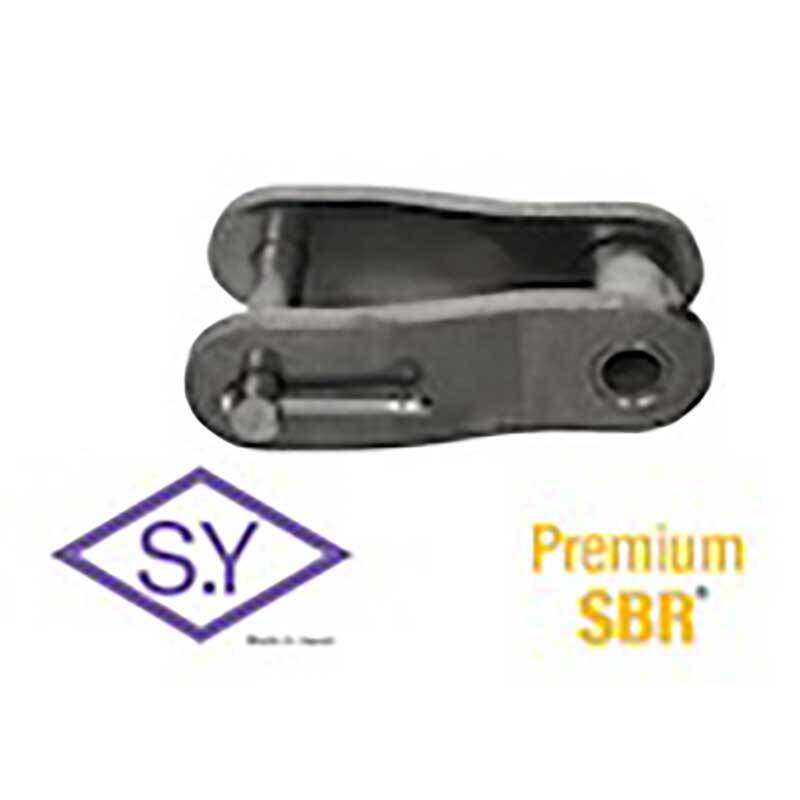

SY Stainless Steel ASA Double Pitch Roller Chain Offset Link (Half Link) C2040-C2052: C2040SS
