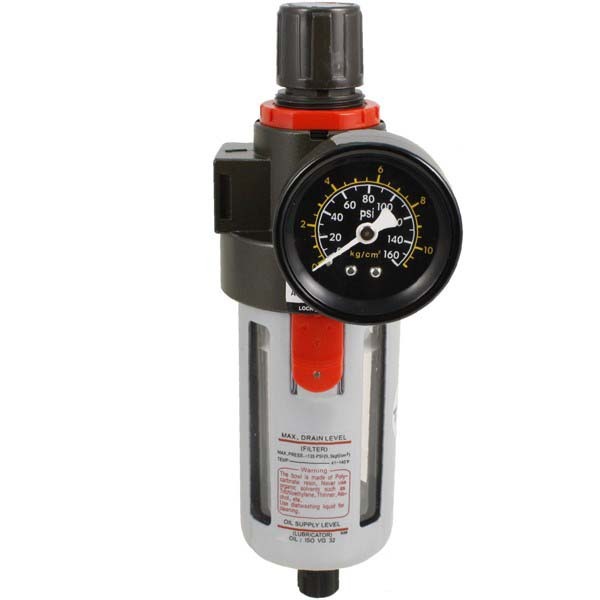

Trax ARX-BFR200/300 1/4" & 3/8" Port Filter Regulator
Available
Trax ARX-BFR200/300 is a filter regulator with 1/4" and 3/8" ports and a 5μm filter grade.
The maker lists a pressure range of 0.5 ~ 8.5 kgf/cm2 (manufacturer-stated). The supplier text gives the 1/4" port as the ARX-BFR200 and the 3/8" port as the ARX-BFR300, and adds a maximum pressure of 9.5 kgf/cm2 (135psi), a manual drain, a die-cast aluminium body, and a bowl listed as polycarbonate/aluminium case (supplier-stated).
Features
- 5μm filter grade (manufacturer-stated)
- Pressure range 0.5 ~ 8.5 kgf/cm2 (manufacturer-stated)
- Manual drain (supplier-stated)
- Die-cast aluminium body (supplier-stated)
Key specifications
| Specification | Detail |
|---|---|
| Part numbers | ARX-BFR200 (1/4" port), ARX-BFR300 (3/8" port) (supplier-stated) |
| Port size | 1/4" (ARX-BFR200), 3/8" (ARX-BFR300) PT (supplier-stated) |
| Filter grade | 5μm (manufacturer-stated) |
| Pressure range | 0.5 ~ 8.5 kgf/cm2 (manufacturer-stated) |
| Maximum pressure | 9.5 kgf/cm2 (135psi) (supplier-stated) |
| Drain | Manual (supplier-stated) |
| Body | Die-cast aluminium (supplier-stated) |
| Bowl | Polycarbonate/aluminium case (supplier-stated) |
Selecting the right option
The supplier text gives the ARX-BFR200 the 1/4" port and the ARX-BFR300 the 3/8" port (supplier-stated). The 1" PT filter regulator is listed as ARX-NFR500.
Related products
Also from Trax: ARX-BR200/300 air regulators and ARX-NFR500 1" manual filter regulator.
