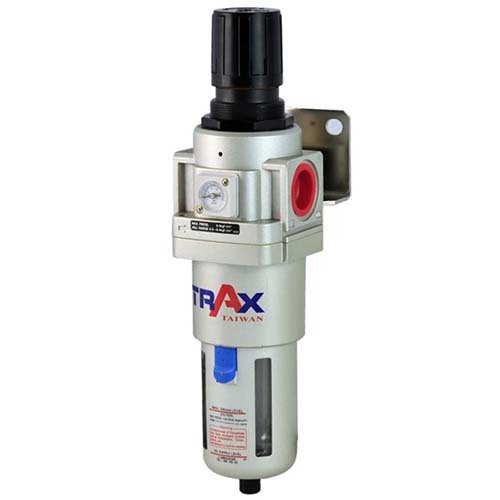

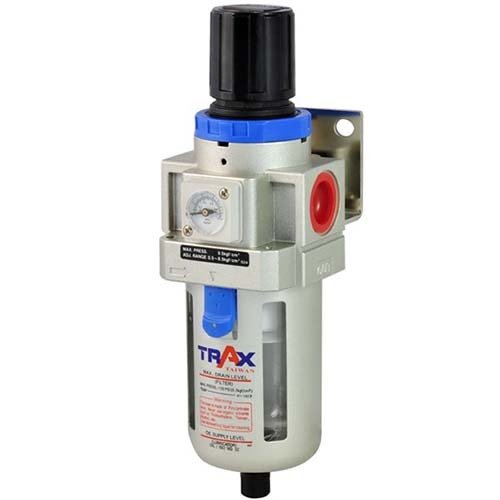

Trax ARX-NFR500 is a 1" PT die-cast aluminium manual filter regulator.
Where this product is used
- Jobs that call for an air regulator
Features
- 1 PT port
- Flow rate 8,000L/min
- 5μm filter grade
- Manual draining
- Die-cast aluminium body
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Part number | ARX-NFR500 |
| Type | Air filter and regulator |
| Port size | 1 PT |
| Flow rate | 8,000L/min |
| Filter grade | 5μm |
| Pressure range | 0.5 ~ 8.5 kgf/cm2 [7.1 ~ 120psi] |
| Maximum pressure | 9.5 kgf/cm2 [135psi] |
| Ambient and fluid temperature | 5 ~ 60°C |
| Drain holding capacity | 100mL |
| Drain | Manual |
| Body | Die-cast aluminium |
| Bowl | Polycarbonate/aluminium case |
Choosing the right option
This is the 1" port filter regulator. The 1/4" and 3/8" port filter regulator is ARX-BFR200/300, and the 1" PT filter on its own as ARX-NF500.
Also from Trax: Trax ARX-BFR200/300 1/4" & 3/8" Port Filter Regulator, Trax PT Water Filter.
