Trax KPT-1175HD 1/2" Drive Heavy Duty Kawasaki Air Ratchet, 160 rpm, 254mm
Available

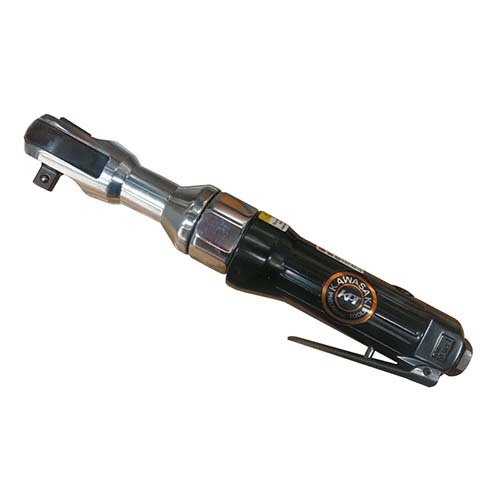

Trax heavy duty Kawasaki air ratchet in two square drive sizes: KPT-1175HD (1/2" drive) and KPT-1170HD (3/8" drive).
The maker lists both on one page with a planetary gears mechanism, a 160 rpm free speed, a maximum torque of 85 ft-lb (115Nm), a 254mm overall length and a front exhaust (manufacturer-stated).
Features
- Planetary gears mechanism (manufacturer-stated)
- Maximum torque 85 ft-lb (115Nm) (manufacturer-stated)
- Front exhaust (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Heavy duty air ratchet |
| Part numbers | KPT-1175HD, KPT-1170HD |
| Square drive sizes | 1/2", 3/8" |
| Mechanism | Planetary gears |
| Free speed | 160 rpm |
| Max. torque | 85 ft-lb (115 Nm) |
| Overall length | 254mm |
| Air pressure | 90 psi |
| Air inlet | 1/4" |
| Air exhaust | Front exhaust |
Key specifications
| Part number | Square drive | Free speed | Overall length |
|---|---|---|---|
| KPT-1175HD | 1/2" | 160 rpm | 254mm |
| KPT-1170HD | 3/8" | 160 rpm | 254mm |
Selecting the right option
Choose by square drive size: KPT-1175HD has a 1/2" drive and KPT-1170HD has a 3/8" drive. The other listed figures are the same for both.
Related products
Also from Trax: ARX-322D 1/2" bridged air ratchet, ARX-142D and ARX-382D bridged air ratchet wrenches, ARX-31 3/8" drive air ratchet wrench and ARX-MM382 3/8" mini air ratchet wrench.
