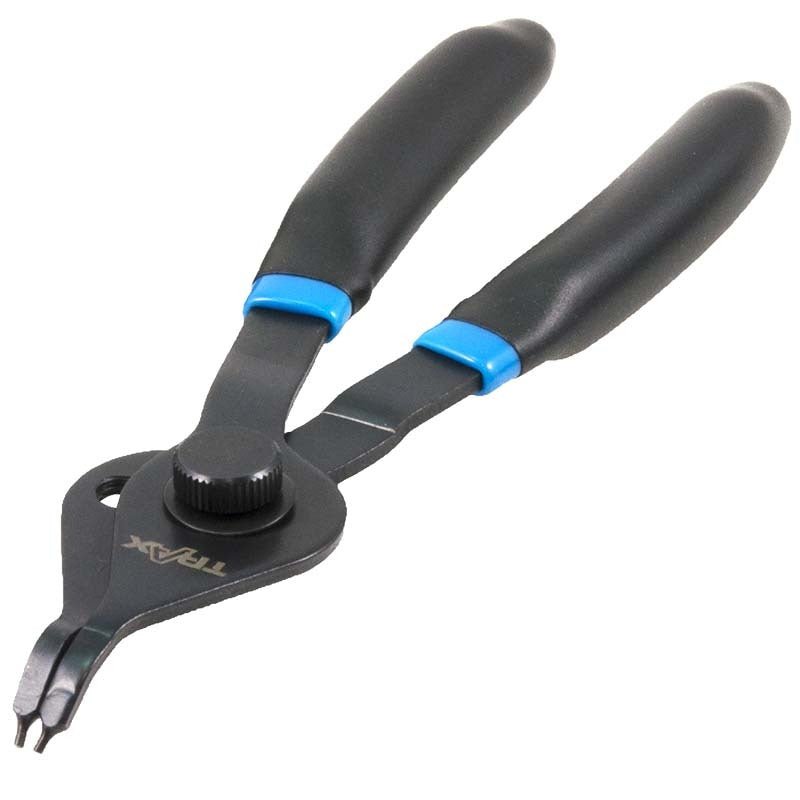

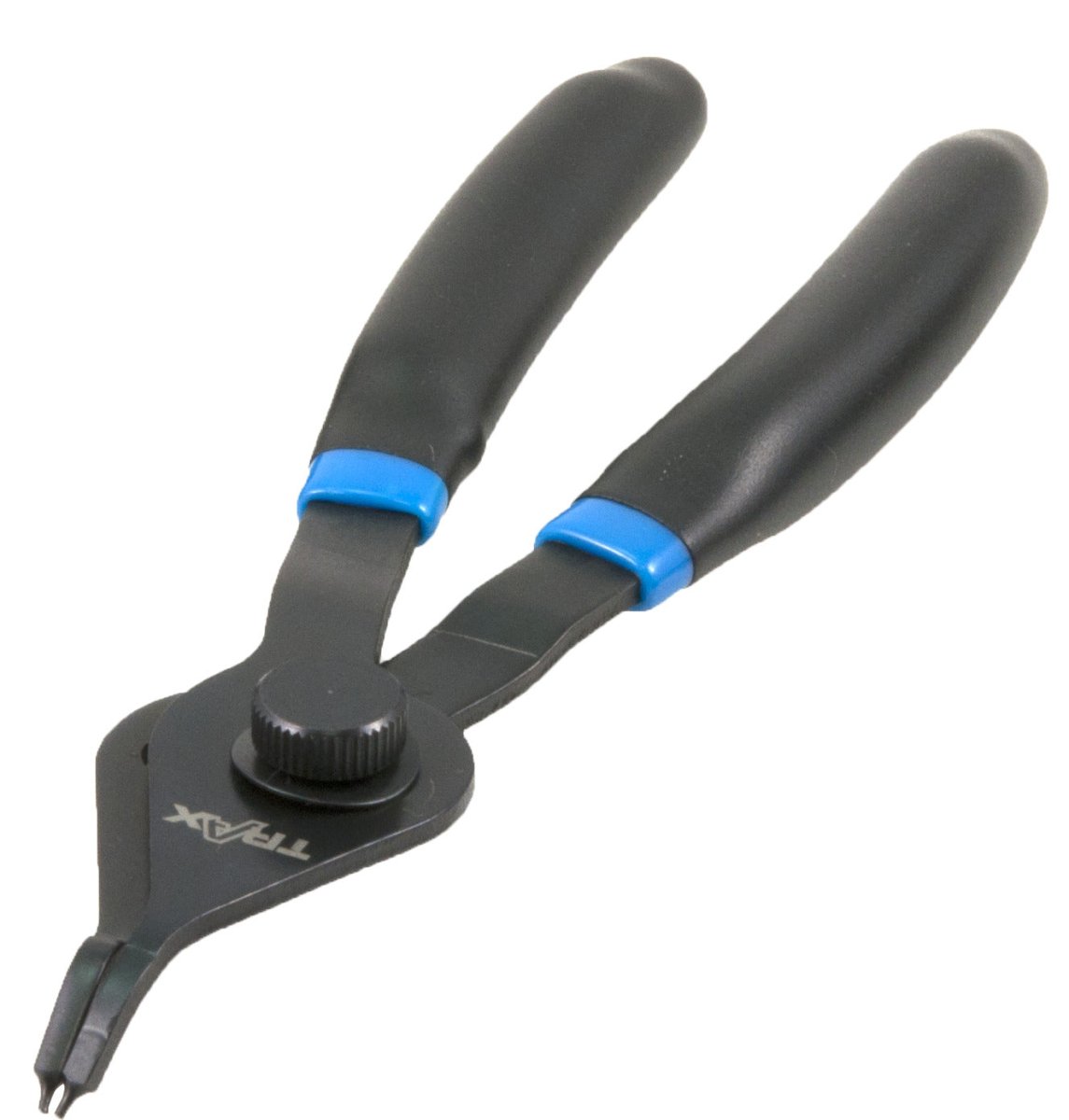

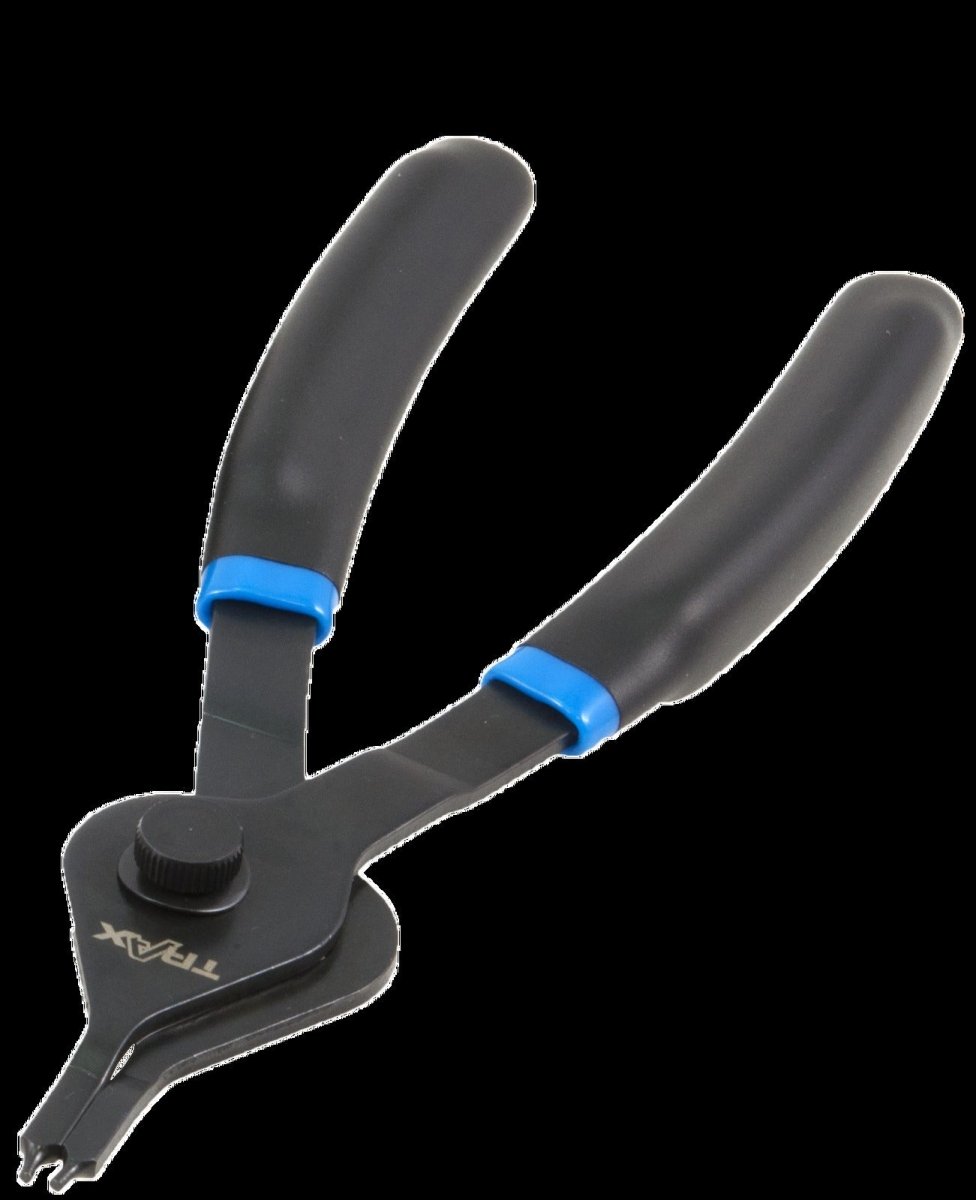

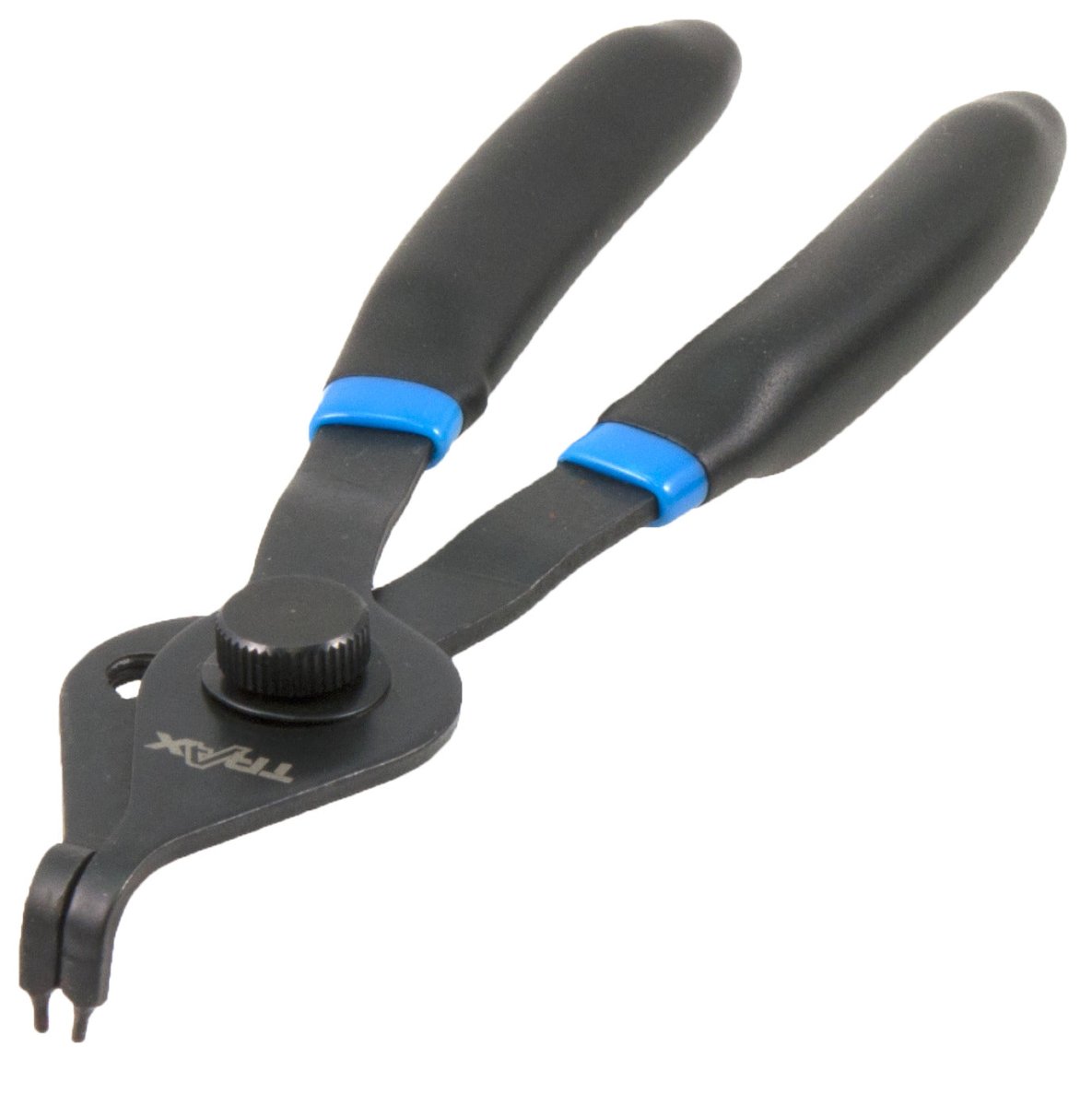

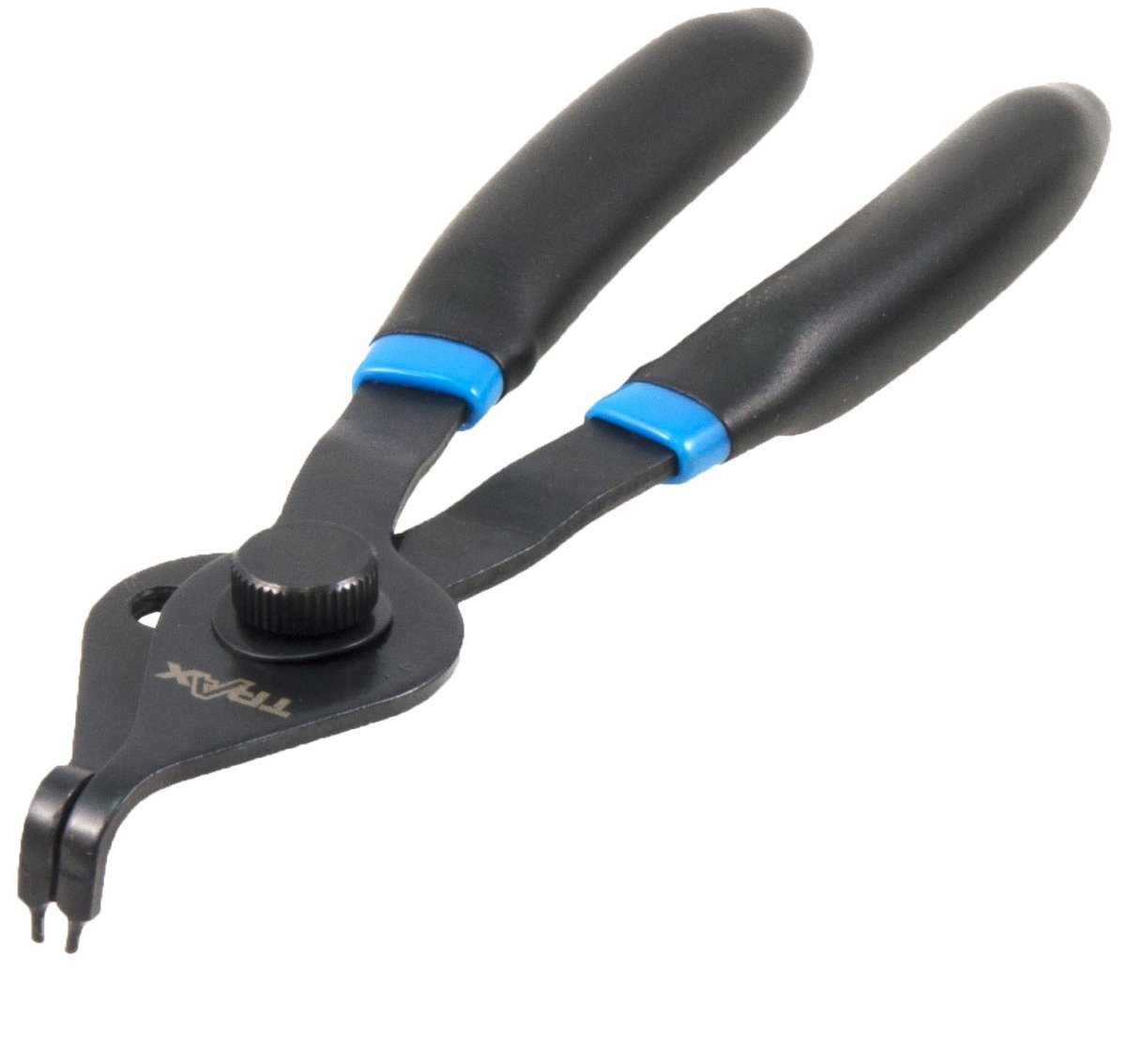

Trax ARX-CP100 to ARX-CP239 internal/external circlip pliers
Available

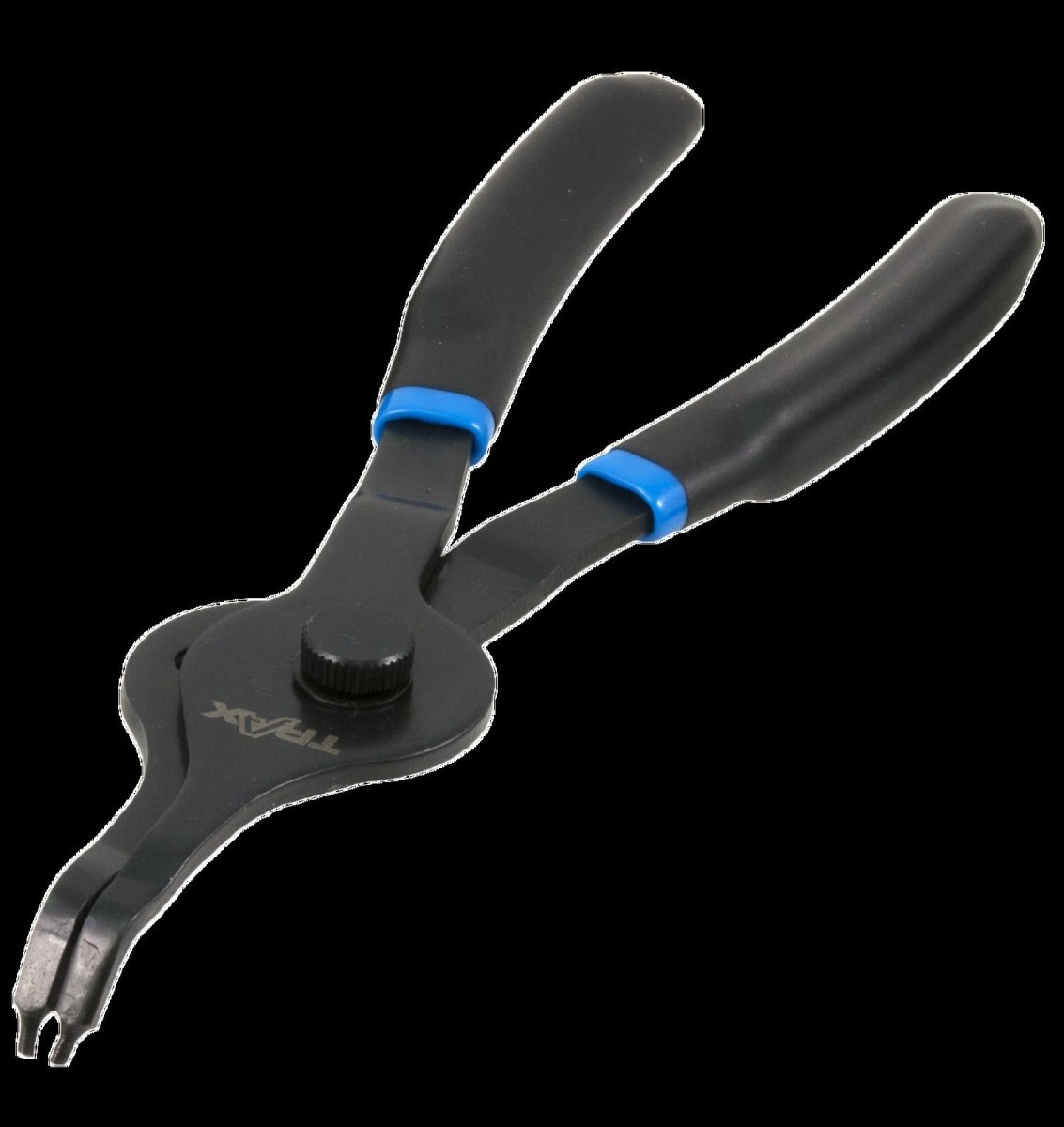

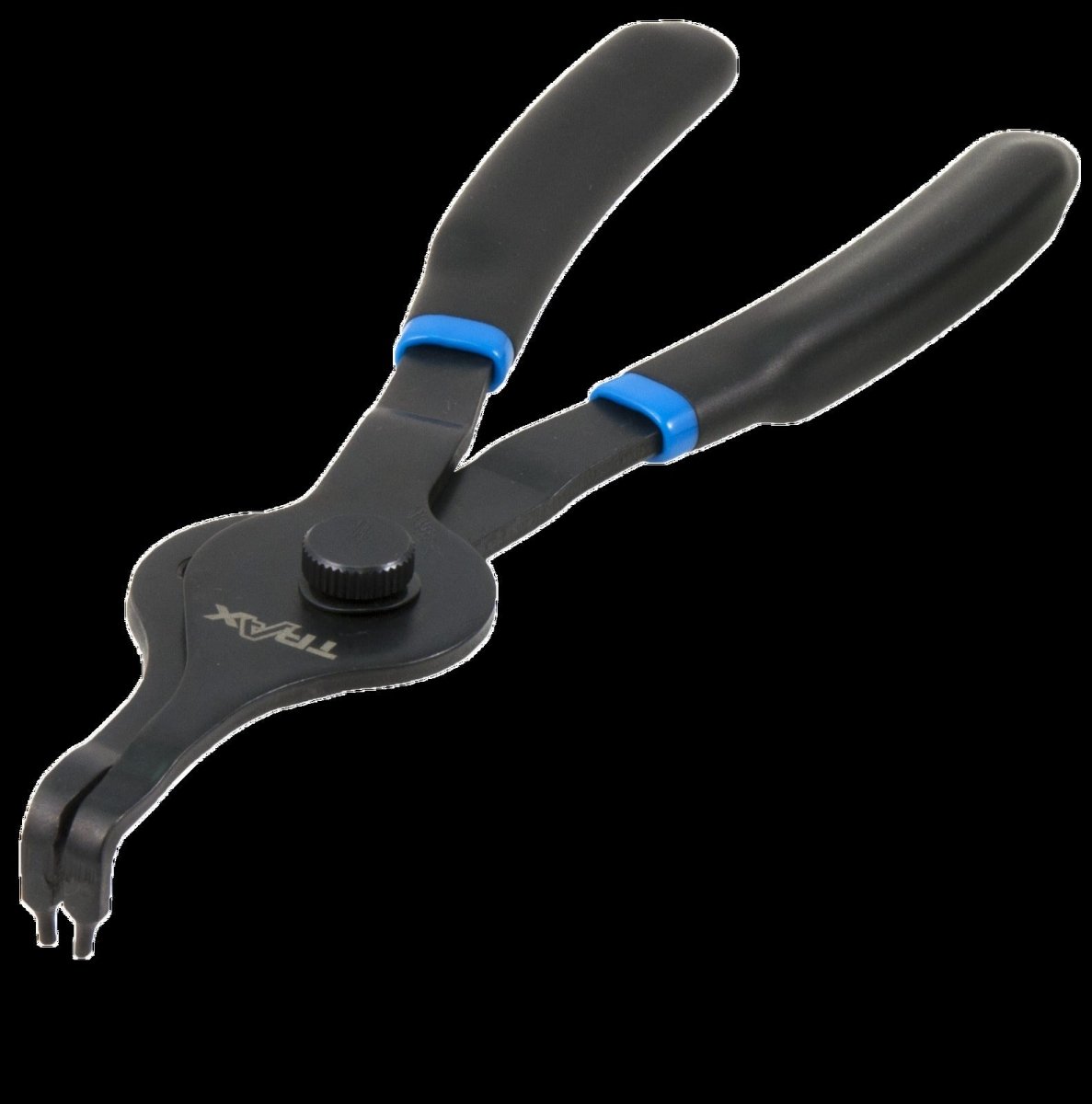

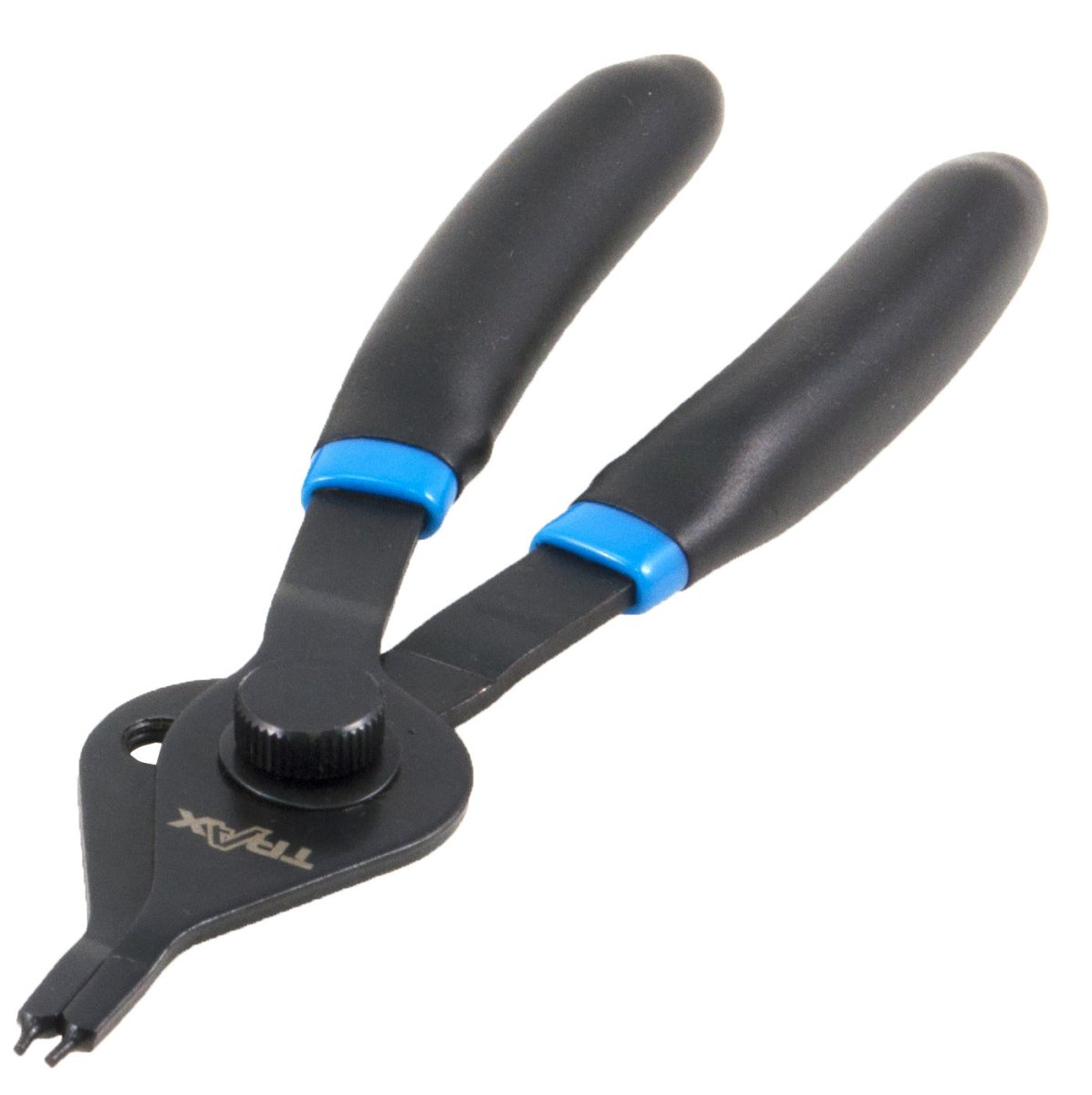

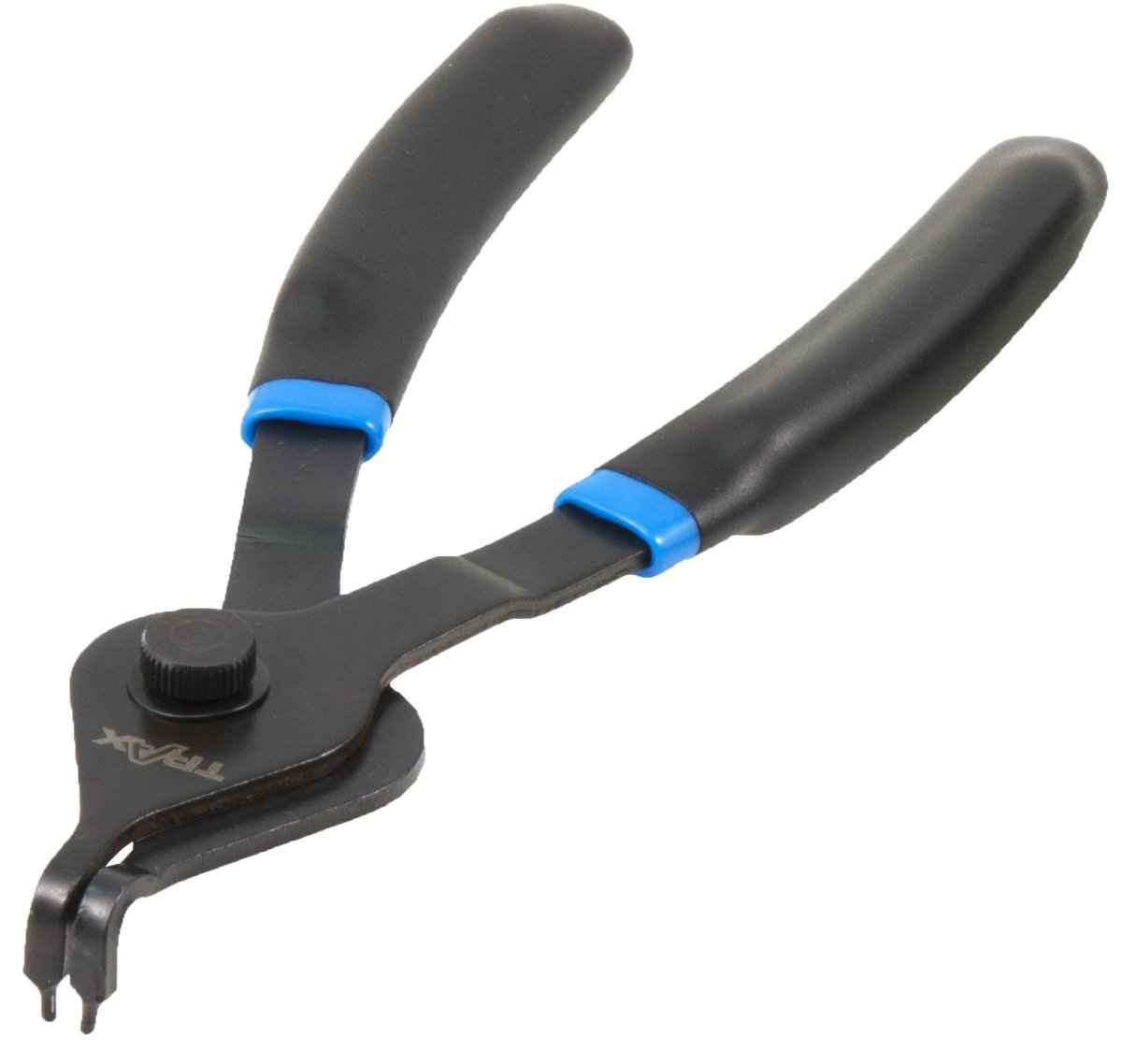

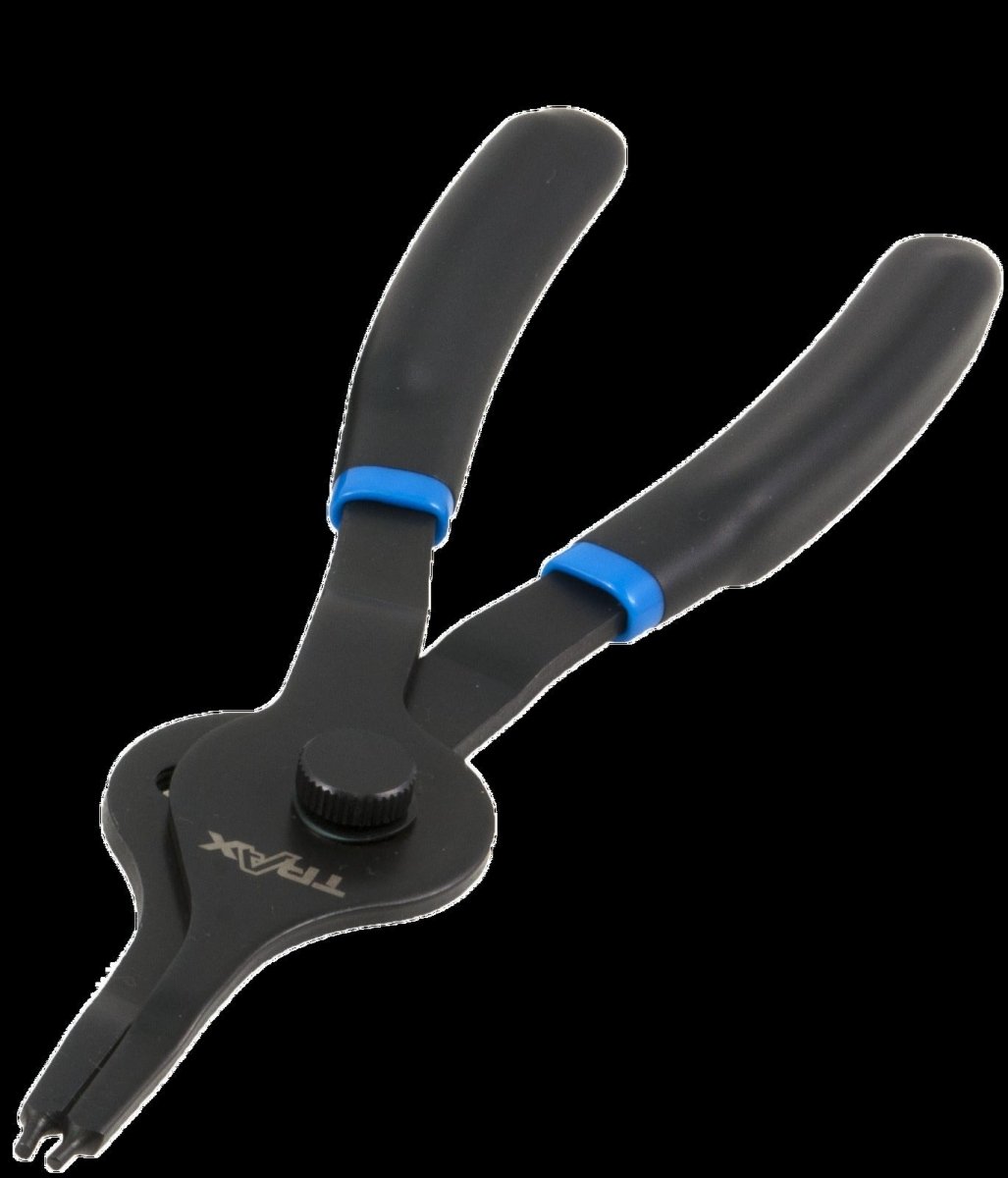

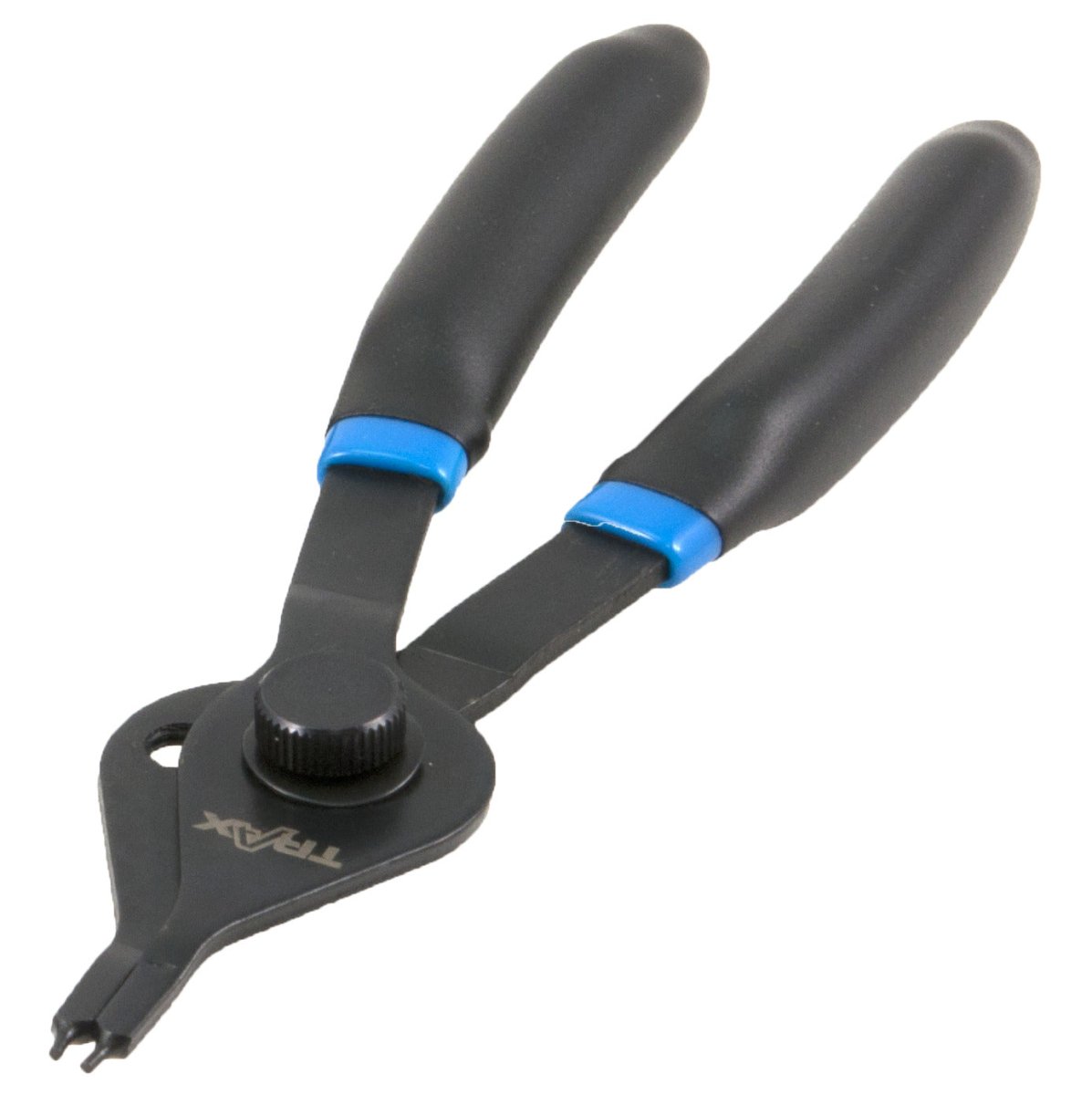

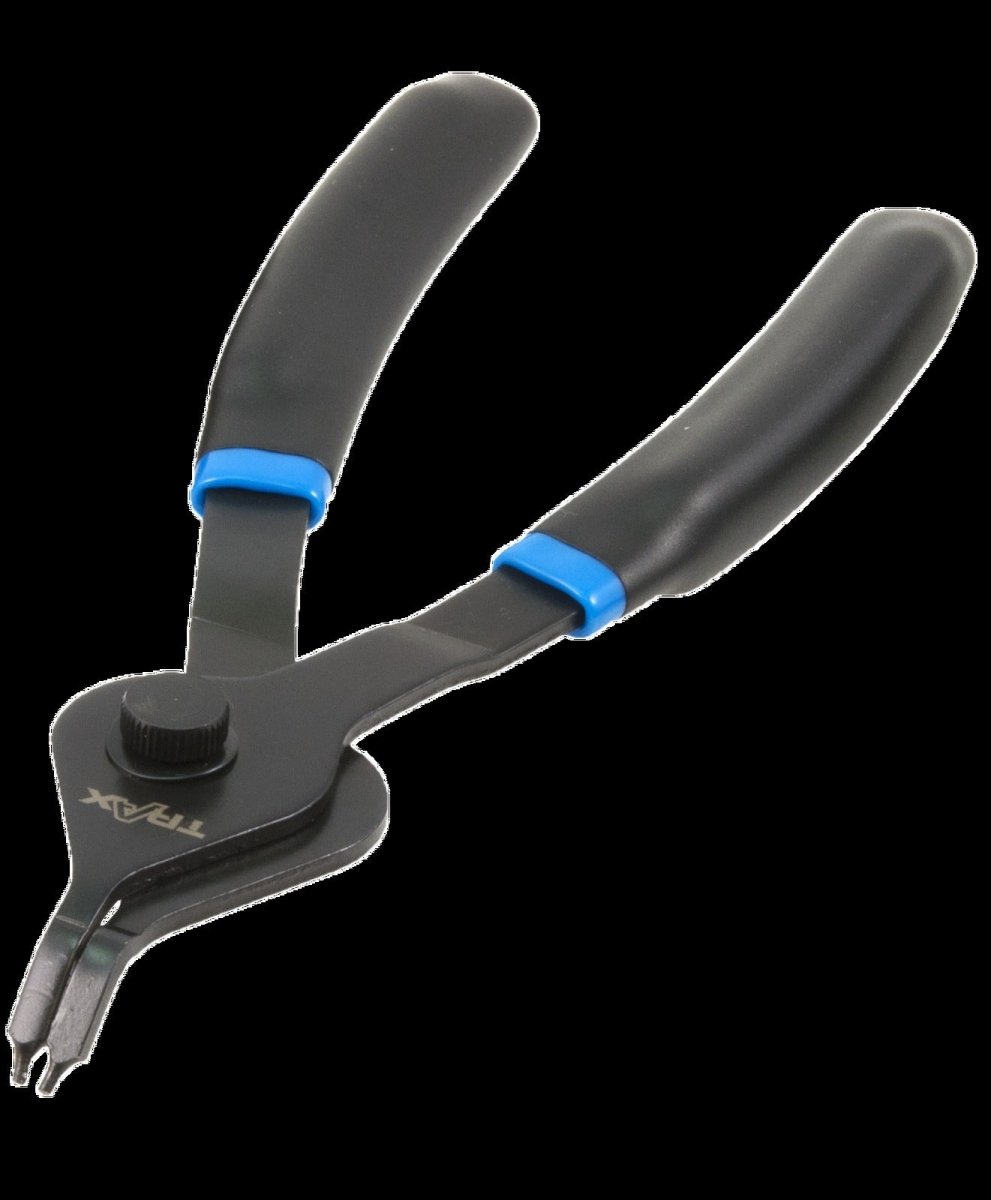

Trax offers internal/external circlip pliers in twelve versions: four ranges (8-18mm, 12-25mm, 18-48mm and 31-82mm), each with a straight, 45 degree or 90 degree tip.

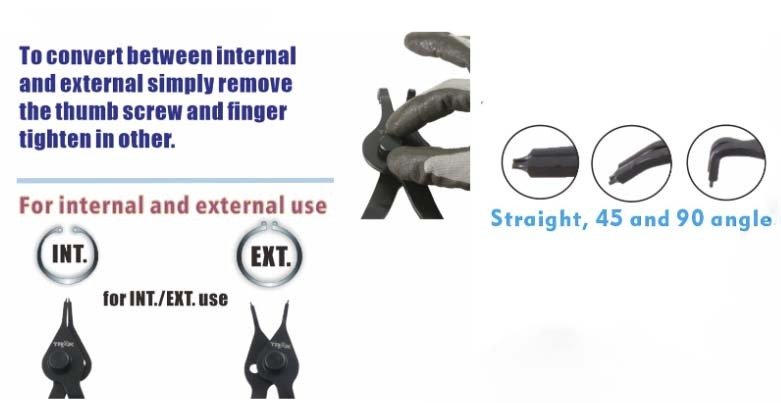

The pliers handle both internal and external circlips, and that a removable thumb screw converts them between internal and external applications.
Where this product is used
- Jobs that call for a circlip plier
Features
- Handles both internal and external circlips
- Removable thumb screw to convert between internal and external applications
- Heat-treated chrome molybdenum (CR-MO) steel
- Type: Internal/external circlip pliers
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Internal/external circlip pliers |
| Ranges | 8-18mm, 12-25mm, 18-48mm, 31-82mm |
| Tip angles | Straight, 45°, 90° |
Choosing the right option
Choose the range that covers the circlip size, then the tip angle: straight, 45° or 90°. Within each range the part numbers ending 0 are straight (0°), 4 are 45° and 9 are 90°, for example ARX-CP100, ARX-CP104 and ARX-CP109 for 8-18mm. All twelve are the one set ARX-CP3012.
Also from Trax: Trax Internal/External Circlip Set, 12 Pieces - ARX-CP3012.
| Part number | Range | Tip angle | Tip size |
|---|---|---|---|
| ARX-CP100 | 8-18mm | Straight | 0.038"/1.0mm |
| ARX-CP104 | 8-18mm | 45° | 0.038"/1.0mm |
| ARX-CP109 | 8-18mm | 90° | 0.038"/1.0mm |
| ARX-CP120 | 12-25mm | Straight | 0.047"/1.2mm |
| ARX-CP124 | 12-25mm | 45° | 0.047"/1.2mm |
| ARX-CP129 | 12-25mm | 90° | 0.047"/1.2mm |
| ARX-CP180 | 18-48mm | Straight | 0.070"/1.8mm |
| ARX-CP184 | 18-48mm | 45° | 0.070"/1.8mm |
| ARX-CP189 | 18-48mm | 90° | 0.070"/1.8mm |
| ARX-CP230 | 31-82mm | Straight | 0.090"/2.3mm |
| ARX-CP234 | 31-82mm | 45° | 0.090"/2.3mm |
| ARX-CP239 | 31-82mm | 90° | 0.090"/2.3mm |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Internal/External Circlip Pliers: 31-82mm / Straight
SKU: A0202254 | Model: ARX-CP230
Straight circlip pliers, 31-82mm range, 0.090"/2.3mm tip: Trax ARX-CP230.
