Trax ARX-750607DW to ARX-751819DW 75° offset double ring
Available

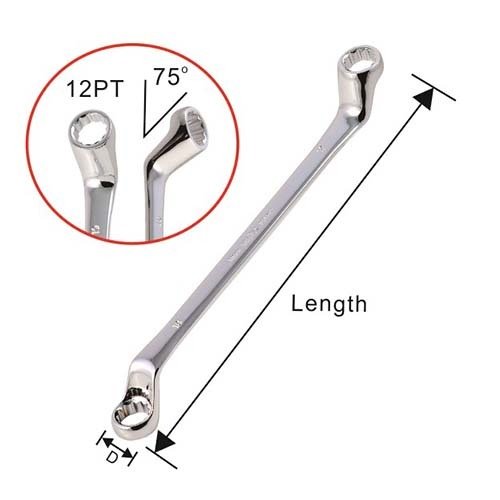

This is a Trax 75° offset 12PT metric double ring wrench in seven sizes, from 6 & 7mm to 18 & 19mm, part numbers ARX-750607DW to ARX-751819DW. Each wrench has two ring sizes and comes in its length.
Each size comes in a 75° offset and 12 points (12PT).
Where this product is used
- Jobs that call for a ring spanner
Features
- Type: Offset double ring wrench
- Sizes: 7 sizes, 6 & 7mm to 18 & 19mm
- Offset: 75°
- Points: 12 (12PT)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Offset double ring wrench |
| Sizes | 7 sizes, 6 & 7mm to 18 & 19mm |
| Offset | 75° |
| Points | 12 (12PT) |
| Measurement | Metric |
Choosing the right option
Choose by the pair of ring sizes: 6 & 7mm, 8 & 9mm, 10 & 11mm, 12 & 13mm, 14 & 15mm, 16 & 17mm or 18 & 19mm.
Also from Trax: Trax ARX-7507DM 75° Offset 12PT Metric Double Ring Wrench Set, 7Pc Set, Trax 12PT Flat Double Ring Wrench, Trax ARX-FDW0100C 12PT Flat Metric Double Ring Spanner Set, 11Pc Set.
| Part number | Size | Length |
|---|---|---|
| ARX-750607DW | 6 & 7mm | 168mm |
| ARX-750809DW | 8 & 9mm | 183mm |
| ARX-751011DW | 10 & 11mm | 198mm |
| ARX-751213DW | 12 & 13mm | 217mm |
| ARX-751415DW | 14 & 15mm | 239mm |
| ARX-751617DW | 16 & 17mm | 260mm |
| ARX-751819DW | 18 & 19mm | 292mm |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Offset 12PT Metric Double Ring Wrench: 16 & 17
SKU: A0134627 | Model: ARX-751617DW
16 & 17mm double ring wrench from Trax with a 75° offset and 12 points, part number ARX-751617DW, 260mm in length.
