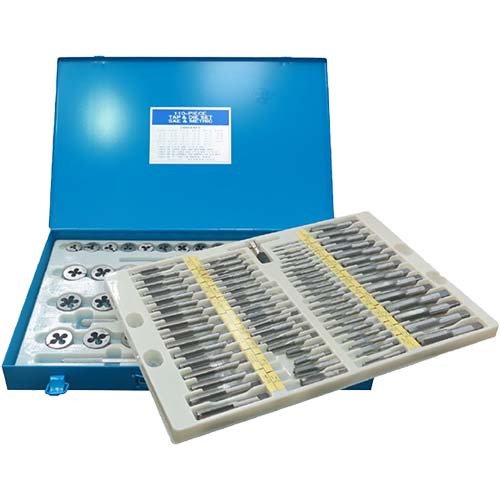

Trax 110 Combination Tap and Die Set | AIMS Industrial

Trax Tap & Die Sets&nbsp

• Combination of Metric, UNC, UNF, UNS and NPT Thread
• Dies Stock: 1" & 1-1/2"
• Tap Wrench No.: #6 & #4
• T-Type Tap Holder: No. 1 (1/16"-7/16" 1.6-6mm)
• Dies: 35 pcs each per size
• Weight Per Set: 25 kgs

Set No. 110CFM
Metric
UNC
UNF
UNS
NPT
Cutting Size and Thread Per Inch
M6 x 1.00
No.4 x 40 1/4-20
No.10 x 32 1/4-28
1/4-24
 1/8-27
Cutting Size and Thread Per Inch
M8 x 1.25
No.6 x 32 5/16-18
5/16-24
1/4-32
 1/4-18
Cutting Size and Thread Per Inch
M10 x 1.50
No.8 x 32 3/8-16
3/8-24
--
--
Cutting Size and Thread Per Inch
M10 x 1.00
No.10 x 24 7/16-14
7/16-20
--
--
Cutting Size and Thread Per Inch
M11 x 1.50
No.12 x 24 1/2-13
1/2-20
--
--
Cutting Size and Thread Per Inch
M12 x 1.25
9/16-12
9/16-18
--
--
Cutting Size and Thread Per Inch
M12 x 1.75
5/8-11
3/4-16
--
--
Cutting Size and Thread Per Inch
M14 x 1.25
 3/4-10
--
--
--
Cutting Size and Thread Per Inch
M18 X 1.50
--
--
--
