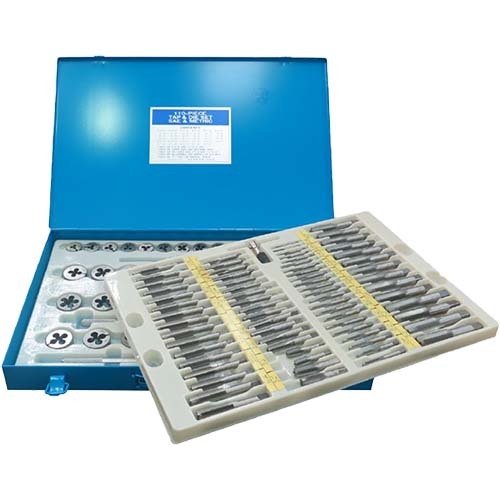

Trax SKC-110M 110Pc Metric Tap & Die Set
Available
Trax SKC-110M is a 110 piece metric tap and die set.
4 and No. 6, a T-type tap wrench and a metal storage carry case.
Where this product is used
- Jobs that call for a tap and die set
Features
- Metric coarse and fine threads, M2 to M18
- Taper taps and bottoming taps
- Dies and die stocks for 1" OD and 1-1/2" OD
- Adjustable tap wrenches No. 4 and No. 6, plus a T-type tap wrench
- Metal storage carry case
- Tungsten steel
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Part number | SKC-110M |
| Type | Tap and die set |
| Pieces | 110 |
| Threads | Metric |
| Thread range | M2 to M18, coarse and fine |
| Metric sizes (diameter x pitch, mm) | 2 x 0.4, 3 x 0.5, 4 x 0.7, 5 x 0.8, 6 x 0.75, 6 x 1.0, 7 x 0.75, 7 x 1.0, 8 x 0.75, 8 x 1.0, 8 x 1.25, 9 x 0.75, 9 x 1.0, 9 x 1.25, 10 x 0.75, 10 x 1.0, 10 x 1.25, 10 x 1.5, 11 x 0.75, 11 x 1.0, 11 x 1.25, 11 x 1.5, 12 x 0.75, 12 x 1.0, 12 x 1.25, 12 x 1.5, 12 x 1.75, 14 x 1.0, 14 x 1.25, 14 x 1.5, 14 x 2.0, 16 x 1.0, 16 x 1.5, 16 x 2.0, 18 x 1.5 |
| Dies | 1" OD and 1-1/2" OD |
| Taps | Taper and bottoming |
| Tap wrenches | Adjustable No. 4 and No. 6, and a T-type wrench |
| Material | Tungsten steel |
| Case | Metal storage carry case |
Choosing the right option
SKC-110M is the metric-only set. For metric and imperial threads in one set, see the SKC-110CFM 110 piece set.
Also from Trax: Trax SKC-110CFM 110Pc Metric & Imperial Tap & Die Set, Trax SKC-850HDMM 40Pc Tap and Die Set Metric, Trax SKC-720DIN Tap and Die Set, 20Pc Set.
