Trax spring balancers, 5 - 7
Regular price
$402.50
Sale price
$402.50
Regular price
Inc. GST
Available

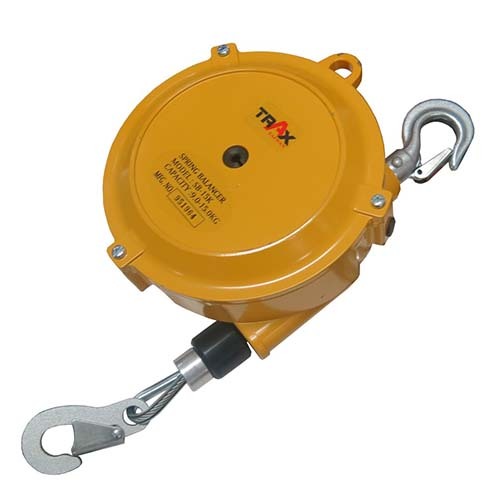

Trax spring balancers come in five capacity ranges: 5 - 7kg (ARX-SB7K), 5 - 9kg (ARX-SB9K), 9 - 15kg (ARX-SB15K), 15 - 22kg (ARX-SB22K) and 22 - 30kg (ARX-SB30K).
Where this product is used
- Jobs that call for a spring balancer
Features
- Aluminium die casting housing
- Revolves 360 degrees when mounted with the install hook
- Enclosed type lifting hook and install hook
- Anti-falling steel wire installation hole provided, "it must be installed to avoid the failure of the original mounting location"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Spring balancer |
| Capacity ranges | 5 - 7kg, 5 - 9kg, 9 - 15kg, 15 - 22kg and 22 - 30kg |
| Rope option | Cable |
| Housing | Aluminium die casting |
Choosing the right option
Choose the part number whose capacity range covers the load to be balanced. The 22 - 30kg and 15 - 22kg models have a 1.5m travel and a 4.8mm rope, and the three lighter models have a 1.3m travel.
Also from Trax: Trax Toolmate Spring Balancer, Trax ARX-HSB2 0.8 - 2.0kg Balancer.
| Part number | Capacity range | Travel | Rope diameter |
|---|---|---|---|
| ARX-SB7K | 5 - 7kg | 1.3m | 3.2mm |
| ARX-SB9K | 5 - 9kg | 1.3m | 4mm |
| ARX-SB15K | 9 - 15kg | 1.3m | 4mm |
| ARX-SB22K | 15 - 22kg | 1.5m | 4.8mm |
| ARX-SB30K | 22 - 30kg | 1.5m | 4.8mm |
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Trax Spring Balancer: 5 - 7
SKU: A0134644 | Model: ARX-SB7K
Trax ARX-SB7K: spring balancer, 5 - 7kg capacity range, 1.3m travel, 3.2mm rope diameter.
