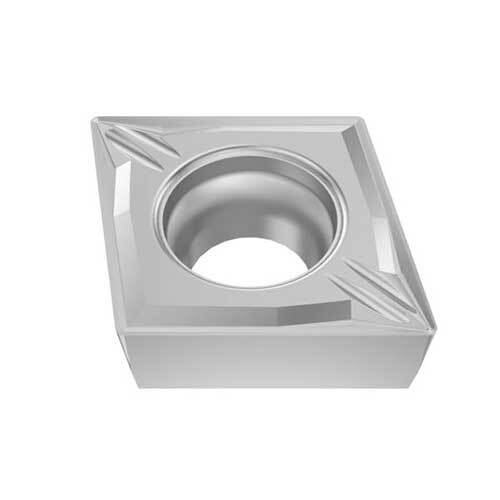

Seco Turning Insert C Shape Code 3.97 x | AIMS Industrial

***Illustrations shown may vary from actual product***

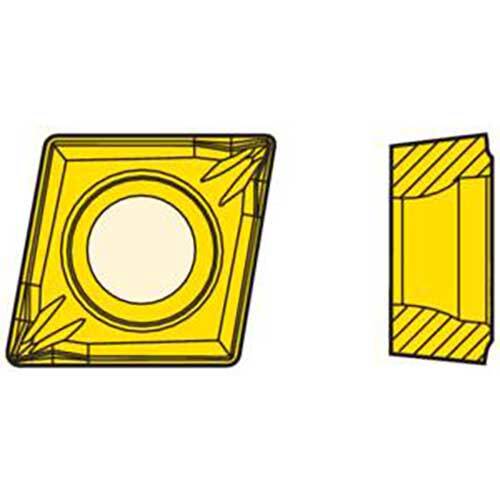

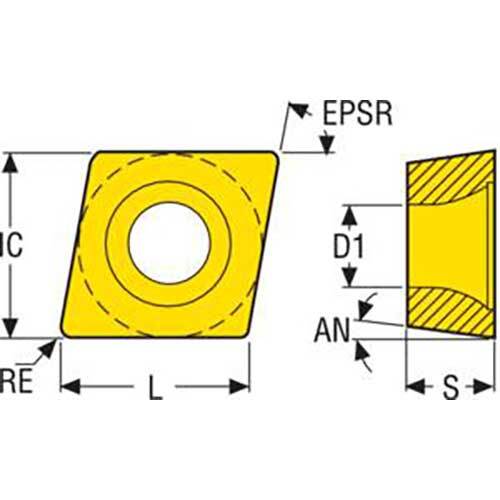

Turning Insert CCMT Insert Style - MF2 7° Grade TM2501

• C shape code.
• T Insert Type.
• 7° insert side clearance angles.

TM2501 Insert Grade

• Duratomic® grade.
• A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
• First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

• First choice for finishing with negative inserts.
• Suitable for chip control at depths of cutting down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.
• Good capacity for medium rough machining.
• Recommended machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.
• (f = 0.004–0.016 in/rev, ap = 0.008–0.120 inch).

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• to boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
