Turning Insert CCMT Insert Style - MF2 7° Grade TM2501: CCMT09T304-MF2 TM2501

SKU: A0158280 | Model: 03275937

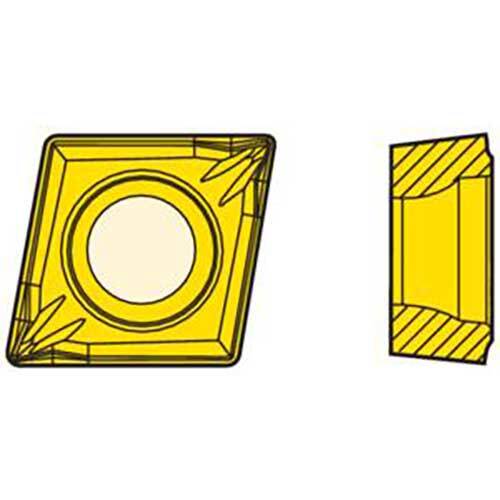

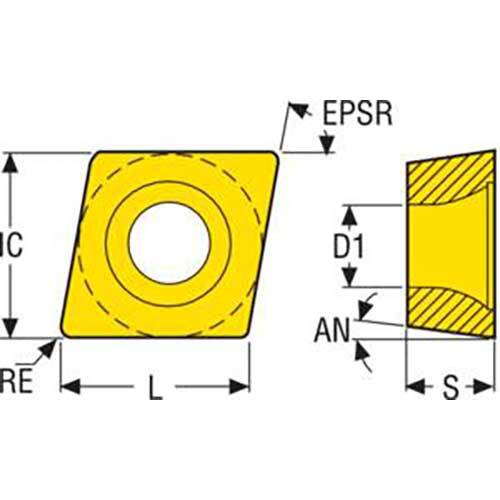

Designation CCMT09T304-MF2 TM2501. Turning Insert CCMT Insert Style - MF2 7° Grade TM2501

C shape code.

T Insert Type.

7° insert side clearance angles.

TM2501 Insert Grade

Duratomic® grade.

A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.

First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.

Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

MF2 Chipbreaker Programme

First choice for finishing with negative inserts.

Suitable for chip control at depths of cutting down to 0,25 mm, provided that the feed rate is in excess of 0,25 mm/rev.

Good capacity for medium rough machining.

Recommended machining range: f = 0,10–0,40 mm/rev, ap = 0,2–3,0 mm.

(f = 0.004–0.016 in/rev, ap = 0.008–0.120 inch).

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.

Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.

to boost the productivity and tool life in your turning applications.

Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
