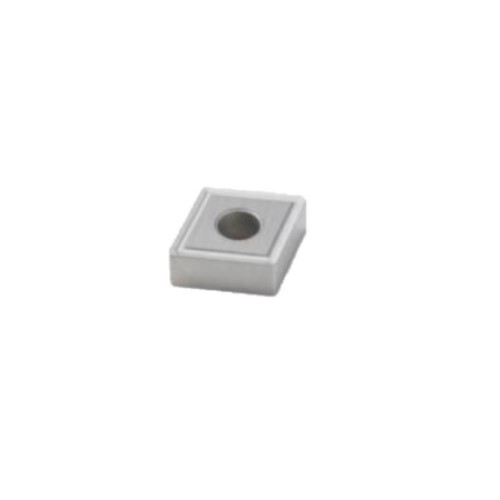

Turning Insert CNMG Insert Style - M1 Grade 883
- C shape code.
- G insert type, with hole and chip breaker on both faces.
- 883 insert grade.
883 Insert Grade
- Relatively hard and still tough uncoated micrograin grade for machining of titanium in roughing applications and also suitable for superalloys.
M1 Chipbreaker Programme
- Chipbreaker intended for superalloys and titanium alloys.
- It has a positive cutting rake angle which is slightly honed to increase the edge strength. Also available with a perfectly sharp edge (type ..GG insert).
- The M1 is intended for light roughing and for semi-finishing.
- Indicative machining range: f = 0,2–0,4 mm/rev, ap = 1,5–5,0 mm.
About Seco Turning Insert
- Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
- Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
- to boost the productivity and tool life in your turning applications.
- Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Turning Insert CNMG Insert Style - M1 Grade 883
Turning Insert CNMG Insert Style - M1 Grade 883
SKU: A0116662
Type: Turning Insert
- Wide Range
- Reliable Services
- Proven Trust
Available
The Turning Insert CNMG Insert Style by SECO is a Turning Insert uncoated micrograin grade. It offers an indicative machining range f = 0,2–0,4 mm/rev, ap = 1,5–5,0 mm and is suitable for roughing of titanium.
