Seco CNMG160612-M6 TP2501 Turning Insert
Available

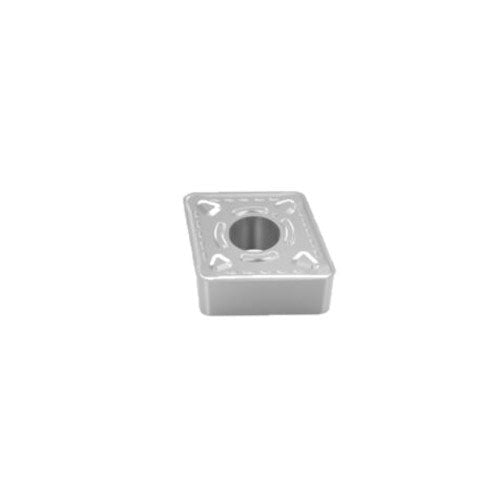

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP2501 with M6 chipbreaker.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M6 |

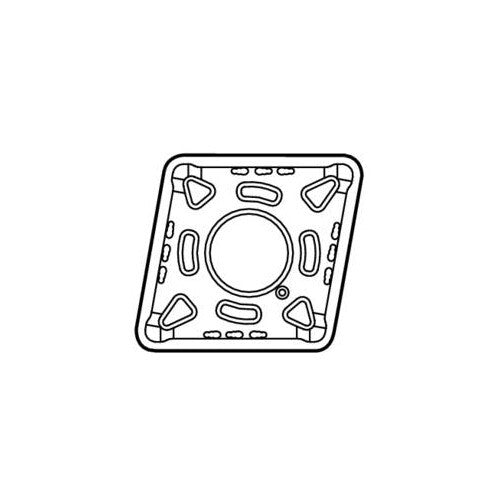

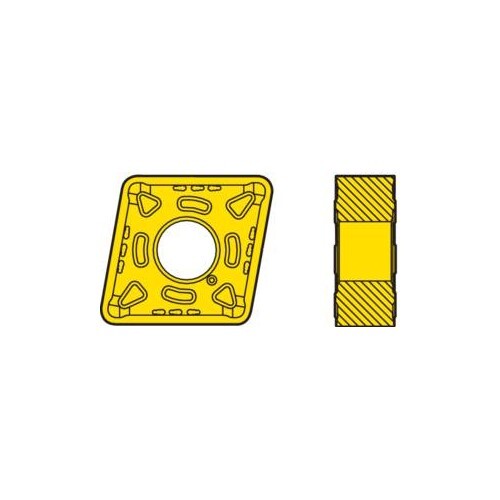

| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TP2501 insert grade. 6.35mm insert thickness (S). |
About Grade TP2501
Carbide CVD. Duratomic® grade. Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M6 Chipbreaker
Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel. A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts. Well suited also for machining of ferritic and martensitic stainless steels. Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
CNMG160612-M6 TP2501
Model Number: 02959860
-
CNMG160616-M6 TP2501
Model Number: 02959864
-
CNMG190612-M6 TP2501
Model Number: 02975057
