Seco CNMG120408-M6 TP3501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP3501 with M6 chipbreaker.
Key Specifications
| Grade | TP3501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M6 |

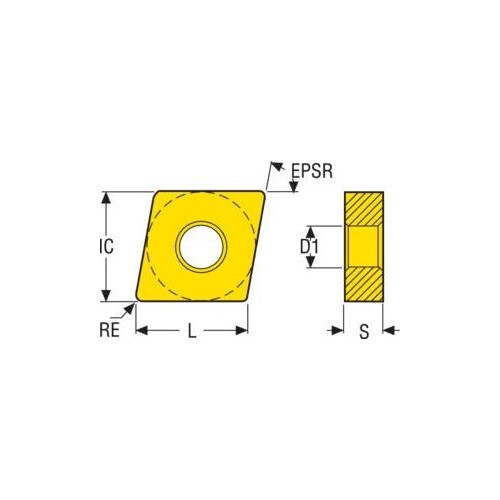

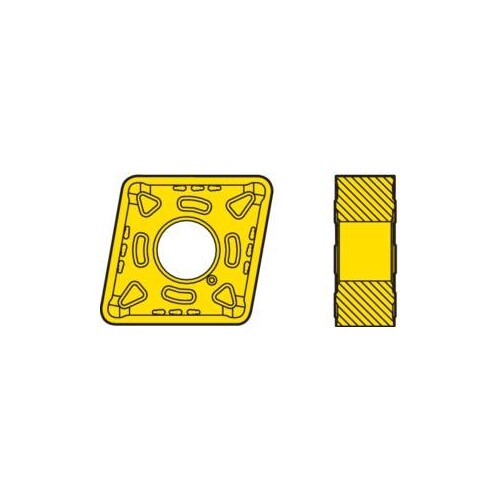

| Insert Details | C shape code. G insert type, with hole and chip breaker on both faces. TP3501 insert grade. |
About Grade TP3501
Carbide CVD. Duratomic® grade. Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the M6 Chipbreaker

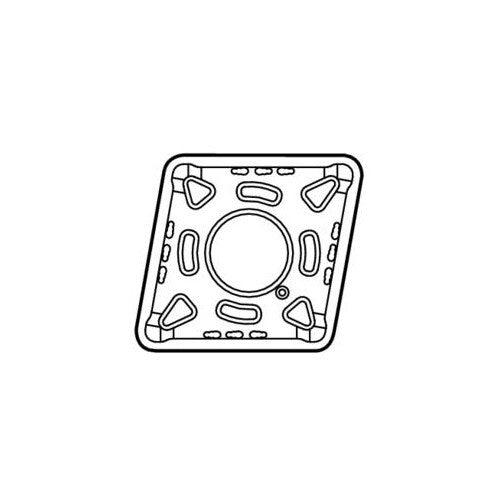

Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel. A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts. Well suited also for machining of ferritic and martensitic stainless steels. Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMG Insert Style - M6 Grade TP3501: CNMG120408-M6 TP3501
SKU: A0117976 | Model: 03096305

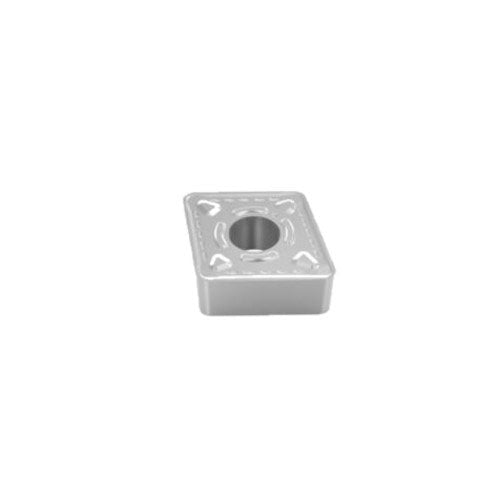

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - M6 Grade TP3501 ± 0.13/± 0.05mm Tolerance CNMG120408-M6,TP3501 10pcs
Turning Insert CNMG Insert Style - M6 Grade TP3501
C shape code.
G insert type, with hole and chip breaker on both faces.
TP3501 insert grade.
TP3501 Insert Grade
Duratomic® grade.
Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
M6 Chipbreaker Programme
Strong double-sided chipbreaker, intended for semi-roughing and roughing of steel.
A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts.
Well suited also for machining of ferritic and martensitic stainless steels.
Indicative machining range: f = 0,2-0,8 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
