Seco W-FF2 Turning Insert TP1030
Available

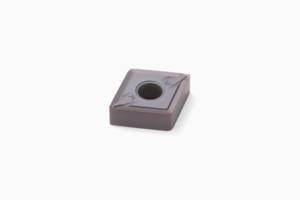

This is the Turning Insert CNMG Insert Style - W-FF2 Grade TP1030.
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP1030 with FF2 chipbreaker.
Key Specifications
| Grade | TP1030 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | FF2 |
| Insert Details | C shape code. TP1030 insert grade. |
About Grade TP1030
Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steel and stainless steel. Ti-Al-Si-N nanolaminate coating. W-
About the FF2 Chipbreaker
Chipbreaker for high feed finishing of steel and stainless steel. Wide chip control range in finishing and generates a superior surface quality. Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-1,5 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Product details
| Model | 02787041 |
|---|---|
| Corner Radius (RE) mm | 0.8 |
| Insert Included Angle (epsr) Deg | 80.0 deg |
| Chipbreaker Programme | W-FF2 |
| Grade Type | Cermet PVD |
| Theoretical Cutting Edge Length (L) mm | 12.9 |
| Cutting Edge Count (CEDC) | 4 |
| Designation | CNMG120408W-FF2 TP1030 |
| Cutting Edge Effective Length (LE) mm | 12.1 |
| Inscribed Circle Diameter (IC) mm | 12.7 |
| Fixing Hole Diameter (d1) Mm | 5.2 |
| Insert Thickness (S) mm | 4.76 |
| Insert Seat Size Code (SSC) | 12 |
| Insert Shape Code (SC) | C |
| Clearance Angle Major (an) Deg | 0.0 deg |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMG Insert Style - W-FF2 Grade TP1030
SKU: A0117342 | Model: 02787041

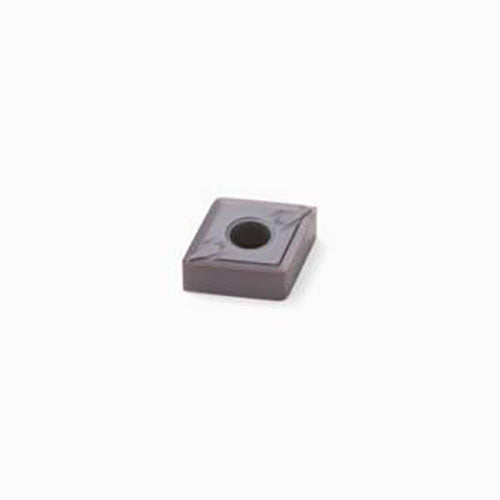

Seco Turning Insert C Shape Code 4.76 x 0.8 x 12.7mm G Insert Type - W-FF2 Grade TP1030 ± 0.13/± 0.05mm Tolerance CNMG120408W-FF2,TP1030 10pcs
Turning Insert CNMG Insert Style - W-FF2 Grade TP1030
C shape code.
G insert type, with hole and chipbreaker on both faces
TP1030 insert grade.
TP1030 Insert Grade
Coated highly wear-resistant cermet grade for high surface finish and productivity requirements mainly used in steel and stainless steel.
Ti-Al-Si-N nanolaminate coating.
W-FF2 Chipbreaker Programme
Chipbreaker for high feed finishing of steel and stainless steel. Wide chip control range in finishing and generates a superior surface quality.
Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-1,5 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
