Seco CNMG120408W-M6 TP2501 Turning Insert
The price shown is for the pack.
Available

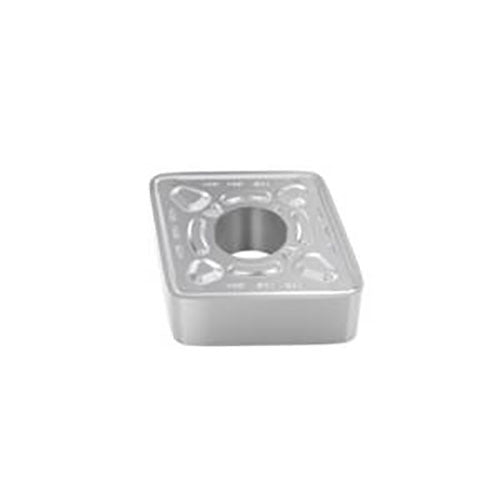

Genuine Seco 80° rhombic (diamond) turning insert, Grade TP2501 with M6 chipbreaker. This is the CNMG insert style in grade TP2501 (Carbide CVD), with the M6 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 3 options.
Key Specifications
| Grade | TP2501 |
|---|---|
| Substrate / Coating | Carbide CVD |
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | M6 |
| Insert Details | C shape code. G insert type, with hole and chipbreaker on both faces. TP2501 insert grade. |
About Grade TP2501
Carbide CVD. Duratomic® grade. Designed with high wear resistance and edge strength applicable in a wide range of turning applications in steels as well as many stainless steels and cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome). W-
About the M6 Chipbreaker
Strong double-sided chipbreaker, intended for high-feed semi-roughing and roughing of steel. A well-balanced design combining excellent chip control and relatively low cutting forces which provides reliable cutting action in both continuous as well as interrupted cuts. Indicative machining range: f = 0,3-1,0 mm/rev, ap = 1,0-7,0 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMG Insert Style - W-M6 Grade TP2501: CNMG120408W-M6 TP2501
SKU: A0117785 | Model: 02959849
