Seco CNMM190616-R5 TP0501 Turning Insert
The price shown is for the pack.
Available
Genuine Seco 80° rhombic (diamond) turning insert, Grade TP0501 with R5 chipbreaker. This is the CNMM insert style in grade TP0501, with the R5 chipbreaker. It is used on CNC and manual lathes for turning. This page lists 2 options.
Key Specifications
| Grade | TP0501 |
|---|---|
| Insert Shape | 80° rhombic (diamond) (ISO shape code C) |
| Chipbreaker | R5 |
| Insert Details | C shape code. M insert type, with hole and chipbreaker on one face only. TP0501 insert grade. |
About Grade TP0501
Duratomic® grade. A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons. Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
About the R5 Chipbreaker
Chipbreaker for single-sided inserts. Recommended for medium-roughing of steel. Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.
About Seco Turning Inserts
Anything is possible when it comes to our broad selection of general turning grades and chipbreakers. Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind: to boost the productivity and tool life in your turning applications. Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Turning Insert CNMM Insert Style - R5 Grade TP0501: CNMM190616-R5 TP0501
SKU: A0117260 | Model: 02960645

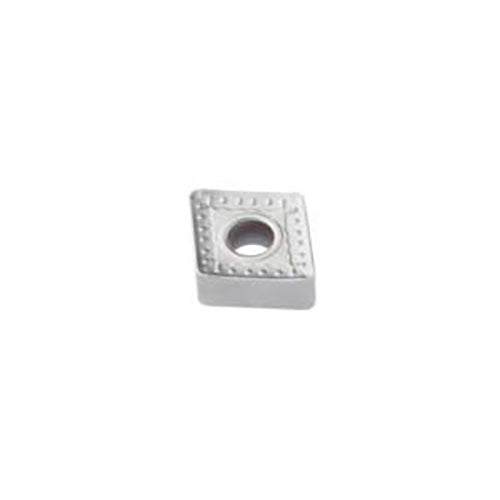

Seco Turning Insert C Shape Code 6.35 x 1.6 x 19.05mm M Insert Type - R5 Grade TP0501 ± 0.13/± 0.05mm Tolerance CNMM190616-R5,TP0501 10pcs
Turning Insert CNMM Insert Style - R5 Grade TP0501
C shape code.
M insert type, with hole and chipbreaker on one face only.
TP0501 insert grade.
TP0501 Insert Grade
Duratomic® grade.
A grade with an extremely high degree of heat and wear resistance for many steel applications such as in alloy steels and especially capable under dry conditions, but also applicable for demanding applications in cast irons.
Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).
R5 Chipbreaker Programme
Chipbreaker for single-sided inserts. Recommended for medium-roughing of steel.
Indicative machining range: f = 0,3–1,0 mm/rev, ap = 2–12 mm.
About Seco Turning Insert
Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
To boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
